🔧 Camry - Rear Brake Pads & Rotor Replacement

Replacing the rear brake pads and rotors restores smooth braking and prevents noise, vibration, and longer stopping distances. You’ll remove the rear calipers, swap the rotors, install new pads/hardware, and torque everything correctly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the car with jack stands before going under or removing wheels.
• ⚠️ Keep the car OFF and do not enter “READY” mode while wheels/brakes are apart.
• ⚠️ Do not press the brake pedal with a caliper removed (it can pop the piston out).
• ⚠️ Brake dust is harmful; use brake cleaner, not compressed air.
• ⚠️ Parking brake must be released for rotor removal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Lug wrench or 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 Nm range)
• 14mm socket
• 17mm socket
• Flathead screwdriver
• Caliper piston compression tool (or 6" C-clamp)
• Bungee cord
• Wire brush
• Rubber mallet
• M8 x 1.25 bolts (2 pieces, 25-40mm long)
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake rotors - Qty: 2
• Rear pad hardware/clip kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake parts cleaner - Qty: 1
• DOT 3 brake fluid - Qty: 1 (small bottle, as needed)

---

📋 Before You Begin

• Park on level ground, shift to Park, and chock the front wheels with wheel chocks.
• Release the parking brake completely (the rear rotors won’t come off if it’s applied).
• Crack loose the rear lug nuts with a lug wrench or 21mm socket before lifting.
• Pop the hood and check the brake fluid level. If it’s near “MAX,” remove a little with a clean syringe/turkey baster so it doesn’t overflow when you compress pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the rear

• Use a floor jack to lift the rear at the proper jack point.
• Place jack stands under solid support points and lower onto the stands.
• Remove the rear wheels using a lug wrench or 21mm socket.

Step 2: Remove the rear caliper (do not hang it by the hose)

• Turn the steering wheel is not needed for the rear; just get good access.
• Remove the caliper slide pin bolts using a 14mm socket.
• Lift the caliper off the bracket.
• Support the caliper with a bungee cord from the suspension spring/arm. Never let it dangle.

Step 3: Remove old pads and hardware

• Pull the brake pads out of the bracket by hand. Use a flathead screwdriver gently if stuck.
• Remove the stainless pad clips (hardware) from the bracket.
• Clean the bracket pad “rails” with a wire brush and spray with brake cleaner spray.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using a 17mm socket and a breaker bar.
• Set the bracket aside.
• On reassembly: Torque to 65 Nm (48 ft-lbs)

Step 5: Remove the rotor

• If the rotor is stuck, spray the hub/rotor center with brake cleaner spray and tap the rotor hat with a rubber mallet.
• If it still won’t move, thread two M8 x 1.25 bolts into the rotor’s jacking holes and tighten evenly to push the rotor off.
• Clean the wheel hub face with a wire brush so the new rotor sits flat. Flat hub prevents pedal pulsation.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner spray to remove protective oil.
• Install the rotor onto the hub.
• To keep it from wobbling while you work, hand-thread one lug nut on backwards (optional) and snug it using a lug wrench or 21mm socket.

Step 7: Reinstall the caliper bracket with new hardware

• Reinstall the bracket over the new rotor using a 17mm socket.
• Torque to 65 Nm (48 ft-lbs)
• Install the new pad clips/hardware into the bracket by hand.
• Apply a very thin film of brake caliper grease (silicone) where pads slide on the clips (not on the rotor or pad friction surface).

Step 8: Compress the rear caliper piston

• Use a caliper piston compression tool (or 6" C-clamp) to slowly push the caliper piston straight back in.
• Go slow and watch the brake fluid reservoir under the hood so it doesn’t overflow.
• If it won’t compress, stop and recheck parking brake is released.

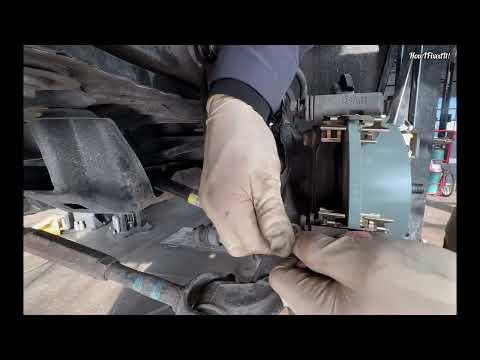

Step 9: Install new pads and refit the caliper

• Install the new brake pads into the bracket by hand.
• Put a small amount of brake caliper grease (silicone) on the caliper slide pins if they’re dry.
• Set the caliper back over the pads.
• Install the slide pin bolts using a 14mm socket.
• Torque to 25 Nm (18 ft-lbs)

Step 10: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench: Torque to 103 Nm (76 ft-lbs)

---

✅ After Repair

• Press the brake pedal slowly 10-15 times until it feels firm. This seats the pistons to the pads.
• Check brake fluid level and top off with DOT 3 brake fluid if needed.
• Apply and release the parking brake a few times to confirm normal feel.
• Bed-in (break-in) the pads: make 6-10 moderate stops from ~50 km/h to ~15 km/h with cool-down time between stops (no hard panic stops).
• Test drive at low speed first and listen for scraping/grinding.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹4,000-₹12,000 (parts only)

You Save: ₹4,000-₹6,000 by doing it yourself!

Shop labor rates vary in Panipat but often run ₹800-₹1,500/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
