🔧 Ignition Coils - Replacement

On your RAV4, the ignition coils sit on top of the engine and send high voltage to the spark plugs so the gasoline engine can run smoothly. Replacing them is a straightforward job, but because your RAV4 is a hybrid, you must treat the vehicle carefully and avoid the orange high-voltage cables.

Difficulty Level: Beginner | Estimated Time: 30-60 minutes

---

⚠️ Safety & Precautions

• ⚠️ Your RAV4 is a hybrid; do not touch, unplug, probe, or move any orange high-voltage cables or connectors.
• ⚠️ Turn the vehicle fully OFF and keep the key fob away from the vehicle so the engine cannot start unexpectedly.
• ⚠️ Let the engine cool before starting, because the ignition coils and valve cover can be hot.
• ⚠️ Disconnect the 12V negative battery cable before unplugging ignition coil connectors.
• ⚠️ Replace coils one at a time so connectors and coil positions do not get mixed up.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• 3/8-inch extension 6-inch
• Torque wrench inch-pound range
• Plastic trim removal tool
• Small flathead screwdriver
• Needle-nose pliers
• Compressed air duster
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1 small tube

Note: If one coil failed, you can replace only the bad coil. If the mileage is high or multiple coils are original, replacing all four as a set is often cleaner and prevents repeat labor.

---

📋 Before You Begin

• Park your RAV4 on level ground and set the parking brake.
• Press POWER once to turn the vehicle OFF. Make sure the dash is dark and the READY light is off.
• Move the key fob at least 15 feet away from the vehicle.
• Open the hood and let the engine cool for at least 20-30 minutes if it was recently driven.
• A torque wrench is a tool that tightens bolts to the correct tightness so they are not left loose or over-tightened.
• Dielectric grease is a non-conductive silicone grease used lightly inside the coil boot to help seal out moisture.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the 12V Battery Negative Cable

• Use a 10mm socket and 3/8-inch ratchet to loosen the 12V negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back into contact.
• Take a photo first.

Step 2: Remove the Engine Appearance Cover

• Use both hands to lift the plastic engine cover straight upward from its rubber mounting grommets.
• If it feels stuck, use a plastic trim removal tool gently near the mounting points.
• Set the cover aside where it will not get scratched or stepped on.

Step 3: Locate the Ignition Coils

• Look across the top of the engine for four identical ignition coils, each with an electrical connector and one small retaining bolt.
• Use compressed air duster to blow dirt away from the area around each coil before removal.
• Wipe loose debris with shop towels.
• Dirt must not fall into the spark plug tube.

Step 4: Unplug One Ignition Coil Connector

• Use your thumb to press the locking tab on the coil connector, then pull the connector straight back.
• If the tab is stiff, use a small flathead screwdriver to gently help release the lock.
• If the connector is hard to grip, use needle-nose pliers carefully on the connector body, not the wires.
• Do not pull on the wires.

Step 5: Remove the Coil Retaining Bolt

• Use a 10mm socket, 3/8-inch extension 6-inch, and 3/8-inch ratchet to remove the coil retaining bolt.
• Place the bolt somewhere safe so it does not fall into the engine bay.

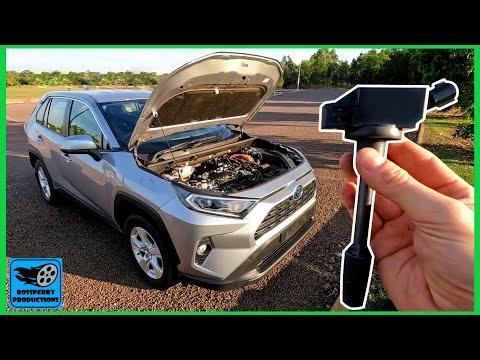

Step 6: Remove the Ignition Coil

• Grip the ignition coil body by hand and twist it gently left and right to break the rubber boot loose.
• Pull the coil straight upward out of the spark plug tube.
• Inspect the removed coil for oil, water, cracking, or burn marks.
• If oil is found inside the spark plug tube, the valve cover tube seals may also need repair.

Step 7: Prepare the New Ignition Coil

• Compare the new ignition coil to the old one by length, connector shape, and bolt tab position.
• Apply a very small amount of dielectric grease inside the rubber boot opening using the tube tip.
• Do not coat the metal electrical terminal or fill the boot with grease.
• A pea-size amount is plenty.

Step 8: Install the New Ignition Coil

• Push the new coil straight down into the spark plug tube by hand until it seats fully on the spark plug.
• Make sure the bolt hole lines up with the mounting point on the valve cover.
• Install the retaining bolt by hand first to avoid cross-threading.

Step 9: Tighten the Coil Retaining Bolt

• Use a 10mm socket, 3/8-inch extension 6-inch, and torque wrench inch-pound range to tighten the coil bolt.
• Torque to 10 Nm (89 in-lbs).
• Do not over-tighten; the valve cover threads can be damaged.

Step 10: Reconnect the Coil Connector

• Push the electrical connector onto the ignition coil until the locking tab clicks.
• Lightly tug the connector by hand to confirm it is locked.

Step 11: Repeat for the Remaining Coils

• If replacing more than one coil, repeat Steps 4-10 for each coil.
• Use the 10mm socket, 3/8-inch ratchet, 3/8-inch extension 6-inch, and torque wrench inch-pound range for each retaining bolt.
• Torque each coil bolt to 10 Nm (89 in-lbs).
• Work one coil at a time.

Step 12: Reinstall the Engine Cover

• Line up the engine cover with its rubber grommets.
• Press down firmly by hand over each mounting point until the cover seats securely.

Step 13: Reconnect the 12V Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and 3/8-inch ratchet to tighten the terminal clamp snugly.
• Torque to 5.4 Nm (48 in-lbs) if using a torque wrench on the terminal nut.

---

✅ After Repair

• Start your RAV4 and make sure the READY light comes on normally.
• Listen for smooth engine operation when the gasoline engine starts.
• Check that the check engine light is not flashing.
• If the check engine light was already on, a scan tool may be needed to clear stored misfire codes after confirming the repair.
• Take a short test drive and verify there is no shaking, hesitation, or misfire under light acceleration.
• After reconnecting the 12V battery, the auto-up window function may need relearning: fully close each affected window and hold the switch up for a few seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$550 for one coil, or $450-$950 for all four coils

DIY Cost: $60-$140 for one coil, or $220-$520 for all four coils

You Save: $120-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
