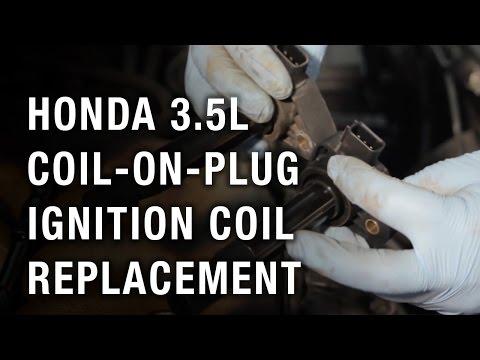

🔧 Odyssey - Ignition Coil Replacement

Replacing ignition coils on your Odyssey means removing the faulty coil-on-plug units from the top of the engine and installing new ones. Each ignition coil sends high voltage to one spark plug, so a weak coil can cause misfires, rough idle, poor fuel economy, or a flashing check engine light.

Difficulty Level: Beginner | Estimated Time: 30 minutes-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working; the cylinder head and exhaust areas can burn you.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils to reduce electrical short risk.
• ⚠️ Do not pull on wiring; press the connector tab and pull the connector body only.
• ⚠️ If the check engine light is flashing, avoid driving until repaired because raw fuel can damage the catalytic converter.
• ⚠️ Work on one coil at a time so connectors and parts do not get mixed up.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 10mm wrench
• Plastic trim removal tool
• Torque wrench rated in inch-pounds
• OBD2 scan tool
• Dielectric grease packet
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-6 as needed
• Dielectric grease - Qty: 1 packet

---

📋 Before You Begin

• Park your Odyssey on level ground and set the parking brake.
• Turn the ignition completely OFF and remove the key/fob from the vehicle area.
• Let the engine cool for at least 30 minutes if it was recently driven.
• Use an OBD2 scan tool to read misfire codes if available. Codes P0301-P0306 point to cylinders 1-6.
• A scan tool is a small device that plugs into the diagnostic port under the dash and reads trouble codes.
• Honda J35 cylinder layout: rear bank near firewall is cylinders 1-2-3, passenger to driver side; front bank near radiator is cylinders 4-5-6, passenger to driver side.
• Disconnect the negative battery cable using a 10mm wrench.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Hood and Locate the Ignition Coils

• Put on safety glasses and nitrile gloves.
• Open the hood and support it securely.
• The ignition coils sit directly on top of the spark plugs. They are black plastic units with one electrical connector and one 10mm hold-down bolt each.
• The front three coils are easier to see near the radiator. The rear three are closer to the firewall.
• Use good lighting here.

Step 2: Remove the Engine Cover if Needed

• If the plastic engine cover blocks access, lift it upward by hand or use a plastic trim removal tool to gently release it from the rubber mounting grommets.
• Set the cover aside where it will not be stepped on.
• A trim removal tool is a plastic pry tool that helps lift covers without scratching or cracking them.

Step 3: Disconnect the Negative Battery Cable

• Use a 10mm wrench to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• Wait 2 minutes before unplugging ignition connectors.

Step 4: Unplug the Ignition Coil Connector

• Choose one coil to replace first.
• Press the release tab on the coil electrical connector with your thumb.
• Pull the connector straight back by the plastic connector body.
• If it is stuck, gently wiggle it while pressing the tab. Do not pull on the wires.
• One coil at a time prevents mix-ups.

Step 5: Remove the Ignition Coil Bolt

• Use a 10mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to remove the coil hold-down bolt.
• Place the bolt in a small safe spot so it does not fall into the engine bay.

Step 6: Remove the Old Ignition Coil

• Grip the top of the ignition coil by hand.
• Twist it slightly left and right to loosen the rubber boot from the spark plug.
• Pull the coil straight upward and out of the spark plug tube.
• Inspect the old coil boot for oil, moisture, cracking, or carbon tracking. Carbon tracking looks like a thin black lightning-shaped line and can cause misfires.

Step 7: Prepare the New Ignition Coil

• Compare the new ignition coil to the old one. The connector shape, bolt tab, and rubber boot length should match.
• Apply a very small amount of dielectric grease inside the end of the rubber boot using the packet tip.
• Dielectric grease is a non-conductive silicone grease that helps seal moisture out of the boot.
• Do not fill the boot with grease. A light film is enough.

Step 8: Install the New Ignition Coil

• Slide the new ignition coil straight down into the spark plug tube by hand.
• Push gently until you feel the boot seat onto the spark plug.
• Make sure the bolt hole lines up with the mounting boss on the valve cover.

Step 9: Reinstall the Coil Bolt

• Start the 10mm bolt by hand for a few turns to prevent cross-threading.
• Use a 10mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to snug the bolt.
• Use a torque wrench rated in inch-pounds to tighten the bolt to Torque to 12 Nm (106 in-lbs).
• Do not overtighten. The mounting area can crack.

Step 10: Reconnect the Electrical Connector

• Push the coil connector onto the new ignition coil until it clicks.
• Lightly tug the connector body to confirm it is locked.

Step 11: Repeat for Additional Coils if Needed

• Repeat Steps 4-10 for any other ignition coils being replaced.
• Use the same 10mm socket, 3/8-inch drive ratchet, 3/8-inch drive 6-inch extension, and torque wrench rated in inch-pounds.
• If replacing all six coils, do the front bank first, then the rear bank.
• Take photos before unplugging connectors.

Step 12: Reinstall the Engine Cover

• Place the engine cover back over its mounting points.
• Press it down by hand until the rubber grommets seat fully.
• If needed, use a plastic trim removal tool only to guide the cover gently into position.

Step 13: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm wrench to tighten the clamp until it does not rotate by hand.
• Do not overtighten the battery terminal.

Step 14: Clear Codes and Test

• Plug the OBD2 scan tool into the diagnostic port under the driver-side dash.
• Turn the ignition ON without starting the engine.
• Use the scan tool menu to clear stored misfire codes.
• Start the engine and let it idle for 2-3 minutes.
• Listen for smooth idle and check that the check engine light does not flash.

---

✅ After Repair

• ✅ Test drive your Odyssey for 10-15 minutes with gentle acceleration.
• ✅ Recheck for stored or pending codes with the OBD2 scan tool.
• ✅ If the same cylinder misfire returns, inspect the spark plug, injector, wiring, and compression for that cylinder.
• ✅ If the idle feels rough right after reconnecting the battery, let the engine idle with accessories off for several minutes so the idle can relearn.
• ✅ Confirm the battery terminal is tight and all coil connectors are fully clicked in.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$750 (parts + labor)

DIY Cost: $45-$420 (parts only)

You Save: $175-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.5 hours.

---
