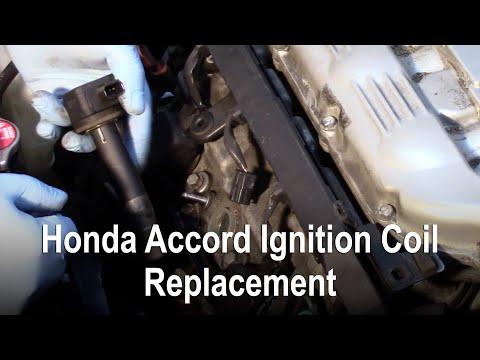

🔧 Accord - Ignition Coil Replacement

Replacing the ignition coils on your Accord is a straightforward top-of-engine repair. The ignition coils sit directly on top of the spark plugs and provide the high voltage needed for combustion; a failed coil can cause misfires, rough idle, poor acceleration, or a flashing check engine light.

Difficulty Level: Beginner | Estimated Time: 30-60 minutes

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before starting; the valve cover and turbo-area components can be very hot.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils to reduce the chance of electrical shorts.
• ⚠️ Do not pull on wiring harnesses. Pull only on connector bodies.
• ⚠️ If the check engine light is flashing, avoid driving until repaired because misfires can damage the catalytic converter.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• 3-inch extension
• 10mm wrench
• Torque wrench inch-pound range
• Plastic trim removal tool
• Compressed air can
• OBD2 scan tool
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1 small tube

Tip: Replace only the failed coil, or replace all four if they are high-mileage originals.

---

📋 Before You Begin

• Park your Accord on level ground and set the parking brake.
• Turn the ignition completely off and keep the key fob away from the vehicle.
• Open the hood and let the engine cool for at least 30 minutes.
• Use an OBD2 scan tool to read misfire codes if needed. Codes P0301-P0304 point to cylinders 1-4.
• A scan tool is a small plug-in device that reads diagnostic trouble codes from the car’s computer.
• Standing in front of the car, Honda cylinder numbering runs from the passenger side to the driver side: cylinder 1 is passenger-side, cylinder 4 is driver-side.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm wrench to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• Negative terminal is marked with minus.

Step 2: Remove the Engine Appearance Cover

• Use your hands to lift the plastic engine cover straight upward.
• If it feels stuck, use a plastic trim removal tool gently under the edge.
• The cover is held by rubber grommets, so no bolts are normally removed here.

Step 3: Locate the Ignition Coils

• Look along the top of the valve cover for four identical black ignition coils.
• Each coil has one electrical connector and one mounting bolt.
• Use a compressed air can to blow dirt away from the coil area before removal.
• This helps keep debris from falling into the spark plug tubes.

Step 4: Unplug the Coil Connector

• Press the locking tab on the ignition coil connector with your thumb.
• If the tab is tight, use a plastic trim removal tool to gently help release it.
• Pull the connector straight back by the plastic body.
• Do not pull on the wires.

Step 5: Remove the Ignition Coil Bolt

• Use a 10mm socket, 3-inch extension, and 3/8-inch ratchet to remove the coil hold-down bolt.
• Set the bolt somewhere safe so it does not fall into the engine bay.

Step 6: Remove the Old Ignition Coil

• Grip the top of the ignition coil by hand.
• Twist it gently left and right to break the rubber boot loose.
• Pull the coil straight upward out of the spark plug tube.
• A coil boot is the long rubber end that slips over the spark plug.
• Pull straight up to avoid tearing the boot.

Step 7: Prepare the New Ignition Coil

• Compare the new ignition coil to the old one by hand before installing it.
• Apply a tiny amount of dielectric grease inside the end of the rubber boot.
• Dielectric grease is a non-conductive silicone grease that helps seal out moisture and makes future removal easier.
• Do not pack the boot full of grease.

Step 8: Install the New Ignition Coil

• Push the new coil straight down into the spark plug tube by hand.
• You should feel the rubber boot seat over the spark plug.
• Line up the coil mounting tab with the bolt hole.

Step 9: Tighten the Ignition Coil Bolt

• Start the coil bolt by hand to avoid cross-threading.
• Use a 10mm socket, 3-inch extension, and torque wrench inch-pound range to tighten the bolt.
• Torque to 12 Nm (106 in-lbs)
• Do not overtighten; the valve cover threads can be damaged.

Step 10: Reconnect the Coil Connector

• Push the electrical connector onto the ignition coil by hand until it clicks.
• Give the connector a light tug by the plastic body to confirm it is locked.

Step 11: Repeat for Other Coils if Needed

• If replacing more than one coil, repeat Steps 4-10 for each ignition coil.
• Use the 10mm socket, 3-inch extension, and torque wrench inch-pound range for each coil bolt.
• Torque each coil bolt to 12 Nm (106 in-lbs)

Step 12: Reinstall the Engine Cover

• Set the engine cover back over its mounting points by hand.
• Press down firmly over each rubber grommet until the cover seats fully.

Step 13: Reconnect the Battery

• Place the negative battery cable back onto the negative battery post.
• Use a 10mm wrench to tighten the terminal clamp snugly.
• Do not overtighten the clamp.

Step 14: Clear Codes if Needed

• Plug the OBD2 scan tool into the diagnostic port under the driver-side dashboard.
• Turn the ignition on without starting the engine.
• Use the scan tool menu to clear stored misfire codes.
• If you do not clear codes, the light may turn off after several successful drive cycles.

---

✅ After Repair

• Start your Accord and let it idle for 2-3 minutes.
• Listen for smooth idle and make sure the engine does not shake.
• Check that all four coil connectors are fully clicked into place.
• Take a short test drive with gentle acceleration first.
• If the check engine light returns, rescan with the OBD2 scan tool and note which misfire code comes back.
• If the same cylinder still misfires, the spark plug, injector, wiring, or compression may need diagnosis.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$650 (parts + labor)

DIY Cost: $45-$320 (parts only)

You Save: $135-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
