🔧 Pilot - Ignition Coil Replacement

Replacing the ignition coils on your Pilot restores strong spark to the engine cylinders and can fix misfires, rough idle, poor acceleration, or a flashing check engine light. The 3.5L V6 uses one coil per cylinder, mounted directly on top of each spark plug.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a cool engine to avoid burns from the intake manifold and cylinder heads.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils to prevent accidental electrical shorts.
• ⚠️ Keep dirt and debris out of the spark plug wells. Debris can fall into the engine if the spark plugs are removed later.
• ⚠️ Do not pull on the coil wiring. Always release the connector tab and pull from the plastic connector body.
• ⚠️ If the check engine light is flashing, avoid driving until the repair is complete. A misfire can damage the catalytic converter.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• Torque wrench inch-pound range
• Trim clip removal tool
• Flathead screwdriver
• Needle-nose pliers
• Compressed air nozzle
• OBD2 scan tool
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-6
• Upper intake manifold gasket set - Qty: 1, if removing intake manifold for rear bank access
• Dielectric grease - Qty: 1 tube

---

📋 Before You Begin

• Park your Pilot on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Use a 10mm socket to disconnect the negative battery cable, then move the cable aside so it cannot touch the battery post.
• If replacing only one failed coil, use an OBD2 scan tool to read the misfire code first. Codes P0301-P0306 identify the cylinder number.
• An OBD2 scan tool is a small diagnostic tool that plugs into the vehicle’s diagnostic port to read and clear trouble codes.
• The front cylinder bank is easier to reach. The rear cylinder bank may require moving intake ducting and, depending on access, removing the upper intake manifold.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover

• Use your hands to lift the plastic engine cover straight upward from its rubber mounts.
• If the cover feels stuck, use a trim clip removal tool gently near the mounting points.
• Set the cover aside where it will not get scratched.
• Pull evenly, not at an angle.

Step 2: Disconnect the Negative Battery Cable

• Use a 10mm socket and 3/8-inch drive ratchet to loosen the negative battery terminal nut.
• Lift the negative cable off the battery post.
• Wrap the cable end with a clean rag or position it away from the battery so it cannot spring back.

Step 3: Locate the Ignition Coils

• Look on top of each valve cover for the ignition coils. Each coil has one electrical connector and one 10mm hold-down bolt.
• An ignition coil is the small electrical part that sends high voltage to the spark plug.
• There are six coils total on the 3.5L V6, one for each cylinder.

Step 4: Improve Access to the Coil Area

• Use a flathead screwdriver to loosen the air intake tube clamps if the intake tube blocks your hand access.
• Use needle-nose pliers to release any small hose clamps attached to the intake tube.
• Use a 10mm socket to remove any intake duct support fasteners if needed.
• Move the intake tube aside carefully without forcing wiring or hoses.

Step 5: Clean Around the Coil

• Put on safety glasses before using compressed air.
• Use a compressed air nozzle to blow dirt away from the top of the coil and spark plug well area.
• This helps stop debris from falling into the plug well when the coil is removed.

Step 6: Unplug the Ignition Coil Connector

• Press the connector release tab with your thumb or a flathead screwdriver.
• Pull the connector straight off the coil by the plastic body.
• Do not pull on the wires.
• If the connector is stuck, use a flathead screwdriver gently under the connector edge while pressing the release tab.
• Plastic tabs get brittle with age.

Step 7: Remove the Coil Hold-Down Bolt

• Use a 10mm socket, 3/8-inch drive extension, and 3/8-inch drive ratchet to remove the ignition coil bolt.
• Place the bolt in a small tray so it does not fall into the engine bay.

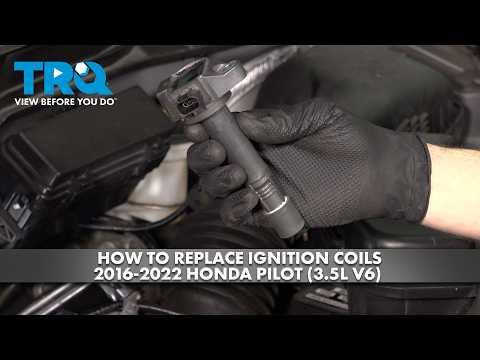

Step 8: Remove the Old Ignition Coil

• Grip the top of the coil firmly by hand.
• Twist the coil gently left and right to loosen the rubber boot from the spark plug.
• Pull the coil straight upward out of the spark plug well.
• If the boot sticks, continue twisting gently. Do not pry hard against the valve cover.

Step 9: Inspect the Old Coil and Spark Plug Well

• Check the removed coil boot for oil, coolant, cracking, carbon tracking, or burn marks.
• Carbon tracking looks like a thin black lightning-shaped line on the coil boot.
• If there is oil inside the spark plug well, the valve cover tube seal may be leaking and should be repaired before installing a new coil.
• Use a flashlight if needed to inspect the well.

Step 10: Prepare the New Ignition Coil

• Apply a small pea-sized amount of dielectric grease inside the end of the new coil boot.
• Dielectric grease is a non-conductive silicone grease that helps seal out moisture and makes future removal easier.
• Do not pack the boot full of grease.

Step 11: Install the New Ignition Coil

• Push the new ignition coil straight down into the spark plug well by hand.
• You should feel the boot seat onto the spark plug.
• Align the coil mounting ear with the bolt hole.

Step 12: Tighten the Coil Bolt

• Start the 10mm coil bolt by hand first to avoid cross-threading.
• Use a 10mm socket and torque wrench inch-pound range to tighten the coil bolt.
• Torque to 12 Nm (106 in-lbs)
• Do not overtighten. The valve cover threads can be damaged.

Step 13: Reconnect the Electrical Connector

• Push the coil electrical connector onto the new coil until it clicks.
• Lightly tug the connector by the plastic body to confirm it is locked.

Step 14: Repeat for Additional Coils

• Repeat Steps 5-13 for each ignition coil being replaced.
• Use the same 10mm socket, extension, ratchet, and torque wrench for each coil bolt.
• If replacing all six coils, keep the work area organized and replace one coil at a time.
• One-at-a-time prevents connector mix-ups.

Step 15: Rear Bank Access If Needed

• If your hand cannot reach the rear bank coils safely, remove the intake air duct using a flathead screwdriver and 10mm socket.
• If more room is still needed, use a 12mm socket and 3/8-inch drive ratchet to remove the upper intake manifold mounting bolts.
• Lift the upper intake manifold only enough to access the rear coils if possible, without stressing hoses or wiring.
• Replace the upper intake manifold gaskets if the manifold is fully removed.
• When reinstalling the upper intake manifold, use a 12mm socket and torque wrench.
• Torque to 22 Nm (16 ft-lbs)
• Tighten the intake manifold bolts evenly in a crisscross pattern.

Step 16: Reinstall Intake Parts

• Use a flathead screwdriver to tighten the air intake tube clamps securely.
• Use needle-nose pliers to reinstall any hose clamps removed earlier.
• Use a 10mm socket to reinstall any intake duct support fasteners.
• Make sure all hoses and wiring connectors are back in their original positions.

Step 17: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and 3/8-inch drive ratchet to tighten the terminal nut snugly.
• Do not overtighten the battery terminal.

Step 18: Reinstall the Engine Cover

• Line up the plastic engine cover with the rubber mounting posts.
• Press down firmly by hand until the cover snaps into place.

Step 19: Clear Codes and Test Run

• Plug the OBD2 scan tool into the diagnostic port under the driver side of the dashboard.
• Use the OBD2 scan tool to clear stored misfire codes.
• Start the engine and let it idle for several minutes.
• Listen for smooth idle and check that the check engine light does not return.

---

✅ After Repair

• ✅ Take your Pilot on a short 10-15 minute test drive with light acceleration first.
• ✅ Recheck for warning lights after the test drive.
• ✅ Use the OBD2 scan tool to confirm there are no pending misfire codes.
• ✅ If the same misfire code returns, inspect the spark plug, fuel injector, wiring, and compression for that cylinder.
• ✅ If the idle is rough immediately after battery disconnect, let the engine idle with all accessories off for a few minutes so the idle can stabilize.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$850 depending on how many coils are replaced and rear bank access

DIY Cost: $50-$420 parts only

You Save: $150-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
