🔧 Corolla - Ignition Coil Replacement

Replacing the ignition coils restores spark delivery and can fix misfires, rough idle, hesitation, and flashing check-engine lights. On your Corolla, the coils sit on top of the spark plugs, so access is straightforward and the job is usually quick.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Let the engine cool completely before starting.
• Turn the ignition off and remove the key.
• Disconnect the negative battery cable with a 10mm wrench before unplugging coils.
• Do not pull on the coil wiring harness; use the connector tab.
• Keep dirt and oil out of the spark plug wells.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Short extension
• 10mm wrench
• Trim clip tool
• Torque wrench
• Dielectric grease
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil set - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully.
• Disconnect the negative battery cable before touching the ignition coils.
• Work on one coil at a time so the connectors do not get mixed up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm wrench to loosen the negative battery terminal.
• Remove the cable and set it aside so it cannot spring back.

Step 2: Remove the engine cover

• If equipped, pull up on the engine cover by hand to release it from its rubber mounts.
• Set it aside in a clean area.

Step 3: Disconnect each ignition coil

• Use your fingers to press the locking tab on each coil connector.
• Pull the connector straight off the coil.
• Do not pry the connector sideways.

Step 4: Remove the ignition coils

• Use a 10mm socket, ratchet, and short extension to remove the coil hold-down bolts.
• Lift each coil straight up out of the spark plug well.
• If a coil sticks, twist it gently while pulling upward.

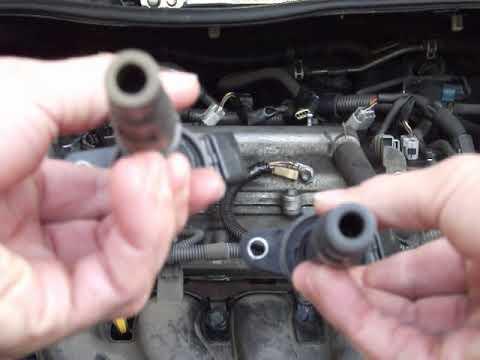

Step 5: Install the new ignition coils

• Apply a small amount of dielectric grease inside each coil boot.
• Push each new coil straight down onto the spark plug until fully seated.
• Install the hold-down bolts by hand first, then tighten with a torque wrench.
• Torque to 8 Nm (71 ft-lbs).

Step 6: Reconnect the wiring

• Push each connector onto its coil until it clicks.
• Lightly tug each connector to make sure it is locked in place.

Step 7: Reinstall the engine cover and battery cable

• Press the engine cover back onto its mounts.
• Reconnect the negative battery cable with a 10mm wrench.
• Tighten snugly, but do not overtighten.

---

✅ After Repair

• Start the engine and listen for smooth idle.
• Check that the check-engine light is off.
• If the light was on before the repair, clear codes with a scan tool.
• If the engine still misfires, the spark plugs may also need replacement.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$480 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $140-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
