🔧 CX-5 - Ignition Coil Replacement

This repair replaces the ignition coils on your CX-5. Ignition coils create the high voltage needed to fire the spark plugs, and a weak coil can cause misfires, rough idle, poor fuel economy, or a flashing check engine light.

Difficulty Level: Beginner | Estimated Time: 30-60 minutes

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before working. The turbocharged 2.5L engine can stay hot for a long time.
• ⚠️ Disconnect the negative battery terminal before unplugging ignition coils to reduce the chance of electrical shorts.
• ⚠️ Do not pull on wiring harnesses. Press the connector lock tab and pull from the connector body.
• ⚠️ Keep dirt and debris away from the spark plug wells. Anything that falls in can cause engine damage.
• ⚠️ If the check engine light is flashing, avoid driving until the misfire is fixed. A flashing light can indicate catalytic converter damage risk.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 3/8-inch ratchet
• 3/8-inch 6-inch extension
• Torque wrench inch-pound range
• Plastic trim removal tool
• Needle-nose pliers
• Compressed air nozzle
• OBD2 scan tool
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1 tube

Tip: If one coil failed, you can replace only that coil. If mileage is high, replacing all four can prevent repeat labor.

---

📋 Before You Begin

• Park your CX-5 on level ground, shift to Park, and apply the parking brake.
• Turn the ignition off and keep the key fob away from the vehicle.
• Let the engine cool for at least 30 minutes.
• Use an OBD2 scan tool to read misfire codes before removing parts. Codes like P0301, P0302, P0303, or P0304 identify the cylinder with the misfire.
• An OBD2 scan tool is a small diagnostic reader that plugs into the vehicle’s diagnostic port to read and erase trouble codes.
• Disconnect the negative battery cable before unplugging the coils.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Read the Misfire Code

• Use the OBD2 scan tool and plug it into the diagnostic port under the driver side dash.
• Turn the ignition on without starting the engine.
• Read and write down any codes. Cylinder layout is counted from the front pulley side of the engine toward the transmission side.
• Common codes are P0301 for cylinder 1, P0302 for cylinder 2, P0303 for cylinder 3, and P0304 for cylinder 4.
• Write codes down before clearing.

Step 2: Disconnect the Battery

• Open the hood and locate the battery.
• Use a 10mm socket and 3/8-inch ratchet to loosen the negative battery terminal clamp.
• Move the negative cable aside so it cannot spring back onto the battery post.

Step 3: Remove the Engine Cover

• Grip the plastic engine cover with both hands and pull straight upward.
• If it feels stuck, use a plastic trim removal tool to gently lift near the rubber mounting points.
• Set the cover aside where it will not be stepped on.

Step 4: Locate the Ignition Coils

• The ignition coils sit on top of the engine, one above each spark plug.
• Each coil has one electrical connector and one hold-down bolt.
• Use the misfire code from Step 1 to identify the coil to replace.
• Work on one coil at a time.

Step 5: Clean Around the Coil

• Put on safety glasses.
• Use a compressed air nozzle to blow dirt away from the coil and spark plug well area.
• This helps prevent grit from falling into the spark plug tube when the coil is removed.

Step 6: Unplug the Coil Connector

• Press the locking tab on the electrical connector with your thumb.
• If the tab is hard to press, use needle-nose pliers gently on the connector body only.
• Pull the connector straight off the ignition coil.
• Do not yank the wires.

Step 7: Remove the Coil Hold-Down Bolt

• Use an 8mm socket, 3/8-inch 6-inch extension, and 3/8-inch ratchet to remove the ignition coil hold-down bolt.
• Place the bolt somewhere safe so it does not fall into the engine bay.

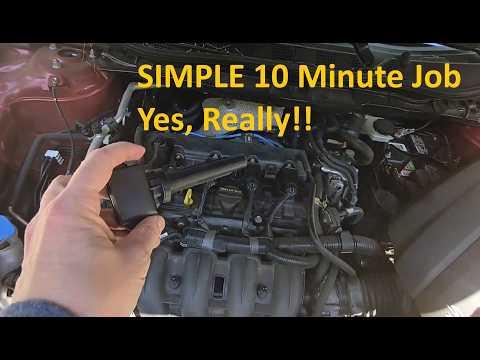

Step 8: Remove the Old Ignition Coil

• Twist the coil gently left and right by hand to loosen the rubber boot.
• Pull the coil straight upward.
• If it resists, keep twisting gently while pulling. Do not pry against the plastic coil body.
• Inspect the old coil boot for oil, coolant, cracks, or carbon tracking. Carbon tracking looks like thin black lightning-shaped lines.

Step 9: Prepare the New Ignition Coil

• Apply a very small amount of dielectric grease inside the end of the rubber coil boot.
• Dielectric grease is a non-conductive silicone grease that helps seal moisture out and prevents the boot from sticking to the spark plug.
• Do not pack the boot full of grease.

Step 10: Install the New Ignition Coil

• Push the new ignition coil straight down into the spark plug well by hand.
• You should feel the boot seat onto the spark plug.
• Reinstall the hold-down bolt by hand first to avoid cross-threading.
• Use the 8mm socket, 3/8-inch 6-inch extension, and torque wrench inch-pound range to tighten the bolt.
• Torque to 8-10 Nm (71-89 in-lbs)

Step 11: Reconnect the Coil Connector

• Push the electrical connector onto the new coil until it clicks.
• Gently tug the connector body by hand to make sure it is locked.

Step 12: Repeat If Replacing More Coils

• If replacing all four coils, repeat Steps 5 through 11 for each coil.
• Use the same 8mm socket, 3/8-inch 6-inch extension, and torque wrench inch-pound range for each hold-down bolt.
• Torque each ignition coil bolt to 8-10 Nm (71-89 in-lbs)

Step 13: Reinstall the Engine Cover

• Line up the engine cover with the rubber mounting grommets.
• Press down firmly by hand until the cover snaps into place.

Step 14: Reconnect the Battery

• Place the negative battery terminal back onto the battery post.
• Use a 10mm socket and 3/8-inch ratchet to tighten the terminal clamp.
• Make it snug. Do not overtighten the soft battery terminal.

Step 15: Clear Codes and Test

• Use the OBD2 scan tool to clear the stored misfire codes.
• Start the engine and let it idle.
• Listen for smooth running and check that the check engine light stays off.

---

✅ After Repair

• Drive your CX-5 for 10-15 minutes with light throttle first, then normal acceleration.
• If the check engine light returns, use the OBD2 scan tool to read the new code before replacing more parts.
• If the misfire moved after swapping coils between cylinders, the coil is confirmed faulty.
• If the same cylinder still misfires after a new coil, inspect the spark plug, injector, compression, and wiring next.
• Reset the clock and one-touch window function if needed after the battery disconnect.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$500 for one coil, or $450-$900 for all four coils

DIY Cost: $45-$120 for one coil, or $180-$480 for all four coils

You Save: $100-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
