🔧 Civic - Front Windshield Wiper Replacement

This is an easy first repair. Replace both front blades together using a 26-inch driver blade and an 18-inch passenger blade.

Difficulty Level: Beginner | Estimated Time: 10-15 minutes

Fresh blades are cheap. Scratched glass definitely isn’t.

---

⚠️ Safety & Precautions

• ⚠️ Keep control of each spring-loaded wiper arm. A bare arm can snap down and crack the windshield.
• ⚠️ Place a folded towel on the glass while each blade is removed.
• ⚠️ Turn the ignition and wipers off before beginning.
• ⚠️ Don’t operate the wipers until both new blades are securely installed.

---

🔧 Required Tools

You’ll need the following tools for this repair:

• Medium microfiber towel
• Nitrile work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 26-inch driver-side windshield wiper blade - Qty: 1
• 18-inch passenger-side windshield wiper blade - Qty: 1

Replace both blades as a pair. Beam-style blades are my first choice for Haryana’s heat, dust, and heavy monsoon rain because their one-piece design applies pressure evenly across the glass.

---

📋 Before You Begin

• Park your Civic on level ground and switch off the ignition.
• Make sure the wiper switch is fully off.
• Clean loose dirt from the windshield with the medium microfiber towel.
• Lay the folded towel below the first wiper arm before removing its blade.
• Change one blade at a time so the other remains available as a visual reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the Driver-Side Wiper Arm

• Use your gloved hand to lift the driver-side arm away from the windshield.
• Stop when the arm remains raised without being forced.
• Place the folded medium microfiber towel on the windshield beneath the arm.

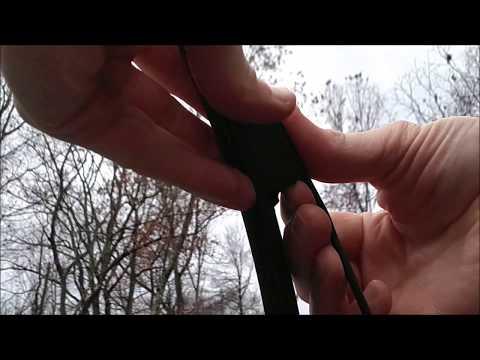

Step 2: Rotate the Old Blade

• Use your gloved hand to rotate the blade until it sits roughly perpendicular to the arm.
• Locate the small locking tab where the blade connects to the curved end of the arm.
• The curved attachment is commonly called a J-hook because its end resembles the letter J.

Step 3: Release the Old Driver Blade

• Use your thumb to press the locking tab.
• While holding the tab, slide the blade down toward the base of the wiper arm.
• Move the blade around the J-hook and remove it completely.
• Lower the bare arm gently onto the folded towel. Never leave it standing unattended.

Step 4: Install the New 26-Inch Blade

• Use your gloved hand to align the new blade’s adapter with the open end of the J-hook.
• Feed the hook through the adapter opening.
• Slide the blade upward along the arm until the adapter clicks into place.
• Pull gently in the opposite direction to confirm the lock is engaged.
• A solid click beats finding out during a downpour.

Step 5: Lower the Driver Wiper

• Use both hands to rotate the blade until its rubber edge faces the windshield.
• Remove the folded medium microfiber towel.
• Lower the arm slowly until the blade rests against the glass.

Step 6: Replace the Passenger Blade

• Use the same procedure to remove the passenger-side blade.
• Protect the glass with the folded medium microfiber towel.
• Install the new 18-inch passenger blade and listen for the locking click.
• Pull gently on the blade to verify that it can’t slide off the arm.
• Lower the arm carefully onto the windshield.

Step 7: Check Blade Position

• Use your gloved hands to confirm both blades lie flat against the glass.
• Check that neither blade is upside down, twisted, or touching the windshield trim.
• Remove the protective covers from the blade rubber if the new blades include them.

---

✅ After Repair

• Apply windshield washer fluid and operate the wipers at low speed.
• Confirm both blades sweep smoothly without striking each other or the windshield trim.
• Check for streaking, skipping, chatter, or a blade lifting away from the glass.
• If a blade slides inside its connector, switch the wipers off immediately and reinstall it until the lock clicks.
• Clean the blade edges with a damp microfiber towel if light streaks remain.

---

💰 DIY vs Shop Cost

Shop Cost: $35-$80 equivalent, including blades and installation

DIY Cost: $7-$40 equivalent for both blades

You Save: Approximately $20-$40 by doing it yourself!

Shop labor rates vary. This repair usually takes a shop approximately 0.1-0.2 hour.

---
