🔧 Camry - Front Window Regulator Replacement

This guide covers replacing the front window regulator on your Camry (driver or passenger side). You’ll remove the inner door panel, unbolt the glass, and swap the regulator and motor assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working. Your door has a side airbag; this reduces any risk of accidental deployment.
• ⚠️ Wear safety glasses and gloves. Door edges and glass can be sharp.
• ⚠️ Support the glass securely when unbolted so it does not drop and shatter.
• ⚠️ Do not turn the ignition on with airbag or door wiring unplugged.
• ⚠️ Work in a dry area. Avoid rain or moisture getting into the open door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 1/4" drive ratchet
• 🧰 1/4" drive extension (3–6")
• 🧰 Phillips #2 screwdriver
• 🧰 Flathead screwdriver (small)
• 🧰 Trim removal tool set (plastic)
• 🧰 Needle-nose pliers
• 🧰 Panel clip removal tool
• 🧰 Torx T30 screwdriver
• 🧰 Torque wrench (inch-lb, 30–100 in-lb range)
• 🧰 Torque wrench (ft-lb, 5–25 ft-lb range)
• 🧰 Painter's tape (wide)
• 🧰 Work light or flashlight
• 🧰 Magnetic pickup tool
• 🧰 Clean rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front window regulator and motor assembly (driver side) - Qty: 1
• 🔩 Front window regulator and motor assembly (passenger side) - Qty: 1 (if doing both)
• 🔩 Front door vapor barrier butyl tape/sealant - Qty: 1 roll
• 🔩 Door panel push clips - Qty: 10–15 (have spares)
• 🔩 Plastic sheet or masking film - Qty: 1 (if existing vapor barrier is damaged)

---

📋 Before You Begin

• Park the Camry on level ground, shift to Park, and set the parking brake.
• Lower the affected window halfway using the switch (if it still moves). This will line up the glass mounting bolts with the access holes later.
• Turn ignition OFF, remove the key (or switch car off completely if push-button).
• Open the affected front door fully so you have room to work.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot touch.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove trim covers and visible screws

• Use the trim removal tool to gently pry off the small plastic cover behind the interior door handle (it hides a screw).
• Use a trim removal tool to pop up the window switch panel from the armrest, then unplug its connectors by hand.
• Use a Phillips #2 screwdriver to remove the screw behind the interior handle.
• Use a Phillips #2 screwdriver to remove the screw located under the window switch panel opening in the armrest.

Step 2: Remove the door panel

• Slide the interior handle bezel (the trim around the handle) forward slightly and pull it away using your hands and a trim removal tool.
• Starting at the bottom edge of the door, use a trim removal tool or panel clip removal tool to pop the door panel clips free. Work your way around the sides.
• Lift the door panel straight up and off the top window ledge by hand.
• Unplug any remaining connectors (courtesy light, mirror control) by hand and set the door panel aside on a clean surface.
• Don’t yank; clips and wires break easily.

Step 3: Remove the vapor barrier carefully

• The vapor barrier is the thin plastic sheet stuck to the door with sticky butyl glue.
• Use your hands and a trim removal tool to gently peel the plastic back from the door metal, starting at a corner.
• Try to keep the adhesive intact; you’ll reuse or refresh it with new butyl tape.
• Peel it back enough to expose the full window regulator and access holes. Do not tear near the side airbag area (usually mid-door).

Step 4: Secure the glass

• If the window is not already around halfway up, you may need to temporarily reconnect the window switch and battery, move the window to mid-height, then disconnect again. Use the 10mm socket to reconnect/disconnect the battery as needed.
• Once the glass is at mid-height and you can see its mounting bolts through the access holes, use painter’s tape on the outside of the door frame to hold the glass in place (several strips along the top edge).
• Use lots of tape; glass is heavy.

Step 5: Detach the glass from the regulator

• Look through the access holes to find the two glass clamp bolts on the regulator.
• Use a 10mm socket and ratchet to loosen (do not fully remove) the two clamp bolts that hold the glass to the regulator sliders.
• Gently lift the glass by hand to free it from the clamps.
• Raise the glass fully into the top of the door frame by hand and secure it with more painter’s tape to the door frame, inside and outside.

Step 6: Disconnect wiring from the regulator motor

• Locate the window motor electrical connector on the regulator assembly.
• Press the lock tab and unplug the connector by hand. Use needle-nose pliers only if the tab is stubborn, and be gentle.

Step 7: Remove the old window regulator and motor

• Locate all the regulator and motor mounting bolts (usually 6–8 bolts around the door inner panel).
• Use a 10mm socket, extension, and ratchet to remove these bolts. Keep them organized.
• Some Camry trims also have a Torx screw on the motor; if present, use a Torx T30 screwdriver to remove it.
• Carefully maneuver the regulator and motor assembly out through the large access opening in the door by hand. Tilt and rotate as needed.

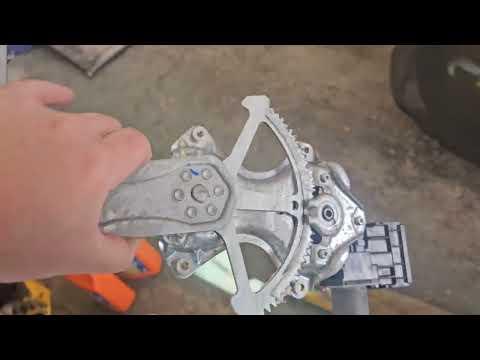

Step 8: Install the new window regulator and motor

• Compare the old and new regulator assemblies to make sure the mounting points and connector match.
• Feed the new regulator and motor assembly into the door through the same access opening by hand.
• Align the mounting holes of the regulator with the holes in the door.
• Install all regulator and motor bolts by hand first, then tighten them evenly with a 10mm socket and ratchet.
• Using a inch-lb torque wrench with a 10mm socket, tighten regulator and motor bolts to 8 N·m (71 in-lb).

Step 9: Reattach the glass to the new regulator

• Reconnect the motor connector by hand until it clicks.
• Temporarily reconnect the window switch and the negative battery cable using a 10mm socket.
• With one hand supporting the glass, use the window switch to lower the regulator clamps until they line up with the glass (go slowly).
• Carefully lower the glass into the clamps by hand. Make sure it sits evenly in both clamps.
• Use a 10mm socket to snug the two glass clamp bolts.
• Torque the glass clamp bolts with a inch-lb torque wrench and 10mm socket to 10 N·m (89 in-lb).
• Test the window up and down a few times using the switch. Listen for grinding and watch for smooth movement.
• Once satisfied, turn ignition off and disconnect the negative battery cable again with the 10mm socket before reassembling.

Step 10: Reinstall the vapor barrier

• Press the original vapor barrier back into place by hand, making sure all edges seal against the door metal.
• If the butyl adhesive is weak, add new vapor barrier butyl tape along the edges.
• Ensure all cable pass-throughs and holes are sealed to keep water out of the interior.

Step 11: Reinstall the door panel

• Reconnect all door panel electrical connectors by hand (window switch, courtesy light, mirror controls).
• Hook the top of the door panel over the window ledge first, then push it down gently into place by hand.
• Align the plastic clips with the holes and press around the edges with your palms to snap them in. Replace any broken clips as needed using your hands or a panel clip removal tool.
• Reinstall the screw in the armrest and behind the interior handle using a Phillips #2 screwdriver. Tighten to snug, about 3 N·m (27 in-lb) with a inch-lb torque wrench if desired.
• Reinstall the window switch panel by snapping it back into place by hand.
• Reinstall the small plastic trim cover behind the interior handle using your hands.

Step 12: Final checks and battery reconnect

• Reconnect the negative battery terminal with a 10mm socket and tighten to 5 N·m (44 in-lb).
• Turn ignition ON and operate the window several times to confirm smooth travel and no abnormal noises.
• Check that the door locks, mirror controls, and door handle all work correctly.
• Listen for any rattles when you close the door; if you hear one, a clip or harness may need repositioning.

---

✅ After Repair

• Test auto-up/auto-down function. If the auto function doesn’t work, reinitialize:
  • Turn ignition ON.
  • Hold the window switch to fully lower the window; keep holding for 2 seconds.
  • Then pull the switch to fully raise the window; keep holding for 2 seconds.
• Verify the window seals correctly against the weatherstrip. Spray a little water on the glass and check for leaks inside.
• Make sure there are no warning lights on the dash related to doors or windows.
• Clean fingerprints from the glass and door panel with a clean rag.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 per front window (parts + labor)

DIY Cost: $120–$220 per front window (parts + basic supplies)

You Save: $230–$330 per window by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop about 1.0–1.5 hours per door.

---
