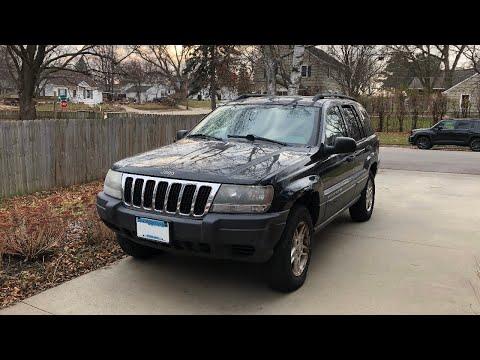

🔧 Grand Cherokee - Front Window Regulator Replacement

This repair replaces the front door window regulator, which is the cable-and-rail mechanism that moves the glass up and down. On your Grand Cherokee, the front regulator is serviced inside the door after removing the trim panel, moisture barrier, speaker, and glass fasteners.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce risk of short circuits or airbag-related faults.
• ⚠️ Support the window glass with painter’s tape before removing regulator fasteners. The glass can drop suddenly and break.
• ⚠️ Wear gloves. The inside of the door has sharp metal edges.
• ⚠️ Do not slam the door while the trim panel or glass is unsecured.
• ⚠️ If replacing both front regulators, complete one door at a time so the other side can be used as a reference.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 7mm socket
• Ratchet
• 6-inch extension
• Torx T20 screwdriver
• Torx T25 screwdriver
• Trim panel removal tool
• Small flathead screwdriver
• Needle-nose pliers
• Painter’s tape
• Torque wrench inch-pound
• Torque wrench foot-pound
• Plastic pry tool set
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front left window regulator assembly - Qty: 1 if replacing driver side
• Front right window regulator assembly - Qty: 1 if replacing passenger side
• Door trim panel clips - Qty: 6-10 recommended per door
• Butyl sealing tape - Qty: 1 roll if moisture barrier seal is damaged

---

📋 Before You Begin

• Park your Grand Cherokee on level ground and set the parking brake.
• Lower the affected front window about halfway if it still moves. This helps access the glass clamp bolts.
• If the window does not move, you may need to carefully move the glass by hand after the door panel is removed.
• Turn the ignition off and remove the key/fob from the vehicle.
• Use a 10mm socket to disconnect the negative battery cable. Wait at least 2 minutes before unplugging door electrical connectors.
• A trim panel removal tool is a flat plastic pry tool used to pop clips loose without scratching the door panel.
• Butyl sealing tape is a sticky black rope-style sealant used to reseal the door moisture barrier.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Front Door Switch Panel

• Use a plastic pry tool to gently lift the front door switch panel from the armrest.
• Use a small flathead screwdriver to press the connector lock tabs, then unplug the window switch connector.
• Set the switch panel somewhere safe so it does not get scratched.
• Tip: Pry slowly to avoid broken tabs.

Step 2: Remove Door Panel Screws

• Use a small flathead screwdriver to remove any small screw covers in the pull handle or door handle area.
• Use a Torx T20 screwdriver or Torx T25 screwdriver to remove the exposed trim screws, depending on the screw head fitted.
• Use a 7mm socket to remove the lower door panel screws if equipped.
• Keep all screws grouped by location so reassembly is easier.

Step 3: Release the Door Trim Panel

• Use a trim panel removal tool at the lower edge of the door panel.
• Pop the plastic retaining clips loose one at a time around the sides and bottom.
• Lift the door panel straight upward to unhook it from the window ledge.
• Hold the panel close to the door while disconnecting remaining wiring.

Step 4: Disconnect Door Cables and Connectors

• Use a small flathead screwdriver to release the door handle cable retainer.
• Disconnect the interior door handle cable from the lever.
• Use a small flathead screwdriver to release any remaining electrical connector locks.
• Place the door panel on a clean blanket to protect the leather and trim.

Step 5: Remove the Speaker and Moisture Barrier

• Use a 7mm socket or 8mm socket to remove the front door speaker screws.
• Unplug the speaker connector and remove the speaker.
• Carefully peel back the plastic moisture barrier using your fingers and a plastic pry tool.
• If the butyl seal stretches or tears, use butyl sealing tape during reassembly.
• Tip: Do not tear the moisture barrier.

Step 6: Support the Window Glass

• Reconnect the window switch temporarily if the battery is still connected and the motor works.
• Move the glass until the glass clamp bolts are visible through the door access openings.
• Turn the ignition off again and use a 10mm socket to disconnect the negative battery cable.
• Use painter’s tape to tape the glass to the upper door frame from both sides of the glass.
• Use at least three long strips of painter’s tape over the top of the door frame.

Step 7: Loosen the Window Glass Clamp Bolts

• Use a 10mm socket to loosen the regulator glass clamp bolts through the access holes.
• Do not fully remove the clamp bolts unless the replacement regulator design requires it.
• Slide the glass upward by hand until it is fully closed.
• Add more painter’s tape to hold the glass securely in the fully raised position.

Step 8: Unplug the Window Motor

• Use a small flathead screwdriver to release the window motor connector lock tab.
• Unplug the window motor connector from the regulator motor.
• Move the harness aside so it will not catch when removing the regulator.

Step 9: Remove the Old Window Regulator

• Use a 10mm socket to remove the regulator rail bolts from the inner door panel.
• Use a 10mm socket to remove the window motor mounting bolts if the motor/regulator is separate.
• Support the regulator with one hand while removing the last bolt.
• Angle the regulator assembly through the large door opening and remove it from the door.
• Tip: Take a photo before removal.

Step 10: Install the New Window Regulator

• Feed the new regulator assembly into the door through the large access opening.
• Align the regulator rails and motor mounting points with the factory holes.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket to snug the regulator bolts evenly.
• Use a torque wrench and 10mm socket to tighten regulator fasteners to Torque to 10 Nm (89 in-lbs).

Step 11: Attach the Glass to the New Regulator

• Carefully remove only enough painter’s tape to lower the glass by hand.
• Guide the glass into the regulator clamps evenly.
• Make sure the glass sits fully in both clamps and is not tilted.
• Use a torque wrench and 10mm socket to tighten the glass clamp bolts to Torque to 8 Nm (71 in-lbs).
• Reapply painter’s tape lightly until testing is complete.

Step 12: Test Window Operation

• Plug in the window motor connector by hand until it clicks.
• Temporarily reconnect the negative battery cable using a 10mm socket.
• Reconnect the window switch by hand.
• Turn ignition to RUN without starting the engine.
• Operate the window slowly up and down while watching the glass track.
• If the glass binds, stop immediately and loosen the 10mm clamp bolts to realign it.

Step 13: Initialize the Auto-Up/Auto-Down Window

• Use the window switch to lower the glass fully.
• Hold the switch down for 2 extra seconds after the glass reaches the bottom.
• Raise the glass fully.
• Hold the switch up for 2 extra seconds after the glass reaches the top.
• Repeat once if auto-up or auto-down does not work on the first try.

Step 14: Reinstall the Moisture Barrier and Speaker

• Disconnect the negative battery cable again using a 10mm socket before final reassembly.
• Press the moisture barrier back onto the door using your fingers.
• Use butyl sealing tape anywhere the original seal no longer sticks.
• Plug in the speaker connector by hand.
• Use a 7mm socket or 8mm socket to reinstall the speaker screws.
• Use a torque wrench to tighten speaker screws to Torque to 2 Nm (18 in-lbs).

Step 15: Reinstall the Door Trim Panel

• Reconnect the door handle cable by hand and lock its retainer in place.
• Reconnect all electrical connectors by hand until each one clicks.
• Hang the top of the door panel over the window ledge.
• Line up the door panel clips with the holes in the door.
• Press around the edges with your palm until all clips snap in.

Step 16: Reinstall Screws and Switch Panel

• Use a Torx T20 screwdriver or Torx T25 screwdriver to reinstall the handle-area screws.
• Use a 7mm socket to reinstall the lower door panel screws if equipped.
• Tighten trim screws gently to Torque to 2 Nm (18 in-lbs).
• Plug the switch panel connector in by hand.
• Press the switch panel back into the armrest until it snaps flush.

Step 17: Final Battery Connection

• Use a 10mm socket to reconnect the negative battery cable.
• Use a torque wrench and 10mm socket to tighten the battery terminal nut to Torque to 5 Nm (44 in-lbs).
• Turn ignition on and repeat the window initialization if needed.

---

✅ After Repair

• ✅ Run the window fully up and down at least 5 times.
• ✅ Confirm auto-up, auto-down, and pinch protection work correctly.
• ✅ Check that the glass seals evenly at the top and does not tilt forward or rearward.
• ✅ Listen for scraping, popping, or cable noise inside the door.
• ✅ Check door lock, mirror switch, speaker, courtesy light, and memory switch functions if equipped.
• ✅ Spray water lightly around the window area and confirm no water enters past the moisture barrier.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 per front door (parts + labor)

DIY Cost: $90-$250 per front door (parts only)

You Save: $260-$400 per door by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours per door.

---
