🔧 Accord - Front Window Regulator Replacement

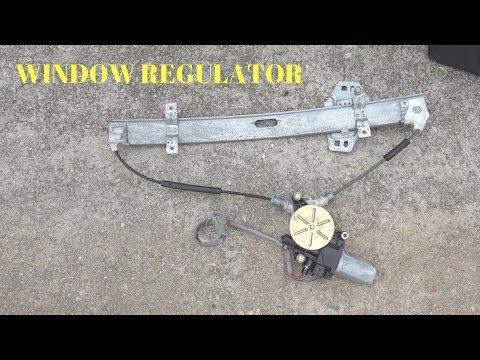

The front window regulator is the scissor/track mechanism inside the front door that moves the glass up and down. On your Accord, the front regulator is serviced inside the door and the window glass must be secured before the regulator is removed.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring.
• ⚠️ Support the glass before removing regulator bolts. Unsupported glass can drop and break.
• ⚠️ Wear safety glasses and gloves when working inside the door. Door metal edges can be sharp.
• ⚠️ Do not turn the ignition ON with door connectors unplugged unless instructed. This may set warning codes.
• ⚠️ Keep fingers clear of the regulator tracks during testing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension 6-inch
• Phillips #2 screwdriver
• Trim clip removal tool
• Plastic pry tool set
• Pick tool 90-degree
• Needle-nose pliers 6-inch
• Torque wrench 5-60 Nm
• Painter’s tape 1-inch
• Glass suction cup handle 4-inch
• Magnetic parts tray
• Shop towel pack
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator with motor - Qty: 1 per door
• Front door panel trim clips - Qty: As needed
• Vapor barrier butyl sealant - Qty: 1 roll if original sealant is damaged

---

📋 Before You Begin

• Park your Accord on level ground and set the parking brake.
• Turn the ignition ON and lower the affected front window until the glass mounting bolts are visible through the door access holes.
• If the window will not move, you may need to remove the motor/regulator first while supporting the glass by hand and tape.
• Turn the ignition OFF and keep the key fob away from the vehicle.
• Use painter’s tape 1-inch on the painted door edge and trim edges if you want extra scratch protection.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and locate the 12-volt battery.
• Use a 10mm socket and 3/8-inch drive ratchet to loosen the negative battery terminal.
• Move the cable away from the battery post so it cannot touch accidentally.
• Battery off protects electronics.

Step 2: Remove the front door screw covers

• Use a plastic pry tool set to gently open the small cover behind the inside door handle.
• Use the plastic pry tool set to lift the screw cover in the door pull pocket.
• A plastic pry tool is a soft tool that helps prevent scratches on trim.

Step 3: Remove the front door panel screws

• Use a Phillips #2 screwdriver to remove the screw behind the inside door handle.
• Use a Phillips #2 screwdriver to remove the screw in the door pull pocket.
• Place the screws in a magnetic parts tray.

Step 4: Release the door panel clips

• Start at the lower rear corner of the front door panel.
• Use a trim clip removal tool to pry outward near the first clip.
• Work along the bottom and sides with the trim clip removal tool until the clips release.
• A trim clip removal tool is a fork-shaped tool that pops clips loose without tearing the panel.
• Pull near each clip.

Step 5: Lift off the front door panel

• Use both hands to lift the panel straight upward off the window ledge.
• Hold the panel close to the door because wiring and cables are still attached.
• Unplug the power window switch connector by hand.
• Use a pick tool 90-degree gently if a connector lock tab is hard to release.

Step 6: Disconnect the inside handle cable

• Look behind the inside handle area for the cable attached to the handle.
• Use needle-nose pliers 6-inch to rotate the cable end out of the handle lever.
• Release the cable housing from its plastic bracket by hand.
• The cable housing is the outer sleeve that holds the moving cable in place.

Step 7: Peel back the vapor barrier

• Use your fingers and a plastic pry tool set to carefully peel the plastic vapor barrier away from the door.
• Peel it back far enough to access the regulator bolts, glass bolts, and motor connector.
• Do not tear it. This plastic keeps rainwater from entering the cabin.
• Butyl sealant is the sticky black rubber that seals the plastic to the door.

Step 8: Secure the window glass

• Place a glass suction cup handle 4-inch on the glass to help hold and control it.
• Use painter’s tape 1-inch to tape the glass to the upper door frame from both sides of the glass.
• Use several long strips of tape over the top of the door frame.
• Put a shop towel pack between tape and painted areas if you are worried about finish marks.
• Use more tape than less.

Step 9: Remove the glass mounting bolts

• Locate the two glass clamp bolts through the door access openings.
• Use a 10mm socket, 3/8-inch drive extension 6-inch, and 3/8-inch drive ratchet to loosen and remove the two glass bolts.
• Keep one hand on the glass suction cup handle 4-inch while removing the final bolt.
• Carefully slide the glass fully upward by hand if needed, then re-secure it with painter’s tape 1-inch.

Step 10: Disconnect the window motor connector

• Locate the electrical connector at the front window motor.
• Press the connector tab by hand and pull the connector straight off.
• Use a pick tool 90-degree gently if the lock tab is stuck.

Step 11: Remove the regulator and motor bolts

• Use a 10mm socket, 3/8-inch drive extension 6-inch, and 3/8-inch drive ratchet to remove the regulator mounting bolts.
• Use the same 10mm socket to remove the window motor mounting bolts if they are separate from the regulator bolts.
• Support the regulator with one hand as the last bolt comes out.
• Place all bolts in a magnetic parts tray.

Step 12: Remove the old regulator assembly

• Fold or angle the regulator slightly inside the door opening.
• Guide the regulator and motor assembly out through the large access opening.
• Do not force it against the glass, wiring, or sharp door edges.
• Slow movements prevent damage.

Step 13: Compare the new regulator

• Place the old and new regulators side by side.
• Confirm the mounting holes, motor connector, cable routing, and glass clamp positions match.
• If the new regulator did not include a motor, transfer the motor using a Phillips #2 screwdriver or 10mm socket as equipped.

Step 14: Install the new regulator assembly

• Guide the new regulator and motor into the door through the access opening.
• Start all regulator and motor bolts by hand first.
• Use a 10mm socket and torque wrench 5-60 Nm to tighten the regulator and motor mounting bolts.
• Torque to 9 Nm (80 in-lbs).

Step 15: Reconnect the motor and attach the glass

• Plug the motor connector in by hand until it clicks.
• Carefully lower the taped glass by hand into the regulator clamps.
• Use the glass suction cup handle 4-inch to control the glass while aligning the holes.
• Install the two glass mounting bolts by hand.
• Use a 10mm socket and torque wrench 5-60 Nm to tighten the glass mounting bolts.
• Torque to 8 Nm (71 in-lbs).

Step 16: Test the regulator before closing the door

• Reconnect the negative battery cable temporarily using a 10mm socket.
• Reconnect the power window switch connector by hand.
• Turn ignition ON.
• Run the window down and up in short movements.
• Watch that the glass moves smoothly in the front and rear channels.
• If the glass tilts or binds, turn ignition OFF and loosen the glass bolts with a 10mm socket, realign the glass, then retighten to 8 Nm (71 in-lbs).

Step 17: Reset the front auto-up window function

• With ignition ON, use the window switch to lower the window fully.
• Hold the switch DOWN for about 2 seconds after the glass reaches the bottom.
• Raise the window fully.
• Hold the switch UP for about 2 seconds after the glass reaches the top.
• Test auto-up and auto-down operation.

Step 18: Disconnect battery again for reassembly

• Turn ignition OFF.
• Use a 10mm socket to disconnect the negative battery cable again before handling wiring.

Step 19: Reseal the vapor barrier

• Press the vapor barrier back into the butyl sealant by hand.
• Use vapor barrier butyl sealant anywhere the original sealant no longer sticks.
• Make sure the bottom of the vapor barrier is sealed well.
• This prevents water from reaching the carpet and door panel.

Step 20: Reconnect the handle cable and wiring

• Clip the inside handle cable housing into the bracket by hand.
• Use needle-nose pliers 6-inch to guide the cable end into the handle lever.
• Reconnect the power window switch connector by hand.
• Make sure each connector clicks into place.

Step 21: Reinstall the front door panel

• Hang the top of the panel on the window ledge.
• Align the door panel clips with their holes.
• Press around the panel edges with your palm until the clips snap in.
• Replace broken clips with front door panel trim clips.

Step 22: Reinstall screws and covers

• Use a Phillips #2 screwdriver to reinstall the screw behind the inside handle.
• Use a Phillips #2 screwdriver to reinstall the screw in the door pull pocket.
• Snap both screw covers back into place by hand.

Step 23: Reconnect the battery

• Install the negative battery cable onto the battery post.
• Use a 10mm socket and torque wrench 5-60 Nm to tighten the terminal nut.
• Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Test the front window from the driver master switch.
• Test the affected door’s own window switch.
• Confirm auto-up, auto-down, and pinch protection work correctly.
• Check that the door locks, mirror switch, and speaker work if their connectors were disturbed.
• Spray a light amount of water on the outside glass area and check inside the door panel area for leaks.
• Listen for rattles while closing the door. A rattle usually means a loose clip, bolt, or cable.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 per door (parts + labor)

DIY Cost: $90-$260 per door (parts only)

You Save: $260-$440 per door by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.2-2.0 hours per door.

---
