🔧 Pilot - Front Window Regulator Replacement

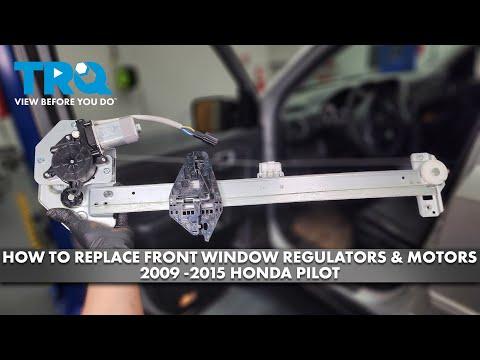

This repair replaces the front window regulator, the scissor/cable mechanism inside the door that moves the glass up and down. On your Pilot, the front window motor and regulator are serviced together or separately depending on the replacement part, but the door trim panel and inner access panel must be removed either way.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors.
• ⚠️ Support the window glass before removing the regulator bolts. The glass can drop suddenly and break.
• ⚠️ Wear safety glasses and gloves. Door sheet metal edges can be sharp.
• ⚠️ Do not cycle the window motor while the glass is unbolted from the regulator.
• ⚠️ If replacing both front regulators, complete one door at a time so you can use the other side as a reference.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet wrench
• 10mm combination wrench
• Torque wrench rated 5-50 Nm
• Phillips #2 screwdriver
• Trim removal tool set
• Panel clip removal pliers
• Plastic pick tool
• Small flathead screwdriver
• Needle-nose pliers
• Painter’s tape
• Suction cup glass holder (specialty)
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front driver window regulator - Qty: 1
• Front passenger window regulator - Qty: 1
• Front window motor - Qty: 1-2 if not included with regulators
• Door trim panel clips - Qty: 6-10 per door
• Vapor barrier butyl sealing tape - Qty: 1 roll

---

📋 Before You Begin

• Park your Pilot on level ground and turn the ignition off.
• Start with one front door. Do not disassemble both doors at the same time.
• If the window still moves, raise or lower it until the glass mounting bolts line up with the access holes in the door.
• If the window is stuck, you may need to move the glass by hand after removing the door panel.
• Use painter’s tape to protect the top of the door frame and to hold the glass later.
• A regulator is the mechanism that lifts and lowers the window glass.
• Butyl sealing tape is sticky rubber tape used to reseal the plastic moisture barrier inside the door.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Position the Window Glass

• Turn the ignition ON without starting the engine.
• Use the window switch to move the glass until the two glass mounting bolts are visible through the access holes.
• Turn the ignition OFF.
• If the regulator is broken and the glass will not move, continue carefully and reposition the glass by hand after the door panel is removed.
• Tip: Work slowly around glass.

Step 2: Disconnect the Battery

• Use a 10mm socket and ratchet wrench to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot touch the post.
• Wait 3 minutes before unplugging door wiring.

Step 3: Remove the Front Door Screw Covers

• Use a plastic pick tool to remove the small cover behind the inside door handle.
• Use a plastic pick tool to remove the screw cover in the door pull pocket if fitted.
• Use a Phillips #2 screwdriver to remove the exposed screws.

Step 4: Remove the Front Door Switch Panel

• Use a trim removal tool set to gently lift the power window switch panel upward.
• Use a small flathead screwdriver to press each connector lock tab.
• Unplug the electrical connectors by pulling on the connector bodies, not the wires.

Step 5: Remove the Front Door Trim Panel

• Use panel clip removal pliers or a trim removal tool set at the lower edge of the trim panel.
• Pull outward with steady pressure to release the bottom and side clips.
• Lift the trim panel straight upward to unhook it from the window ledge.
• Support the panel while disconnecting remaining connectors and the inner handle cable.

Step 6: Disconnect the Inner Handle Cable

• Use needle-nose pliers to rotate the inner handle cable retainer out of its bracket.
• Lift the cable end out of the handle lever by hand.
• Set the door trim panel on a clean surface.

Step 7: Peel Back the Vapor Barrier

• Use a plastic pick tool to slowly separate the vapor barrier from the black butyl sealer.
• Peel back enough of the barrier to access the regulator, motor connector, and glass bolts.
• Use nitrile gloves because the butyl sealer is very sticky.
• Do not tear the vapor barrier. It keeps rainwater out of the cabin.

Step 8: Support the Window Glass

• Install a suction cup glass holder on the outside of the window glass if the glass is still in its tracks.
• Use painter’s tape to tape the glass to the upper door frame in several vertical strips.
• If the glass is loose, raise it carefully by hand and tape it securely at the fully closed position.
• Do not rely on tape alone if the glass feels heavy or unstable.

Step 9: Remove the Glass Mounting Bolts

• Use a 10mm socket and ratchet wrench to loosen the two glass-to-regulator bolts through the door access openings.
• Remove the bolts while holding the glass steady with your other hand.
• If space is tight, use a 10mm combination wrench.
• Leave the glass taped fully up in the door frame.

Step 10: Unplug the Window Motor

• Use a small flathead screwdriver to press the window motor connector lock tab.
• Pull the connector straight off the motor by the connector body.
• Do not pull on the wires.

Step 11: Remove the Regulator Assembly

• Use a 10mm socket and ratchet wrench to remove the regulator mounting bolts from the door.
• Use a 10mm socket and ratchet wrench to remove the motor mounting bolts if the motor is attached separately to the door.
• Hold the regulator assembly with one hand as the last bolt is removed.
• Fold the regulator slightly and guide it out through the large door opening.
• Tip: Note cable routing before removal.

Step 12: Transfer the Window Motor if Needed

• If the new regulator does not include a motor, place the old regulator on a bench.
• Use a Phillips #2 screwdriver or 10mm socket, depending on the fastener style, to remove the motor from the old regulator.
• Install the motor onto the new regulator in the same position.
• Use a torque wrench to tighten the motor bolts to Torque to 8 Nm (71 in-lbs).

Step 13: Install the New Regulator

• Guide the new regulator assembly into the door through the large access opening.
• Align the regulator rails and motor with their mounting holes.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket and torque wrench to tighten the regulator mounting bolts to Torque to 10 Nm (7 ft-lbs).
• Use a 10mm socket and torque wrench to tighten the motor mounting bolts to Torque to 8 Nm (71 in-lbs) if separate.

Step 14: Reconnect the Window Motor Temporarily

• Push the window motor connector onto the motor until it clicks.
• Use a 10mm socket to temporarily reconnect the negative battery cable.
• Plug in the window switch panel by hand.
• Turn the ignition ON without starting the engine.
• Briefly move the regulator until the glass mounting points line up with the access holes.
• Turn the ignition OFF and disconnect the negative battery cable again with a 10mm socket.

Step 15: Attach the Glass to the Regulator

• Carefully remove enough painter’s tape to lower the glass by hand onto the regulator clamps.
• Align the glass holes with the regulator mounting points.
• Install the two glass mounting bolts by hand.
• Use a 10mm socket and torque wrench to tighten the glass mounting bolts to Torque to 8 Nm (71 in-lbs).
• Remove the suction cup glass holder after the bolts are tight.

Step 16: Test Window Operation Before Reassembly

• Use a 10mm socket to temporarily reconnect the negative battery cable.
• Plug in the window switch panel by hand.
• Turn the ignition ON without starting the engine.
• Run the window fully down and fully up while watching for smooth movement.
• Listen for grinding, clicking, or binding.
• If the glass tilts or binds, stop and recheck glass alignment and regulator bolts.
• Turn the ignition OFF and disconnect the negative battery cable again with a 10mm socket before reassembly.

Step 17: Reseal the Vapor Barrier

• Press the vapor barrier back into the original butyl sealer by hand.
• Use vapor barrier butyl sealing tape to repair any loose or missing seal areas.
• Use a plastic pick tool to guide the barrier around wiring and cable openings.
• Make sure the lower edge is sealed fully to prevent water leaks.

Step 18: Reinstall the Front Door Trim Panel

• Reconnect the inner handle cable by hand and lock the retainer with needle-nose pliers.
• Reconnect all door trim electrical connectors by hand until each clicks.
• Hang the top of the trim panel over the window ledge.
• Align the trim clips with their holes.
• Press around the panel edges by hand until each clip snaps in.
• Replace any broken door trim panel clips before final installation.

Step 19: Reinstall Screws and Switch Panel

• Use a Phillips #2 screwdriver to reinstall the door trim screws.
• Snap the screw covers back into place by hand.
• Press the power window switch panel down until it clips into place.

Step 20: Reconnect the Battery

• Use a 10mm socket and torque wrench to tighten the negative battery terminal to Torque to 5 Nm (44 in-lbs).
• Do not overtighten the battery clamp.

---

✅ After Repair

• ✅ Reset the front auto window function if needed.
• ✅ Turn ignition ON, lower the repaired window fully, then raise it fully and hold the switch up for about 2 seconds.
• ✅ Test AUTO up and AUTO down from the driver switch.
• ✅ Test the passenger window from its own switch and from the driver master switch.
• ✅ Confirm the window seals evenly at the top with no wind gap.
• ✅ Check that the door locks, mirror switch, and speaker work after reassembly.
• ✅ Spray water lightly over the outside glass and confirm no water leaks past the door trim.

---

💰 DIY vs Shop Cost

Shop Cost: $375-$750 per front door (parts + labor)

DIY Cost: $90-$260 per front door (parts only)

You Save: $285-$490 per front door by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.2-2.0 hours per door.

---
