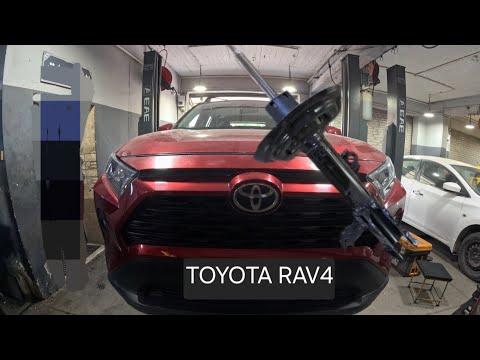

🔧 RAV4 - Front Strut Assembly Replacement

This repair replaces the front suspension strut assemblies on your RAV4. The strut supports the vehicle’s weight, controls bouncing, and helps keep the tires planted on the road.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: This guide covers front complete strut assemblies. Rear suspension on your RAV4 uses separate shocks, not front-style struts.

---

⚠️ Safety & Precautions

• ⚠️ Always replace front struts in pairs so the vehicle handles evenly.
• ⚠️ Your RAV4 Hybrid has high-voltage orange cables. Do not touch, unplug, or probe any orange wiring.
• ⚠️ Use complete loaded strut assemblies if you are a beginner. A loaded strut includes the spring, mount, and strut already assembled.
• ⚠️ Do not use a spring compressor unless you are trained. The coil spring stores dangerous energy.
• ⚠️ Support the vehicle with jack stands only. Never work under a vehicle held by a floor jack alone.
• ⚠️ After strut replacement, your RAV4 needs a professional wheel alignment.
• ⚠️ Battery disconnect is not required for this repair if you avoid electrical connectors and hybrid components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar 1/2-inch drive
• Torque wrench 1/2-inch drive
• Torque wrench 3/8-inch drive
• 21mm socket
• 22mm socket
• 19mm socket
• 17mm socket
• 14mm socket
• 12mm socket
• 10mm socket
• Ratchet 1/2-inch drive
• Ratchet 3/8-inch drive
• 17mm wrench
• 19mm wrench
• 22mm wrench
• Flathead screwdriver
• Trim clip removal tool
• Paint marker
• Rubber mallet
• Pry bar 18-inch
• Needle-nose pliers
• Bungee cord 24-inch
• Penetrating oil spray
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front complete strut assembly - Left: 1, Right: 1
• Front stabilizer bar link nuts - Qty: 2
• Front strut-to-knuckle nuts - Qty: 4
• Front strut upper mounting nuts - Qty: 6

Tip: Complete strut assemblies are safest for beginners.

---

📋 Before You Begin

• 🅿️ Park your RAV4 on level ground and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔩 Loosen the front lug nuts slightly before lifting the vehicle.
• 📸 Take photos of brake hose brackets, ABS wire routing, and strut orientation before disassembly.
• 🖊️ Use a paint marker to mark the position of the lower strut bolts before removal. This helps keep alignment close enough to drive to the alignment shop.
• 🛞 Plan for a professional front wheel alignment immediately after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 21mm socket and breaker bar 1/2-inch drive to loosen each front wheel lug nut about one turn.
• Do not remove the lug nuts yet.
• Loosen wheels while tires touch ground.

Step 2: Raise and Support the Front of the Vehicle

• Use a floor jack (rated 3-ton minimum) at the front center jacking point.
• Place jack stands (rated 3-ton minimum) under the approved front side support points.
• Lower the RAV4 gently onto the jack stands.
• Use safety glasses and mechanic gloves before working near suspension parts.

Step 3: Remove the Front Wheels

• Use a 21mm socket and ratchet 1/2-inch drive to remove the front lug nuts.
• Remove both front wheels and set them flat on the ground.

Step 4: Access the Upper Strut Mount Nuts

• Open the hood.
• Use a trim clip removal tool and flathead screwdriver to remove any plastic cowl trim clips needed to see the upper strut mounting nuts.
• The upper strut mount is the top mounting plate where the strut bolts to the body.
• Do not remove the center strut shaft nut. Only remove the outer mounting nuts.

Step 5: Mark the Strut-to-Knuckle Position

• Use a paint marker to draw alignment marks across the strut lower bracket and steering knuckle.
• The steering knuckle is the metal part that holds the wheel hub and connects to the strut.
• This mark helps you install the new strut close to the original position.

Step 6: Remove Brake Hose and ABS Wire Brackets

• Use a 12mm socket and ratchet 3/8-inch drive to remove the brake hose bracket bolt from the strut.
• Use a 10mm socket or trim clip removal tool to detach the ABS wheel speed sensor wire bracket or clip from the strut.
• Move the hose and wire aside carefully. Do not pull or stretch them.
• Use a bungee cord 24-inch if needed to hold the hose safely out of the way.

Step 7: Disconnect the Stabilizer Bar Link from the Strut

• Spray the stabilizer link nut with penetrating oil spray.
• Use a 17mm wrench or 17mm socket to remove the stabilizer bar link nut from the strut bracket.
• The stabilizer bar link is a short rod that helps control body roll during turns.
• If the stud spins, hold the stud with the correct internal hex or locking area if equipped, while turning the nut with the 17mm wrench.
• Move the link away from the strut.

Step 8: Support the Steering Knuckle

• Place the floor jack (rated 3-ton minimum) lightly under the lower control arm or knuckle area.
• Do not lift the vehicle. Just support the suspension so it does not drop suddenly.
• Use a bungee cord 24-inch to help support the knuckle if needed.

Step 9: Remove the Lower Strut-to-Knuckle Bolts

• Use a 22mm socket, 22mm wrench, and breaker bar 1/2-inch drive to loosen the two large strut-to-knuckle nuts.
• Remove the nuts, then push or tap the bolts out using a rubber mallet.
• If the bolts are tight, use a pry bar 18-inch carefully to relieve pressure while removing them.
• Keep the knuckle supported so the brake hose and axle are not strained.

Step 10: Remove the Upper Strut Mount Nuts

• Support the strut with one hand.
• Use a 14mm socket and ratchet 3/8-inch drive to remove the three upper strut mounting nuts.
• Do not remove the center nut on the strut assembly.
• Lower the strut assembly out through the wheel opening.
• Keep fingers clear as it drops.

Step 11: Compare the New Strut Assembly

• Place the old and new front complete strut assembly side by side.
• Check that the brake hose bracket, ABS wire bracket, spring orientation, and top mount studs match.
• Use a paint marker to mark the front-facing side if it helps you keep orientation clear.

Step 12: Install the New Strut Assembly

• Guide the new strut assembly up into the strut tower by hand.
• Install the three new upper mounting nuts finger-tight first.
• Use a 14mm socket and torque wrench 3/8-inch drive to tighten the upper strut mounting nuts to Torque to 47 Nm (35 ft-lbs).

Step 13: Reconnect the Strut to the Steering Knuckle

• Align the steering knuckle with the lower strut bracket using the floor jack (rated 3-ton minimum) as light support.
• Install the lower strut-to-knuckle bolts through the bracket.
• Install new nuts by hand.
• Use a 22mm socket, 22mm wrench, and torque wrench 1/2-inch drive to tighten the strut-to-knuckle nuts to Torque to 240 Nm (177 ft-lbs).

Step 14: Reinstall the Stabilizer Bar Link

• Insert the stabilizer bar link stud into the strut bracket.
• Install a new nut by hand.
• Use a 17mm socket, 17mm wrench, and torque wrench 3/8-inch drive to tighten the stabilizer link nut to Torque to 74 Nm (55 ft-lbs).

Step 15: Reattach Brake Hose and ABS Wire Brackets

• Use a 12mm socket and torque wrench 3/8-inch drive to install the brake hose bracket bolt.
• Tighten the brake hose bracket bolt to Torque to 19 Nm (14 ft-lbs).
• Use a 10mm socket or trim clip removal tool to secure the ABS wire bracket or clip.
• Confirm the brake hose and ABS wire are not twisted, stretched, or rubbing the tire.

Step 16: Repeat on the Other Side

• Repeat Steps 4 through 15 for the opposite front strut assembly.
• Use the same tools and torque specs.
• Take your time and compare both sides as you go.

Step 17: Reinstall the Front Wheels

• Install both front wheels by hand.
• Use a 21mm socket and ratchet 1/2-inch drive to snug the lug nuts in a star pattern.
• A star pattern means tightening across the wheel instead of going around in a circle.

Step 18: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack (rated 3-ton minimum) to lift the vehicle slightly off the jack stands.
• Remove the jack stands (rated 3-ton minimum).
• Lower the RAV4 fully to the ground.
• Use a 21mm socket and torque wrench 1/2-inch drive to tighten the lug nuts in a star pattern to Torque to 103 Nm (76 ft-lbs).

Step 19: Reinstall Any Cowl Trim

• Use a trim clip removal tool and your hands to reinstall the plastic cowl trim and clips.
• Use a flathead screwdriver only if needed to guide clips into place gently.

---

✅ After Repair

• ✅ Bounce each front corner gently. The vehicle should settle quickly without repeated bouncing.
• ✅ Start your RAV4 and turn the steering wheel lock-to-lock while parked. Listen for clunks or rubbing.
• ✅ Test drive slowly first. Check braking, steering, and any warning lights.
• ✅ Recheck lug nut torque after the first short drive using a 21mm socket and torque wrench 1/2-inch drive.
• ✅ Schedule a professional wheel alignment immediately. Strut removal changes front alignment angles.
• ✅ If ABS, traction control, or steering warning lights appear, stop and inspect ABS wire routing before driving further.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,500 (parts + labor)

DIY Cost: $350-$750 (parts only)

You Save: $550-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours including alignment time.

---
