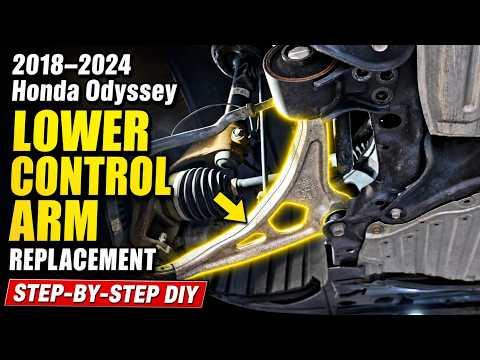

🔧 Odyssey - Front Lower Control Arm Replacement

This repair replaces the front lower control arms on your Odyssey. The lower control arm connects the front wheel hub area to the subframe and uses rubber bushings and a ball joint to keep the wheel aligned and stable.

Replace control arms if the bushings are torn, the ball joint has play, or you hear clunking over bumps. An alignment is required afterward because control arm position affects steering geometry.

Difficulty Level: Advanced | Estimated Time: 3-5 hours for both sides

---

⚠️ Safety & Precautions

• ⚠️ Support your Odyssey with jack stands before working underneath. Never rely on a floor jack alone.
• ⚠️ The front coil spring and strut stay installed, but suspension parts can still shift suddenly when separated.
• ⚠️ Do not hammer directly on the ball joint stud threads. Damaged threads can prevent proper nut installation.
• ⚠️ Do not loosen or remove the subframe unless the procedure specifically calls for it.
• ⚠️ Tighten the control arm bushing bolts at normal ride height. This prevents twisting and early bushing failure.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 3/8-inch drive ratchet
• 19mm socket
• 21mm socket
• 22mm socket
• 24mm socket
• 17mm wrench
• 19mm wrench
• 21mm wrench
• 22mm wrench
• Needle-nose pliers
• Ball joint separator (specialty)
• Pry bar
• Rubber mallet
• Paint marker
• Penetrating oil
• Wire brush
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm assembly - Left: 1, Right: 1
• Lower ball joint castle nut - Qty: 2
• Lower ball joint cotter pin - Qty: 2
• Control arm mounting bolts and nuts - Qty: 1 set

---

📋 Before You Begin

• Park your Odyssey on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the vehicle.
• Spray penetrating oil on the lower ball joint nut and control arm mounting bolts.
• Use a paint marker to mark the position of the old control arm bolts before removal. This helps keep the alignment close enough to drive carefully to an alignment shop.
• Plan to get a professional four-wheel alignment immediately after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 19mm socket and 1/2-inch drive breaker bar to loosen the front lug nuts about half a turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Lift and Support the Front of the Vehicle

• Use a floor jack to lift the front of your Odyssey at the front center jacking point.
• Place jack stands under the approved front support points.
• Gently lower the vehicle onto the jack stands.
• Shake the vehicle lightly by hand to confirm it is stable before working.

Step 3: Remove the Front Wheels

• Use a 19mm socket to remove the lug nuts.
• Remove both front wheels and set them aside.

Step 4: Inspect the Control Arm Area

• Use a shop light to view the lower control arm, ball joint, rear bushing, and front mounting point.
• The bushing is the rubber mount where the control arm bolts to the frame.
• The ball joint is the pivot joint at the outer end of the control arm near the wheel knuckle.
• Use a wire brush to clean rust or dirt from exposed bolt threads.

Step 5: Mark the Original Bolt Positions

• Use a paint marker to mark the position of the control arm mounting bolts and washers.
• This does not replace an alignment, but it helps keep the vehicle drivable afterward.

Step 6: Remove the Lower Ball Joint Cotter Pin

• Use needle-nose pliers to straighten and pull out the cotter pin from the lower ball joint castle nut.
• A cotter pin is a small locking pin that prevents the nut from backing off.
• Discard the old cotter pin. Do not reuse it.

Step 7: Loosen the Lower Ball Joint Nut

• Use a 17mm wrench or correct-size socket if access allows to loosen the lower ball joint castle nut.
• Leave the nut threaded on a few turns. This keeps the control arm from dropping suddenly when the joint separates.

Step 8: Separate the Ball Joint from the Knuckle

• Install the ball joint separator between the control arm and steering knuckle.
• A ball joint separator is a tool that safely presses the tapered ball joint stud loose from the knuckle.
• Tighten the separator until the joint pops free.
• Use a rubber mallet only for light tapping if needed.
• Remove the loosened castle nut fully after the joint is separated.

Step 9: Support the Control Arm

• Use the floor jack under the outer end of the control arm with light pressure only.
• Do not lift the vehicle off the jack stands.
• This support helps control the arm while removing the mounting bolts.

Step 10: Remove the Rear Control Arm Mounting Bolt

• Use a 22mm socket and 1/2-inch drive breaker bar to loosen the rear control arm mounting bolt.
• Use a 22mm wrench to hold the nut if it spins.
• Remove the bolt and nut once loose.

Step 11: Remove the Front Control Arm Mounting Bolt

• Use a 21mm socket and 1/2-inch drive breaker bar to loosen the front control arm mounting bolt.
• Use a 21mm wrench to hold the nut if required.
• Remove the front mounting bolt.

Step 12: Remove the Old Control Arm

• Use a pry bar to gently work the control arm out of the subframe brackets.
• Lower the floor jack slightly if the arm is binding.
• Remove the old control arm from the vehicle.
• Do not force aluminum parts.

Step 13: Compare the Old and New Control Arms

• Place the new control arm beside the old one.
• Confirm the ball joint, bushings, and mounting holes match side-to-side.
• Make sure the left and right control arms are not swapped.

Step 14: Install the New Control Arm into the Subframe

• Position the new control arm into the mounting brackets by hand.
• Use a rubber mallet for light taps if needed.
• Install the front and rear mounting bolts by hand first.
• Do not fully tighten the bushing bolts yet.

Step 15: Connect the Lower Ball Joint

• Raise the outer end of the control arm slightly with the floor jack.
• Guide the ball joint stud into the steering knuckle by hand.
• Install the new castle nut by hand.
• Use a 17mm wrench to snug the nut.
• Torque to 59 Nm (44 ft-lbs), then tighten only enough to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers.

Step 16: Tighten the Control Arm Bolts at Ride Height

• Use the floor jack under the control arm to raise the suspension until it sits near normal ride height.
• Normal ride height means the control arm is positioned like it would be with the vehicle sitting on the ground.
• Use a 21mm socket and 1/2-inch drive torque wrench on the front mounting bolt.
• Torque to 137 Nm (101 ft-lbs).
• Use a 22mm socket and 1/2-inch drive torque wrench on the rear mounting bolt.
• Torque to 137 Nm (101 ft-lbs).

Step 17: Repeat on the Other Side

• Repeat Steps 4 through 16 on the opposite front control arm.
• Replace control arms in pairs when possible for even suspension feel and alignment.

Step 18: Reinstall the Front Wheels

• Install the wheels by hand.
• Thread the lug nuts by hand to avoid cross-threading.
• Use a 19mm socket to snug the lug nuts in a star pattern.

Step 19: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to lift the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower your Odyssey to the ground.
• Use a 19mm socket and 1/2-inch drive torque wrench to torque the lug nuts in a star pattern.
• Torque to 127 Nm (94 ft-lbs).

---

✅ After Repair

• ✅ Bounce the front of the vehicle gently and listen for abnormal clunks.
• ✅ Test drive slowly first. Listen for knocking, popping, or steering pull.
• ✅ Recheck lug nut torque after the first short drive using a 19mm socket and torque wrench.
• ✅ Get a professional four-wheel alignment as soon as possible.
• ✅ Avoid highway speeds until the alignment is completed if the steering wheel is off-center or the van pulls.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor + alignment)

DIY Cost: $250-$500 (parts only, alignment not included)

You Save: $350-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
