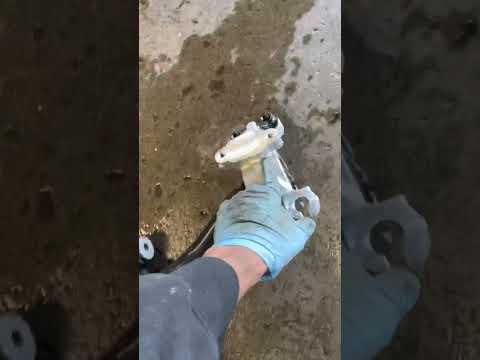

🔧 CR-V - Front Lower Control Arm Replacement

This repair replaces the front lower control arms on your CR-V. The lower control arm connects the front wheel knuckle to the vehicle frame and contains bushings plus a ball joint that help keep the wheel stable while driving.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Suspension parts carry vehicle weight and can shift suddenly. Keep hands clear of pinch points.
• ⚠️ Never work under your CR-V with only a floor jack. Always use jack stands.
• ⚠️ Do not hammer directly on the ball joint stud threads. Damaged threads can prevent safe reassembly.
• ⚠️ The lower control arm bolts must be final-torqued at normal ride height to prevent bushing damage.
• ⚠️ A front wheel alignment is required after replacing control arms.
• ⚠️ No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm lug nut socket
• Breaker bar 1/2-inch drive
• Ratchet 1/2-inch drive
• Ratchet 3/8-inch drive
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 22mm socket
• 17mm wrench
• 19mm wrench
• 22mm wrench
• Torque wrench 1/2-inch drive
• Torque wrench 3/8-inch drive
• Ball joint separator (specialty)
• Pry bar 18-inch
• Rubber mallet
• Needle nose pliers
• Trim clip removal tool
• Paint marker
• Penetrating oil
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm assembly - Left: 1
• Front lower control arm assembly - Right: 1
• Front lower ball joint castle nuts - Qty: 2
• Front lower ball joint cotter pins - Qty: 2
• Front lower control arm mounting bolts - Qty: 4
• Front lower control arm mounting nuts - Qty: 4

---

📋 Before You Begin

• Park your CR-V on level ground.
• Set the parking brake and place wheel chocks behind the rear tires.
• Spray penetrating oil on the lower control arm mounting bolts and lower ball joint nut.
• Plan to replace both front lower control arms in pairs for even handling.
• Schedule a front wheel alignment after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use the 19mm lug nut socket and breaker bar 1/2-inch drive to loosen the front lug nuts about 1/2 turn.
• Do not remove the lug nuts while your CR-V is on the ground.
• Tip: Loosen before lifting.

Step 2: Lift and Support the Front

• Use the floor jack (rated 2-ton minimum) at the front center jacking point to raise your CR-V.
• Place jack stands (rated 2-ton minimum) under the approved front side support points.
• Lower your CR-V slowly onto the jack stands.
• Gently shake the vehicle to confirm it is stable before working underneath.

Step 3: Remove the Front Wheels

• Use the 19mm lug nut socket and ratchet 1/2-inch drive to remove the front lug nuts.
• Remove both front wheels and place them flat on the ground.

Step 4: Remove the Front Splash Shield If It Blocks Access

• Use the trim clip removal tool to remove plastic clips from the front lower splash shield if it blocks the rear control arm bolts.
• Use the 10mm socket and ratchet 3/8-inch drive to remove any splash shield bolts.
• Set the splash shield and clips aside in order.

Step 5: Support the Steering Knuckle

• The steering knuckle is the large metal part that holds the wheel hub and turns with the steering.
• Place the floor jack (rated 2-ton minimum) lightly under the steering knuckle or lower control arm.
• Raise it just enough to support the suspension. Do not lift your CR-V off the jack stand.

Step 6: Remove the Lower Ball Joint Cotter Pin

• The ball joint is a pivot joint that lets the wheel move up and down while steering.
• Use the needle nose pliers to straighten and pull out the cotter pin from the lower ball joint castle nut.
• A cotter pin is a small locking pin that prevents the nut from loosening.

Step 7: Loosen the Lower Ball Joint Castle Nut

• Use the 17mm socket and ratchet 1/2-inch drive to loosen the lower ball joint castle nut.
• Leave the nut threaded on a few turns to protect the stud while separating the joint.

Step 8: Separate the Lower Ball Joint

• Install the ball joint separator (specialty) between the lower control arm and steering knuckle.
• Tighten the separator with the 19mm socket and ratchet 1/2-inch drive until the ball joint pops loose.
• Use the rubber mallet only for light tapping if needed.
• Remove the castle nut fully with the 17mm socket and move the knuckle slightly away from the control arm.

Step 9: Mark the Control Arm Bolt Positions

• Use the paint marker to mark the position of the control arm mounting bolts and brackets.
• This helps keep the suspension close enough to drive safely to the alignment shop.

Step 10: Remove the Front Control Arm Mounting Bolt

• Use the 19mm socket, 19mm wrench, and breaker bar 1/2-inch drive to loosen the front control arm mounting bolt and nut.
• Use the 19mm socket, 19mm wrench, and ratchet 1/2-inch drive to remove the bolt and nut.

Step 11: Remove the Rear Control Arm Mounting Bolt

• Use the 22mm socket, 22mm wrench, and breaker bar 1/2-inch drive to loosen the rear control arm mounting bolt and nut.
• Use the 22mm socket, 22mm wrench, and ratchet 1/2-inch drive to remove the bolt and nut.
• Hold the control arm with one hand as the last bolt comes out.

Step 12: Remove the Lower Control Arm

• Use the pry bar 18-inch to gently work the control arm out of the subframe pockets.
• Do not pry against the brake hose, CV axle boot, or ABS wire.
• Remove the control arm from the vehicle.

Step 13: Install the New Lower Control Arm

• Slide the new front lower control arm assembly into the subframe pockets.
• Use the pry bar 18-inch only as needed to align the bushings with the bolt holes.
• Install the front and rear mounting bolts by hand first.
• Do not final-torque the bushing bolts yet.

Step 14: Connect the Ball Joint to the Steering Knuckle

• Guide the lower ball joint stud into the steering knuckle.
• Install a new lower ball joint castle nut by hand.
• Use the 17mm socket and torque wrench 1/2-inch drive to tighten the castle nut to Torque to 59 Nm (44 ft-lbs).
• If the cotter pin hole does not line up, tighten the nut slightly more until the hole lines up. Do not loosen it to align the hole.
• Install a new cotter pin with the needle nose pliers and bend the ends over securely.

Step 15: Load the Suspension Before Final Torque

• Use the floor jack (rated 2-ton minimum) under the outer end of the lower control arm.
• Raise the control arm until the suspension sits near normal ride height.
• Normal ride height means the control arm is in about the same position it has when the vehicle is sitting on the ground.

Step 16: Torque the Control Arm Mounting Bolts

• Use the 19mm socket, 19mm wrench, and torque wrench 1/2-inch drive to tighten the front control arm mounting bolt to Torque to 98 Nm (72 ft-lbs).
• Use the 22mm socket, 22mm wrench, and torque wrench 1/2-inch drive to tighten the rear control arm mounting bolt to Torque to 127 Nm (94 ft-lbs).
• Lower and remove the floor jack from under the control arm.

Step 17: Reinstall the Splash Shield

• Position the splash shield back into place.
• Use the trim clip removal tool to reinstall the plastic clips by hand.
• Use the 10mm socket and ratchet 3/8-inch drive to snug any splash shield bolts.

Step 18: Repeat on the Other Side

• Use the same tools and steps to replace the opposite front lower control arm.
• Replacing both sides helps your CR-V track and brake evenly.

Step 19: Reinstall the Front Wheels

• Install both front wheels onto the hubs.
• Start all lug nuts by hand to avoid cross-threading.
• Use the 19mm lug nut socket and ratchet 1/2-inch drive to snug the lug nuts in a star pattern.

Step 20: Lower the Vehicle and Torque Lug Nuts

• Use the floor jack (rated 2-ton minimum) to lift your CR-V slightly off the jack stands.
• Remove the jack stands (rated 2-ton minimum).
• Lower your CR-V fully to the ground.
• Use the 19mm lug nut socket and torque wrench 1/2-inch drive to tighten the lug nuts in a star pattern to Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• ✅ Turn the steering wheel fully left and right while parked. Listen for rubbing, popping, or binding.
• ✅ Look behind each front wheel and confirm the brake hose and ABS wire are not stretched or pinched.
• ✅ Test drive slowly at first. Stop immediately if the vehicle pulls hard, clunks, or feels unstable.
• ✅ Get a professional front wheel alignment as soon as possible.
• ✅ Recheck lug nut torque after 25-50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $850-$1,400 (parts + labor + alignment)

DIY Cost: $250-$600 (parts only, alignment extra)

You Save: $450-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours plus alignment time.

---
