🔧 Tucson - Front Lower Control Arm Replacement

This repair replaces the front lower control arms on your Tucson. The control arm connects the front wheel assembly to the body and holds the ball joint and bushings, which help keep the tire stable while driving.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support your Tucson with jack stands. Never work under a vehicle held only by a floor jack.
• ⚠️ The front suspension can shift when the control arm is disconnected. Keep hands clear of pinch points.
• ⚠️ Do not hammer directly on the ball joint stud threads.
• ⚠️ Replace control arms in pairs when possible for even handling and braking feel.
• ⚠️ A front wheel alignment is required after replacing control arms.
• ⚠️ No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• 3/8-inch drive ratchet
• 17mm socket
• 19mm socket
• 21mm socket
• 22mm socket
• 17mm combination wrench
• 19mm combination wrench
• 21mm combination wrench
• Torque wrench (10-150 ft-lbs)
• Torque wrench (20-250 ft-lbs)
• Ball joint separator (specialty)
• Pickle fork ball joint separator (specialty)
• Small pry bar
• Rubber mallet
• Penetrating oil
• Paint marker
• Needle-nose pliers
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arms with ball joints - Qty: 2
• Front lower ball joint nuts - Qty: 2
• Front lower control arm mounting bolt and nut kit - Qty: 1
• Cotter pins - Qty: 2

---

📋 Before You Begin

• Park your Tucson on a flat, solid surface.
• Shift to Park and set the parking brake.
• Place wheel chocks behind the rear tires.
• Spray penetrating oil on the control arm mounting bolts and ball joint nut.
• Use a paint marker to mark the location of the control arm bolts and washers before removal. This helps keep alignment close enough for a careful drive to the alignment shop.
• Plan for a professional wheel alignment immediately after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 21mm lug nut socket and 1/2-inch drive breaker bar to loosen the front lug nuts about 1/2 turn.
• Do not remove them yet.
• Break them loose before lifting.

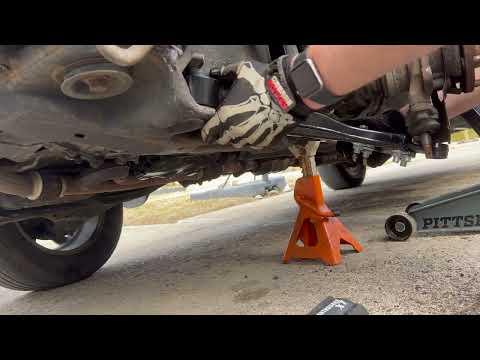

Step 2: Lift and Support the Front

• Use a floor jack to lift the front of your Tucson at the front center lifting point.
• Place jack stands under the approved front side support points.
• Lower your Tucson gently onto the jack stands.
• Give the vehicle a gentle push to confirm it is stable.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and 1/2-inch drive ratchet to remove the lug nuts.
• Remove both front wheels.
• Place the wheels flat under the side of the vehicle as an extra safety backup.

Step 4: Locate the Front Lower Control Arm

• The lower control arm is the large metal arm running from the front subframe to the bottom of the steering knuckle.
• The steering knuckle is the large metal part that holds the wheel hub and brake assembly.
• Identify the rear bushing bolt, front bushing bolt, and outer ball joint connection.

Step 5: Mark the Bolt Positions

• Use a paint marker to mark the position of the control arm mounting bolts and washers.
• These marks help keep the suspension close to its previous position until alignment is performed.

Step 6: Remove the Ball Joint Cotter Pin

• Use needle-nose pliers to straighten and pull out the cotter pin from the lower ball joint stud.
• A cotter pin is a small locking pin that keeps the nut from backing off.
• If the cotter pin is rusted, work it back and forth gently with the needle-nose pliers.

Step 7: Loosen the Lower Ball Joint Nut

• Use a 19mm socket and 1/2-inch drive breaker bar to loosen the lower ball joint nut.
• Leave the nut threaded on a few turns. This helps catch the joint when it pops loose.

Step 8: Separate the Ball Joint from the Steering Knuckle

• Use a ball joint separator to press the ball joint stud loose from the steering knuckle.
• A ball joint separator is a tool that safely pushes the tapered stud out of the knuckle.
• If using a pickle fork ball joint separator, place it between the control arm and knuckle, then tap it with a rubber mallet.
• Once the joint pops loose, use the 19mm socket and 1/2-inch drive ratchet to remove the ball joint nut fully.

Step 9: Remove the Rear Control Arm Mounting Bolt

• Use a 21mm socket with a 1/2-inch drive breaker bar to loosen the rear control arm mounting bolt.
• Hold the nut with a 21mm combination wrench if it turns.
• Remove the bolt and nut, then set them aside if reusing temporarily.

Step 10: Remove the Front Control Arm Mounting Bolt

• Use a 19mm socket or 22mm socket with a 1/2-inch drive breaker bar to loosen the front control arm mounting bolt.
• Hold the opposite side with a 19mm combination wrench or 21mm combination wrench if needed.
• Remove the bolt fully.

Step 11: Remove the Old Control Arm

• Use a small pry bar to gently work the control arm out of the subframe pockets.
• Lower the outer end of the control arm away from the steering knuckle.
• Remove the control arm from your Tucson.
• Do not pull on the brake hose or ABS sensor wire.

Step 12: Compare the New Control Arm

• Place the old and new control arms side by side.
• Make sure the ball joint, bushings, bolt holes, and shape match.
• Confirm left and right control arms are not swapped.

Step 13: Install the New Control Arm Into the Subframe

• Slide the new control arm into the front and rear subframe pockets.
• Install the front and rear mounting bolts by hand only.
• Use a small pry bar gently if the bushings need help lining up.
• Do not fully tighten the bushing bolts yet.

Step 14: Connect the Ball Joint to the Steering Knuckle

• Guide the ball joint stud into the steering knuckle.
• Install the new ball joint nut by hand.
• Use a 19mm socket and torque wrench (10-150 ft-lbs) to tighten the lower ball joint nut to Torque to 78 Nm (58 ft-lbs).
• Install a new cotter pin through the ball joint stud using needle-nose pliers.
• If the cotter pin hole does not line up, tighten the nut slightly more until it lines up. Do not loosen the nut to align the hole.

Step 15: Preload the Suspension Before Final Tightening

• Use the floor jack under the outer control arm area to raise the suspension to normal ride height.
• Ride height means the suspension sits about where it would with the vehicle on the ground.
• This prevents the new rubber bushings from being twisted at rest.

Step 16: Torque the Control Arm Mounting Bolts

• Use a torque wrench (20-250 ft-lbs), 21mm socket, and matching 21mm combination wrench for the rear mounting bolt.
• Tighten the rear control arm mounting bolt to Torque to 156 Nm (115 ft-lbs).
• Use a torque wrench (20-250 ft-lbs), 19mm socket or 22mm socket, and matching wrench for the front mounting bolt.
• Tighten the front control arm mounting bolt to Torque to 156 Nm (115 ft-lbs).

Step 17: Repeat on the Other Side

• Use the same steps and tools to replace the other front lower control arm.
• Replacing both sides helps your Tucson handle evenly.

Step 18: Reinstall the Front Wheels

• Place each wheel back onto the hub.
• Thread all lug nuts by hand first.
• Use a 21mm lug nut socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 19: Lower the Vehicle

• Use the floor jack to lift your Tucson slightly off the jack stands.
• Remove the jack stands.
• Lower the vehicle slowly to the ground.

Step 20: Torque the Wheel Lug Nuts

• Use a torque wrench (10-150 ft-lbs) and 21mm lug nut socket.
• Tighten the lug nuts in a star pattern to Torque to 107 Nm (79 ft-lbs).

---

✅ After Repair

• ✅ Turn the steering wheel fully left and right while parked. Listen for clunks, pops, or rubbing.
• ✅ Take a short, slow test drive. Avoid highway speeds until alignment is complete.
• ✅ Get a professional front wheel alignment immediately after the repair.
• ✅ Recheck the lug nut torque after 25-50 miles using a torque wrench and 21mm lug nut socket.
• ✅ If your Tucson pulls, wanders, or the steering wheel is off-center, stop driving except to reach the alignment shop.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,300 (parts + labor + alignment)

DIY Cost: $220-$550 (parts only, alignment extra)

You Save: $450-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours plus alignment time.

---
