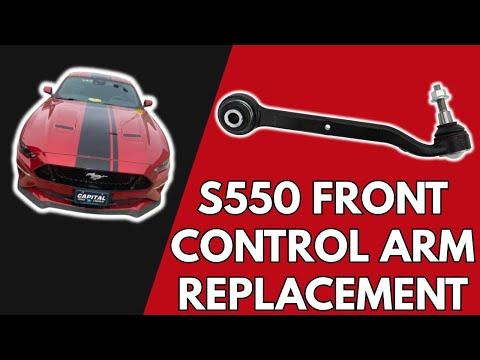

🔧 Mustang - Front Lower Control Arm Replacement

This guide covers replacing the front lower control arms on your Mustang. The lower control arms locate the front wheels and contain bushings and ball joints that can cause clunks, looseness, uneven tire wear, or wandering when worn.

Assumption: This procedure is for the front lower control arms, replacing both sides as a pair.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Mustang with jack stands only. Never work under a vehicle held up by a jack.
• ⚠️ The front suspension is heavy. Keep hands clear when separating the ball joint.
• ⚠️ Do not loosen or remove control arm bolts while the vehicle is only supported by the suspension.
• ⚠️ Final tightening of control arm pivot bolts should be done at normal ride height to avoid damaging the rubber bushings.
• ⚠️ An alignment is required after this repair.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench 50-250 ft-lb
• 3/8-inch drive ratchet
• 1/2-inch drive ratchet
• 21mm socket
• 24mm socket
• 24mm wrench
• 18mm socket
• 18mm wrench
• 15mm socket
• 10mm socket
• Flat trim clip removal tool
• Ball joint separator tool (specialty)
• Dead blow hammer
• Pry bar 18-inch
• Paint marker
• Measuring tape
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm assembly - Left: 1, Right: 1
• Front lower control arm-to-subframe bolts - Qty: 4
• Front lower ball joint nuts - Qty: 2
• Wheel alignment service - Qty: 1

---

📋 Before You Begin

• Park your Mustang on a flat, solid surface.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the vehicle.
• Measure from the center of the front wheel hub to the fender lip with a measuring tape and write it down. This is your ride-height reference for final bushing tightening.
• A ball joint separator is a tool that presses the tapered ball joint stud out of the steering knuckle without hammering directly on suspension parts.
• Plan for a professional alignment immediately after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheels

• Use a 21mm socket and 1/2-inch drive breaker bar to loosen each front wheel lug nut about 1/2 turn.
• Do not remove the lug nuts yet.
• Break lug nuts loose on the ground.

Step 2: Raise and Support the Front of the Car

• Use the floor jack rated 3-ton minimum to lift the front of your Mustang at the front center jacking point.
• Place jack stands rated 3-ton minimum under the proper front support points.
• Lower the car gently onto the jack stands.
• Shake the vehicle lightly by hand to confirm it is stable before working underneath.

Step 3: Remove the Front Wheels

• Use the 21mm socket and 1/2-inch drive ratchet to remove the loosened lug nuts.
• Remove both front wheels and set them aside.

Step 4: Remove Any Lower Splash Shield Blocking Access

• Use a 10mm socket to remove lower shield fasteners if they block the control arm bolts.
• Use a flat trim clip removal tool to remove plastic push clips carefully.
• Set the shield and clips aside in order.

Step 5: Mark the Current Bolt Positions

• Use a paint marker to mark the position of each control arm mounting bolt and washer before removal.
• This helps keep the alignment close enough to drive carefully to the alignment shop.
• Marks help, but do not replace alignment.

Step 6: Loosen the Lower Ball Joint Nut

• Locate the lower ball joint where the control arm connects to the steering knuckle.
• Use a 24mm socket and 1/2-inch drive breaker bar to loosen the lower ball joint nut.
• Leave the nut threaded on a few turns. This keeps the arm from dropping suddenly when the joint separates.

Step 7: Separate the Ball Joint from the Steering Knuckle

• Install the ball joint separator tool (specialty) between the lower control arm ball joint and the steering knuckle.
• Tighten the separator with the correct wrench from the tool kit until the taper pops loose.
• If needed, tap the side of the knuckle lightly with a dead blow hammer while pressure is applied.
• Do not hammer the threaded ball joint stud directly.

Step 8: Remove the Ball Joint Nut

• Use the 24mm socket to fully remove the lower ball joint nut.
• Push the control arm down by hand or with a pry bar 18-inch to free the ball joint stud from the steering knuckle.
• Keep fingers away from pinch points.

Step 9: Remove the Inner Control Arm Bolts

• Support the lower control arm by hand so it does not drop when the bolts come out.
• Use an 18mm socket and 18mm wrench to remove the inner control arm mounting bolts and nuts if equipped.
• Use a 24mm socket and 24mm wrench if your replacement hardware uses the larger nut and bolt style.
• Remove the control arm from the subframe.

Step 10: Compare the Old and New Control Arms

• Place the old and new arms side by side on the floor.
• Confirm the ball joint, bushings, mounting points, and left/right orientation match.
• Use the paint marker to label left and right if needed.

Step 11: Install the New Control Arm

• Position the new lower control arm into the subframe.
• Install the inner control arm bolts by hand first to avoid cross-threading.
• Use the 18mm socket and 18mm wrench or 24mm socket and 24mm wrench to snug the bolts only.
• Do not fully torque the inner control arm bolts yet.

Step 12: Connect the Ball Joint to the Steering Knuckle

• Guide the new ball joint stud into the steering knuckle.
• Install the new ball joint nut by hand.
• Use a 24mm socket and 1/2-inch drive torque wrench to tighten the ball joint nut to 115 Nm (85 ft-lbs).

Step 13: Repeat on the Other Side

• Repeat Steps 6 through 12 on the opposite front lower control arm.
• Replace both front lower control arms as a pair for even handling and braking feel.

Step 14: Set the Suspension to Ride Height

• Use the floor jack rated 3-ton minimum under the outer lower control arm area to carefully raise the suspension until your hub-to-fender measurement matches the number recorded earlier.
• This simulates normal ride height while the vehicle is still safely supported by jack stands.
• Do not lift the vehicle off the jack stands.

Step 15: Torque the Inner Control Arm Bolts

• With the suspension held at ride height, use the 18mm socket, 18mm wrench, and 1/2-inch drive torque wrench to tighten the inner control arm bolts.
• If equipped with the larger hardware, use the 24mm socket and 24mm wrench.
• Tighten the front lower control arm-to-subframe bolts to 184 Nm (136 ft-lbs).
• Ride-height tightening protects new bushings.

Step 16: Reinstall the Lower Splash Shield

• Use the flat trim clip removal tool by hand to reinstall plastic push clips.
• Use the 10mm socket to reinstall lower shield fasteners.
• Snug the small shield fasteners only; do not overtighten plastic panels.

Step 17: Reinstall the Front Wheels

• Install both front wheels by hand.
• Use the 21mm socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.
• Lower your Mustang carefully with the floor jack rated 3-ton minimum.
• Use the 21mm socket and 1/2-inch drive torque wrench to tighten the wheel lug nuts to 204 Nm (150 ft-lbs).

---

✅ After Repair

• ✅ Turn the steering wheel fully left and right while parked and listen for binding or popping.
• ✅ Test drive slowly at first. Listen for clunks and confirm the steering feels controlled.
• ✅ Recheck the wheel lug nut torque after the first short drive: 204 Nm (150 ft-lbs).
• ✅ Schedule a front wheel alignment immediately. New control arms can change camber and toe.
• ✅ Avoid aggressive driving until the alignment is completed.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,250 (parts + labor + alignment)

DIY Cost: $250-$550 (parts only, alignment extra)

You Save: $350-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
