🔧 Canyon - Suspension Bushing Replacement

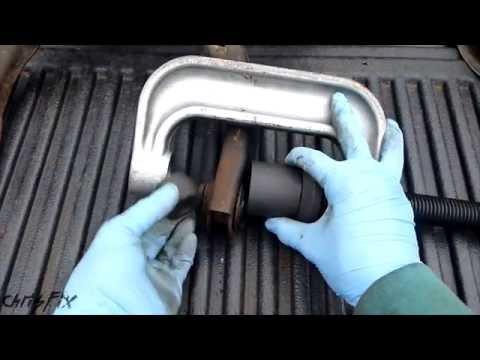

Suspension bushings are rubber sleeves that cushion the control arms and suspension links. On your Canyon, most front suspension bushing work is done by replacing the complete control arm assembly instead of pressing individual bushings in and out.

Assumption: This guide covers the front lower control arm bushings by replacing the front lower control arms, which is the most DIY-friendly and reliable method.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Canyon with jack stands before working underneath it. Never rely on a floor jack alone.
• ⚠️ The front coil spring and suspension can store energy. Do not remove spring-related parts unless the lower control arm is safely supported.
• ⚠️ After control arm replacement, your Canyon needs a professional wheel alignment.
• ⚠️ Do not fully tighten control arm pivot bolts while the suspension is hanging. Final tightening must be done at normal ride height to prevent premature bushing failure.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 3/8-inch drive ratchet
• 15mm socket
• 18mm socket
• 21mm socket
• 22mm socket
• 15mm wrench
• 18mm wrench
• 21mm wrench
• 22mm wrench
• Trim clip remover
• Ball joint separator (specialty)
• Dead blow hammer
• Pry bar set
• Needle nose pliers
• Paint marker
• Penetrating oil
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm assembly - Driver side - Qty: 1
• Front lower control arm assembly - Passenger side - Qty: 1
• Front lower control arm mounting bolts and nuts - Qty: 1 kit
• Front lower ball joint nut - Qty: 2
• Sway bar link nuts - Qty: 2

Best practice: Replace lower control arms in pairs so your Canyon tracks evenly and the bushings age at the same rate.

---

📋 Before You Begin

• 🅿️ Park your Canyon on level ground and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🖊️ Use a paint marker to mark the original position of the lower control arm mounting bolts. This helps get the alignment close enough to drive safely to an alignment shop.
• 🛞 Loosen the front wheel lug nuts slightly before lifting the truck.
• 🧰 A ball joint separator is a tool that separates the tapered ball joint stud from the steering knuckle without damaging nearby parts.
• 🔩 Penetrating oil helps loosen rusted bolts. Spray the control arm bolts, sway bar link nuts, and lower ball joint nut before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheels

• Use a 22mm socket and 1/2-inch drive breaker bar to loosen the front wheel lug nuts about one turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Raise and Support the Front of the Truck

• Use a floor jack under the front frame crossmember to lift your Canyon.
• Place jack stands under the frame rails on both sides.
• Slowly lower the truck onto the jack stands.
• Keep the floor jack nearby to support the lower control arm later.

Step 3: Remove the Front Wheels

• Use a 22mm socket to remove the loosened lug nuts.
• Remove both front wheels and set them aside flat.

Step 4: Support the Lower Control Arm

• Place the floor jack under the outer end of the lower control arm, close to the ball joint.
• Raise the jack just enough to support the arm. Do not lift the truck off the jack stands.
• This prevents the suspension from dropping suddenly when the ball joint is separated.

Step 5: Disconnect the Sway Bar Link from the Lower Control Arm

• Use an 18mm wrench and 18mm socket to remove the sway bar link nut from the lower control arm.
• If the stud spins, hold the stud with the correct wrench while turning the nut with the 18mm socket.
• Push the sway bar link out of the lower control arm.

Step 6: Remove the Lower Ball Joint Nut

• Use a 21mm socket and 1/2-inch drive breaker bar to loosen and remove the lower ball joint nut.
• If there is a cotter pin, use needle nose pliers to remove it first.
• Thread the nut back on a few turns by hand to protect the threads while separating the joint.

Step 7: Separate the Lower Ball Joint

• Use a ball joint separator between the lower control arm ball joint and the steering knuckle.
• Tighten or strike the separator as designed until the taper pops loose.
• Use a dead blow hammer only on the separator tool, not on the threaded ball joint stud.
• Remove the ball joint nut completely with the 21mm socket.
• The pop sound is normal.

Step 8: Mark the Control Arm Bolt Positions

• Use a paint marker to mark the position of the lower control arm mounting cams or washers.
• Mark both the front and rear lower control arm mounting points.
• This does not replace an alignment, but it helps keep the steering close for a short drive.

Step 9: Remove the Lower Control Arm Mounting Bolts

• Use a 21mm socket, 22mm socket, 21mm wrench, or 22mm wrench as needed to remove the lower control arm pivot bolts and nuts.
• Use a breaker bar if the bolts are tight.
• Support the control arm with one hand as the last bolt comes out.
• Use a pry bar to gently work the control arm out of the frame brackets.

Step 10: Compare the Old and New Control Arm

• Place the old and new lower control arms side by side.
• Confirm the bushing shape, ball joint position, and mounting points match.
• Use shop towels to clean dirt from the frame mounting pockets.

Step 11: Install the New Lower Control Arm

• Lift the new lower control arm into the frame brackets by hand.
• Use a pry bar gently if the bushing sleeves need help lining up.
• Install the pivot bolts and nuts by hand first.
• Do not fully tighten the pivot bolts yet.

Step 12: Reconnect the Lower Ball Joint

• Use the floor jack under the lower control arm to raise the ball joint stud into the steering knuckle.
• Install the new lower ball joint nut by hand.
• Use a 21mm socket and torque wrench to tighten the lower ball joint nut to Torque to 70 Nm (52 ft-lbs) plus 90 degrees.
• If the replacement nut uses a cotter pin, use needle nose pliers to install a new cotter pin after tightening.

Step 13: Reconnect the Sway Bar Link

• Insert the sway bar link stud into the lower control arm.
• Install the new nut by hand.
• Use an 18mm socket, 18mm wrench, and torque wrench to tighten the sway bar link nut to Torque to 65 Nm (48 ft-lbs).

Step 14: Repeat on the Other Side

• Repeat Steps 4 through 13 on the opposite side using the same tools.
• Replace both sides before final tightening so the suspension sits evenly.

Step 15: Set the Suspension to Ride Height

• Reinstall the front wheels temporarily using the 22mm socket.
• Use the floor jack to raise your Canyon slightly, remove the jack stands, and lower it onto the ground.
• Roll the truck forward and backward a few feet to settle the suspension.
• This puts the bushings in their normal resting position before final tightening.

Step 16: Final-Tighten the Lower Control Arm Bolts

• With your Canyon sitting at normal ride height, use a 21mm socket, 22mm socket, 21mm wrench, 22mm wrench, and torque wrench to tighten the lower control arm pivot bolts.
• Tighten the lower control arm pivot fasteners to Torque to 175 Nm (129 ft-lbs).
• Keep the paint marks close to their original positions until the alignment is performed.

Step 17: Final-Torque the Wheels

• Use a 22mm socket and torque wrench to tighten the wheel lug nuts in a star pattern.
• Tighten the wheel lug nuts to Torque to 190 Nm (140 ft-lbs).
• Star pattern keeps wheels seated evenly.

---

✅ After Repair

• ✅ Bounce the front of your Canyon a few times and listen for clunks.
• ✅ Test drive slowly at first. Check steering feel, braking, and any unusual noises.
• ✅ Schedule a professional front wheel alignment immediately after this repair.
• ✅ Recheck lug nut torque after 25-50 miles using a 22mm socket and torque wrench.
• ✅ If the steering wheel is off-center, the truck pulls, or tires squeal, avoid highway driving until alignment is completed.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor + alignment)

DIY Cost: $250-$550 (parts only, alignment not included)

You Save: $300-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
