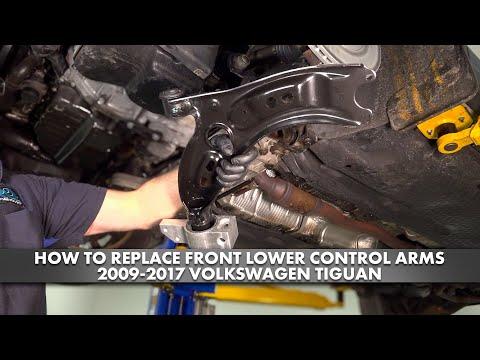

🔧 Tiguan - Front Lower Control Arm Replacement

This job replaces the front lower control arms on your Tiguan. The control arm holds the front wheel in the correct position, and worn bushings or ball joints can cause clunks, loose steering, uneven tire wear, or pulling.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support your Tiguan with jack stands before working underneath. A floor jack alone is not safe.
• ⚠️ Final tightening of the control arm bushing bolts must be done at normal ride height. Tightening them while the suspension hangs can damage the new rubber bushings.
• ⚠️ Wear safety glasses. Rust and road dirt can fall while you work.
• ⚠️ A wheel alignment is required after replacing control arms.
• ⚠️ Replace control arms in pairs when possible for even steering and braking feel.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm lug bolt socket
• Breaker bar 1/2-inch drive
• Ratchet 1/2-inch drive
• Torque wrench 1/2-inch drive
• Torque angle gauge (specialty)
• 16mm socket
• 18mm socket
• 21mm socket
• 16mm wrench
• 18mm wrench
• 21mm wrench
• Triple-square M12 socket
• Ball joint separator (specialty)
• Pry bar 18-inch
• Rubber mallet
• Paint marker
• Measuring tape
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm, left - Qty: 1
• Front lower control arm, right - Qty: 1
• Front control arm front mounting bolt - Qty: 2
• Front control arm rear mounting bolt - Qty: 2
• Front ball joint nut - Qty: 2
• Front wheel lug bolts - Qty: 10 if damaged or corroded

---

📋 Before You Begin

• 🚗 Park your Tiguan on level ground with the parking brake set.
• 🧱 Place wheel chocks behind the rear wheels.
• 📏 Measure from the center of the front wheel hub to the lower edge of the fender before lifting. This is your normal ride-height reference.
• 🖊️ Use a paint marker to mark the current control arm bolt positions. This helps keep the alignment close enough to drive to the alignment shop.
• 💧 Spray penetrating oil on the control arm bolts and ball joint fasteners.
• 💡 A bushing is the rubber mount inside the control arm that absorbs bumps and road vibration.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Bolts

• Use a 17mm lug bolt socket and breaker bar 1/2-inch drive to loosen each front wheel lug bolt about one turn.
• Do this while the tires are still touching the ground so the wheels do not spin.
• Loosen only, do not remove.

Step 2: Raise and Support the Vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front of your Tiguan at the front jacking point.
• Place jack stands (rated 3-ton minimum) under the approved side support points.
• Lower the vehicle gently onto the jack stands and confirm it is stable.

Step 3: Remove the Front Wheels

• Use a 17mm lug bolt socket and ratchet 1/2-inch drive to remove the lug bolts.
• Remove both front wheels and set them flat aside.

Step 4: Mark the Control Arm Position

• Use a paint marker to mark around the front and rear control arm mounting areas.
• Use a measuring tape to record the control arm position if you see slotted holes or visible alignment marks.
• This is only a temporary reference. Your Tiguan still needs an alignment afterward.

Step 5: Disconnect the Outer Ball Joint

• Use a 16mm socket and 16mm wrench to remove the ball joint nut at the outside end of the control arm.
• The ball joint is the pivot that lets the wheel turn and move up and down.
• If the joint is stuck, use a ball joint separator (specialty) to release it from the steering knuckle.
• Use a rubber mallet only for light tapping. Do not damage the ball joint threads.
• Install torque later: 60 Nm (44 ft-lbs)

Step 6: Remove the Rear Control Arm Mounting Bolt

• Use an 18mm socket and breaker bar 1/2-inch drive to loosen the rear control arm mounting bolt.
• If the nut turns with the bolt, hold it with an 18mm wrench.
• Remove the bolt and note which direction it came out.

Step 7: Remove the Front Control Arm Mounting Bolt

• Use a 21mm socket and 21mm wrench to loosen the front control arm mounting bolt if it uses a hex-head bolt.
• If the bolt has a star-shaped internal drive, use a Triple-square M12 socket with the breaker bar 1/2-inch drive.
• Remove the bolt while supporting the control arm by hand.

Step 8: Remove the Old Control Arm

• Use a pry bar 18-inch to gently work the control arm out of the subframe pockets.
• Do not pry against the brake hose, CV axle boot, or wiring.
• Remove the old control arm from your Tiguan.
• Take a photo before removing parts.

Step 9: Install the New Control Arm

• Place the new front lower control arm into the same position as the old one.
• Use a pry bar 18-inch only as needed to align the bushing sleeves with the mounting holes.
• Install the new front and rear mounting bolts by hand first.
• Do not fully tighten the bushing bolts yet.

Step 10: Reconnect the Ball Joint

• Guide the ball joint stud into the steering knuckle by hand.
• Install the new front ball joint nut.
• Use a 16mm socket and torque wrench 1/2-inch drive to tighten the ball joint nut to Torque to 60 Nm (44 ft-lbs).

Step 11: Set the Suspension to Ride Height

• Use the floor jack (rated 3-ton minimum) under the outer control arm area to raise the suspension slowly.
• Use the measuring tape to match the hub-center-to-fender measurement you recorded earlier.
• This puts the new bushings in their normal resting position.

Step 12: Tighten the Control Arm Mounting Bolts

• Use an 18mm socket, 18mm wrench, torque wrench 1/2-inch drive, and torque angle gauge (specialty) to tighten the rear control arm bolt to Torque to 70 Nm (52 ft-lbs) plus 90 degrees.
• Use a 21mm socket or Triple-square M12 socket, 21mm wrench, torque wrench 1/2-inch drive, and torque angle gauge (specialty) to tighten the front control arm bolt to Torque to 70 Nm (52 ft-lbs) plus 90 degrees.
• A torque angle gauge measures the extra turn after the torque wrench clicks.
• Ride height tightening protects bushings.

Step 13: Repeat on the Other Side

• Use the same tools and steps to replace the opposite front lower control arm.
• Left and right control arms are different shapes, so compare before installing.

Step 14: Reinstall the Front Wheels

• Place each wheel onto the hub by hand.
• Thread the lug bolts by hand first to avoid cross-threading.
• Use a 17mm lug bolt socket and ratchet 1/2-inch drive to snug the lug bolts in a star pattern.

Step 15: Lower the Vehicle and Torque the Wheels

• Use the floor jack (rated 3-ton minimum) to lift the vehicle slightly off the jack stands.
• Remove the jack stands (rated 3-ton minimum) and lower your Tiguan until the tires touch the ground.
• Use a 17mm lug bolt socket and torque wrench 1/2-inch drive to tighten the lug bolts in a star pattern to Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• ✅ Drive slowly at first and listen for clunks, rubbing, or popping noises.
• ✅ Check that the steering wheel returns smoothly after turning.
• ✅ Recheck lug bolt torque after a short drive using a 17mm lug bolt socket and torque wrench 1/2-inch drive.
• ✅ Get a four-wheel alignment as soon as possible.
• ✅ If the steering wheel is off-center or the vehicle pulls strongly, avoid highway driving until aligned.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor, alignment not always included)

DIY Cost: $180-$450 (parts only)

You Save: $520-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4 hours.

---
