🔧 Odyssey - Front Lower Ball Joint Replacement

This repair replaces a worn front lower ball joint on your Odyssey. The lower ball joint connects the front lower control arm to the steering knuckle and lets the wheel steer while the suspension moves up and down.

Difficulty Level: Advanced | Estimated Time: 2-4 hours per side

Assumption: This covers the front lower ball joints; replace left and right in pairs if one is worn.

---

⚠️ Safety & Precautions

• ⚠️ Support your Odyssey with jack stands before working underneath. Never rely on a jack alone.
• ⚠️ The front suspension is heavy. Keep fingers clear when separating the ball joint from the steering knuckle.
• ⚠️ Do not hammer directly on the steering knuckle’s machined surfaces.
• ⚠️ If the ball joint boot is torn and the joint has play, avoid driving until repaired.
• ⚠️ Battery disconnect is not required for this repair.
• ⚠️ A wheel alignment is recommended after replacing ball joints or disturbing suspension fasteners.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 17mm socket
• 19mm socket
• 22mm socket
• 17mm wrench
• 19mm wrench
• Needle-nose pliers
• Ball joint separator (specialty)
• Ball joint press kit (specialty)
• Honda-size ball joint press adapters (specialty)
• Snap ring pliers (specialty)
• Hammer
• Brass punch
• Pry bar
• Paint marker
• Wire brush
• Penetrating oil
• Brake cleaner
• Shop rags
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint castle nut - Qty: 2
• Ball joint cotter pin - Qty: 2
• Ball joint snap ring - Qty: 2

Note: Replace in pairs. If your replacement ball joints come with new nuts, cotter pins, and snap rings, use the new hardware.

---

📋 Before You Begin

• Park your Odyssey on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the vehicle.
• A ball joint separator is a tool that safely pops the tapered ball joint stud loose from the steering knuckle.
• A ball joint press kit is a large C-clamp-style tool used to press the old joint out and the new joint in.
• A snap ring is a spring steel retaining ring that locks the ball joint into the steering knuckle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 19mm lug nut socket and 1/2-inch drive breaker bar to loosen the front lug nuts about half a turn.
• Do this while the tire is still touching the ground so the wheel does not spin.
• Break nuts loose before lifting.

Step 2: Raise and Support the Front

• Use a floor jack at the front center jacking point to raise your Odyssey.
• Place jack stands under the proper front support points.
• Lower the vehicle gently onto the stands and lightly shake the vehicle to confirm it is stable.
• Keep the floor jack nearby as a backup support, but do not rely on it alone.

Step 3: Remove the Wheel

• Use the 19mm lug nut socket to remove the lug nuts.
• Remove the wheel and place it flat under the rocker area as an extra safety backup.

Step 4: Clean and Inspect the Ball Joint Area

• Use a wire brush to clean dirt and rust from the lower ball joint, castle nut, cotter pin, and snap ring area.
• Spray the ball joint nut and snap ring area with penetrating oil.
• Use safety glasses because rust and dirt can fall while you work.

Step 5: Remove the Cotter Pin

• Use needle-nose pliers to straighten the cotter pin ends at the ball joint castle nut.
• Pull the cotter pin out with the needle-nose pliers.
• Discard the old cotter pin. Always install a new one.

Step 6: Loosen the Ball Joint Castle Nut

• Use a 17mm socket or 17mm wrench to loosen the ball joint castle nut.
• Do not fully remove it yet. Leave it threaded on a few turns to catch the joint when it pops loose.
• Leaving the nut on prevents sudden drop.

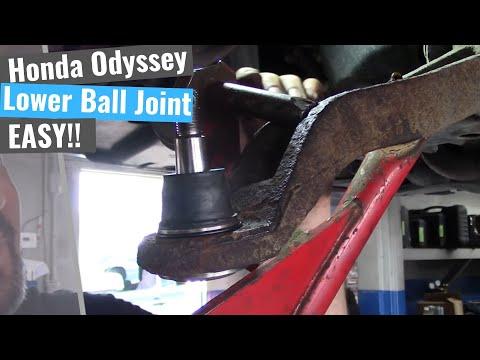

Step 7: Separate the Ball Joint from the Control Arm

• Position the ball joint separator between the lower control arm and the ball joint stud area.
• Tighten the separator with the correct socket from your kit, usually a 19mm socket or 22mm socket, until the taper pops loose.
• If needed, tap the separator body lightly with a hammer to help release tension.
• Remove the castle nut fully with the 17mm socket.

Step 8: Move the Lower Control Arm Down

• Use a pry bar to carefully push the lower control arm downward.
• Pull the steering knuckle outward just enough to clear the ball joint stud from the lower control arm.
• Do not stretch the brake hose or ABS wheel speed sensor wiring.

Step 9: Remove the Ball Joint Snap Ring

• Use snap ring pliers to remove the snap ring from the top side of the ball joint at the steering knuckle.
• If the ring is rusty, use penetrating oil and clean the groove with a wire brush.
• Discard the old snap ring.

Step 10: Press Out the Old Ball Joint

• Set up the ball joint press kit with the correct Honda-size ball joint press adapters.
• Position the receiving cup under the ball joint so the old joint can press downward out of the steering knuckle.
• Use a 22mm socket and 1/2-inch drive breaker bar to tighten the press screw slowly.
• Press the old ball joint fully out of the steering knuckle.
• If the joint is stuck, release pressure, add penetrating oil, and make sure the adapters are straight.

Step 11: Clean the Ball Joint Bore

• Use brake cleaner and shop rags to clean the ball joint bore in the steering knuckle.
• Use a wire brush to clean the snap ring groove.
• Do not grind or enlarge the bore.

Step 12: Press In the New Ball Joint

• Position the new front lower ball joint squarely in the steering knuckle.
• Set up the ball joint press kit so force is applied only to the outer shell of the new joint, not the stud or boot.
• Use a 22mm socket and 1/2-inch drive breaker bar to tighten the press screw slowly.
• Press the ball joint in until it seats fully against the steering knuckle shoulder.
• Go slowly and keep it straight.

Step 13: Install the New Snap Ring

• Use snap ring pliers to install the new snap ring into the groove.
• Confirm the snap ring is fully seated all the way around.
• Use a brass punch and hammer only for light seating taps if needed.

Step 14: Reconnect the Ball Joint to the Lower Control Arm

• Use a pry bar to lower the control arm carefully.
• Guide the new ball joint stud into the lower control arm hole.
• Install the new castle nut by hand first to avoid cross-threading.

Step 15: Tighten the Ball Joint Castle Nut

• Use a 17mm socket and 1/2-inch drive torque wrench to tighten the castle nut.
• Torque to 59 Nm (43 ft-lbs), then tighten only enough more to align the castle nut slot with the cotter pin hole.
• Do not loosen the nut to line up the cotter pin hole.

Step 16: Install the New Cotter Pin

• Insert the new cotter pin through the ball joint stud hole.
• Use needle-nose pliers to bend the cotter pin ends around the castle nut.
• Make sure the cotter pin cannot contact the wheel or brake parts.

Step 17: Reinstall the Wheel

• Lift the wheel onto the hub and install the lug nuts by hand.
• Use the 19mm lug nut socket to snug the lug nuts in a star pattern.

Step 18: Lower and Torque the Wheel

• Use the floor jack to raise the vehicle slightly and remove the jack stands.
• Lower your Odyssey until the tire just touches the ground.
• Use the 19mm lug nut socket and 1/2-inch drive torque wrench to tighten the lug nuts in a star pattern.
• Torque to 127 Nm (94 ft-lbs).

Step 19: Repeat on the Other Side

• Repeat the same steps for the opposite front lower ball joint.
• Use the same tools and torque specs.
• Replacing both sides keeps steering and suspension behavior even.

---

✅ After Repair

• Turn the steering wheel fully left and right while parked. Listen for clunks or binding.
• Check that both cotter pins are installed and both snap rings are fully seated.
• Test drive slowly first. Listen for suspension noise over small bumps.
• Recheck the lug nut torque after 25-50 miles using a 19mm lug nut socket and 1/2-inch drive torque wrench.
• Schedule a front wheel alignment after the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 for both front lower ball joints

DIY Cost: $80-$220 for parts only

You Save: $420-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
