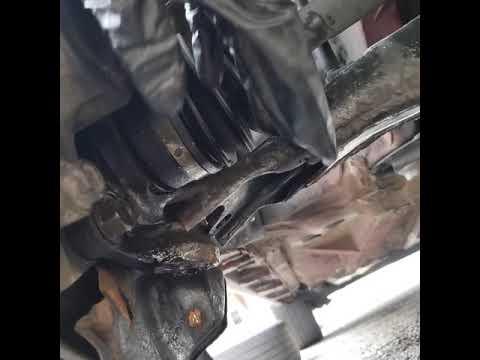

🔧 Ball Joints - Front Lower Ball Joint Replacement

This job replaces the front lower ball joints on both sides. On your Corolla, the ball joint is part of the front suspension and connects the steering knuckle to the lower control arm. If you hear clunks, feel loose steering, or see torn boots, this repair is usually the fix.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work on a flat surface with the parking brake set and rear wheels chocked.
• Use jack stands. Never rely on a floor jack alone.
• The front suspension is load-bearing. Support the lower arm or knuckle when separating the ball joint.
• If the car has an ABS wire clipped to the knuckle, do not pull on it.
• Replace ball joints in pairs to keep steering feel even side to side.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm lug wrench
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• Breaker bar
• Torque wrench
• Ratchet
• Penetrating oil
• Ball joint separator (specialty)
• Hammer
• Flat-blade screwdriver
• Needle-nose pliers
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint set - Qty: 2
• Ball joint cotter pins - Qty: 2
• Replacement hardware kit - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the steering wheel straight.
• Loosen the front lug nuts before lifting the car.
• Lift the front and support it securely on jack stands.
• Keep the ignition off while working near the steering and wheel speed sensor wiring.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the wheel

• Use the 21mm lug wrench to loosen the front lug nuts while the tire is still on the ground.
• Lift the front with the floor jack and support it with jack stands.
• Remove the lug nuts and wheel.

Step 2: Unfasten nearby components

• Use the 10mm socket or 12mm socket to remove any brackets holding the ABS wire or brake hose to the knuckle.
• Set the hardware aside so it goes back in the same place.

Step 3: Separate the ball joint from the knuckle

• Use the needle-nose pliers to remove the cotter pin from the ball joint castle nut.
• Use the 19mm socket and breaker bar to remove the castle nut.
• Use the ball joint separator (specialty) to break the taper loose from the steering knuckle.
• Do not hammer directly on the stud.

Step 4: Remove the ball joint from the lower control arm

• Use the 14mm socket or 17mm socket to remove the ball joint mounting bolts from the lower control arm.
• Pull the ball joint out of the arm.
• Clean the mounting area with a rag.

Step 5: Install the new ball joint

• Position the new ball joint in the lower control arm.
• Use the 14mm socket or 17mm socket to install the mounting bolts by hand first.
• Torque the ball joint mounting bolts to 49 Nm (36 ft-lbs).

Step 6: Reconnect the knuckle

• Insert the ball joint stud into the steering knuckle.
• Use the 19mm socket to install the castle nut.
• Torque the castle nut to 70 Nm (52 ft-lbs), then continue only as needed to align the cotter pin hole.
• Install a new cotter pin with needle-nose pliers.

Step 7: Reinstall the brake hose and ABS brackets

• Use the 10mm socket or 12mm socket to reinstall any brackets removed earlier.
• Make sure the hose and wire are clipped back in place and not twisted.

Step 8: Reinstall the wheel and lower the car

• Install the wheel and hand-tighten the lug nuts.
• Lower the car with the floor jack.
• Torque the lug nuts to 103 Nm (76 ft-lbs) in a star pattern using the torque wrench.

---

✅ After Repair

• Start the car and turn the steering wheel lock to lock to check for noise.
• Test drive slowly at first and listen for clunks or pops.
• Get a front end alignment checked soon after the repair.
• Recheck the lug nut torque after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$600 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $240-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
