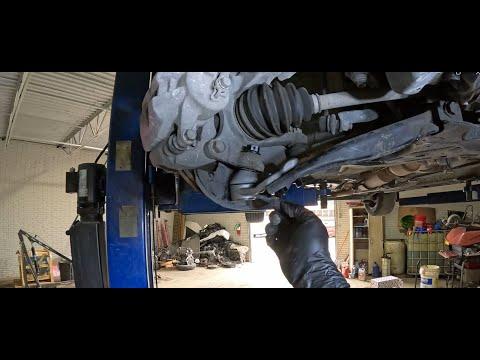

🔧 Ball Joint Replacement - Front Suspension Repair

This repair covers the front lower ball joints on your Corolla. The ball joint connects the lower control arm to the steering knuckle, so wear here can cause clunks, loose steering, and uneven tire wear. If the joint is badly worn or riveted in place, replacing the full lower control arm may be the better fix.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work on a flat surface and support the car with jack stands before removing any suspension parts.
• Use wheel chocks on the rear wheels.
• Keep hands clear of the knuckle and control arm while separating the joint. It can move suddenly.
• If the lower ball joint uses a cotter pin, replace it with a new one. Never reuse it.
• Do not let the brake hose hang unsupported while the knuckle is moved aside.
• A wheel alignment is required after this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 19mm socket
• 17mm socket
• 14mm socket
• Breaker bar
• Ratchet
• Torque wrench
• Ball joint separator (specialty)
• Hammer
• Needle-nose pliers
• Penetrating oil
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Cotter pins - Qty: 2
• Ball joint mounting nuts - Qty: 4
• Front wheel alignment - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front lug nuts before lifting the car.
• Raise the front and support it securely on jack stands.
• Remove the front wheels.
• Spray the ball joint fasteners with penetrating oil and let it soak.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheel

• Use a 21mm socket to remove the lug nuts.
• Set the wheel aside.

Step 2: Free the ball joint from the steering knuckle

• Use needle-nose pliers to remove the cotter pin, if equipped.
• Remove the castle nut with a 19mm socket.
• Use a ball joint separator (specialty) to break the taper loose.
• Tap the knuckle, not the stud.

Step 3: Remove the ball joint from the control arm

• Use a 14mm socket to remove the ball joint mounting bolts.
• Remove the old ball joint from the lower control arm.
• Clean the mounting surface with a wire brush.

Step 4: Install the new ball joint

• Position the new ball joint in the control arm.
• Install the mounting bolts by hand first.
• Use a 14mm socket to tighten the bolts.
• Torque to 49 Nm (36 ft-lbs).

Step 5: Reconnect the ball joint to the knuckle

• Align the stud with the steering knuckle.
• Install the castle nut using a 19mm socket.
• Torque to 103 Nm (76 ft-lbs).
• Install a new cotter pin with needle-nose pliers.

Step 6: Reinstall the wheel

• Put the wheel back on.
• Use a 21mm socket to install the lug nuts snug.
• Lower the car and torque the lug nuts to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the car and slowly turn the steering wheel lock-to-lock.
• Check for clunks, looseness, or binding.
• Drive slowly first and listen for any suspension noise.
• Schedule a front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$180 (parts only)

You Save: $270-$520 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
