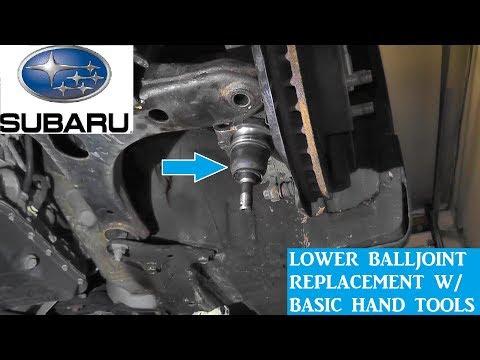

🔧 Outback - Front Lower Ball Joint Replacement

This repair replaces the front lower ball joint, which connects the steering knuckle to the lower control arm. A worn ball joint can cause clunking, loose steering, uneven tire wear, or unsafe wheel movement.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Support your Outback with jack stands before working underneath. Never rely on a jack alone.
• ⚠️ The front suspension is heavy. Keep fingers clear when separating the ball joint.
• ⚠️ Do not hammer directly on the axle shaft, wheel bearing, or brake rotor.
• ⚠️ Replace ball joints in pairs if both sides show wear or mileage is high.
• ⚠️ An alignment is strongly recommended after this repair.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm lug nut socket
• Breaker bar 1/2-inch drive
• Torque wrench 1/2-inch drive
• Ratchet 3/8-inch drive
• Ratchet 1/2-inch drive
• 14mm socket
• 17mm socket
• 19mm socket
• 14mm wrench
• 17mm wrench
• 19mm wrench
• Flat blade screwdriver
• Needle nose pliers
• Ball joint separator (specialty)
• Ball joint press kit (specialty)
• Pickle fork separator (specialty)
• Hammer 2-lb
• Pry bar 18-inch
• Wire brush
• Penetrating oil
• Paint marker
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 1 per side
• Front lower ball joint pinch bolt and nut - Qty: 1 per side
• Front lower ball joint cotter pin - Qty: 1 per side
• Front lower ball joint castle nut - Qty: 1 per side
• Anti-seize compound - Qty: 1 small tube

---

📋 Before You Begin

• Park your Outback on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen the front lug nuts slightly before lifting the vehicle.
• Spray penetrating oil on the ball joint pinch bolt and lower castle nut. Let it soak for at least 10-15 minutes.
• A ball joint separator is a tool that pushes tapered suspension parts apart without damaging nearby parts.
• A ball joint press is a C-shaped tool that presses the old joint out and the new joint in straight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 19mm lug nut socket and breaker bar 1/2-inch drive to loosen the front lug nuts about half a turn.
• Do not fully remove the lug nuts yet.
• Loosen before lifting.

Step 2: Lift and Support the Vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front of your Outback at the front center jacking point.
• Place jack stands (rated 3-ton minimum) under the front side support points.
• Lower the vehicle gently onto the jack stands.
• Shake the vehicle lightly to confirm it is stable before working.

Step 3: Remove the Front Wheel

• Use a 19mm lug nut socket and ratchet 1/2-inch drive to remove the lug nuts.
• Remove the wheel and set it flat under the side of the vehicle as an extra safety backup.

Step 4: Clean and Mark the Ball Joint Area

• Use a wire brush to clean rust and dirt from the lower ball joint, pinch bolt, and control arm area.
• Use penetrating oil again on the pinch bolt and the lower ball joint nut.
• Use a paint marker to mark the ball joint position as a visual reference.

Step 5: Remove the Ball Joint Cotter Pin and Castle Nut

• Use needle nose pliers to straighten and remove the cotter pin from the lower ball joint stud.
• Use a 19mm socket and ratchet 1/2-inch drive to remove the castle nut from the ball joint stud.
• If the stud spins, apply light upward pressure under the control arm with a floor jack (rated 3-ton minimum), then remove the nut.

Step 6: Separate the Ball Joint from the Lower Control Arm

• Install the ball joint separator (specialty) between the lower control arm and the ball joint stud.
• Tighten the separator until the taper pops free.
• If using a pickle fork separator (specialty), place it between the joint and control arm, then strike it with a hammer 2-lb.
• Be aware that a pickle fork usually damages the rubber boot, which is okay when replacing the joint.

Step 7: Remove the Steering Knuckle Pinch Bolt

• Use a 14mm socket and 14mm wrench to remove the pinch bolt and nut at the steering knuckle.
• The pinch bolt clamps the ball joint into the steering knuckle.
• Discard the old pinch bolt and nut if replacements are available.

Step 8: Remove the Ball Joint from the Steering Knuckle

• Use a flat blade screwdriver carefully in the knuckle split to slightly open the clamp area.
• Use a pry bar 18-inch to push the lower control arm downward while pulling the ball joint out of the steering knuckle.
• If stuck, tap the side of the steering knuckle near the ball joint bore with a hammer 2-lb.
• Do not strike the axle shaft or wheel bearing.

Step 9: Press the Old Ball Joint Out of the Control Arm

• Set up the ball joint press kit (specialty) with the correct receiver cup under the control arm.
• Use a ratchet 1/2-inch drive and the press screw to push the old ball joint out of the lower control arm.
• Keep the press straight so it does not bend the control arm opening.
• Straight pressure prevents damage.

Step 10: Press the New Ball Joint Into the Control Arm

• Clean the lower control arm bore with a wire brush.
• Apply a very light coat of anti-seize compound to the outside edge of the new ball joint only.
• Use the ball joint press kit (specialty) to press the new ball joint into the control arm until fully seated.
• Make sure the joint sits square and flush in the control arm.

Step 11: Install the Ball Joint into the Steering Knuckle

• Guide the ball joint upper stem into the steering knuckle by hand.
• Use a floor jack (rated 3-ton minimum) under the lower control arm to raise it slowly until the ball joint seats fully in the knuckle.
• Install the new pinch bolt and nut using a 14mm socket and 14mm wrench.
• Torque to 49 Nm (36 ft-lbs).

Step 12: Attach the Ball Joint Stud to the Lower Control Arm

• Insert the ball joint stud through the lower control arm.
• Install the new castle nut by hand first to avoid cross-threading.
• Use a 19mm socket and torque wrench 1/2-inch drive to tighten the castle nut.
• Torque to 39 Nm (29 ft-lbs), then tighten only enough to align the cotter pin hole.
• Install a new cotter pin using needle nose pliers.

Step 13: Reinstall the Wheel

• Place the wheel back on the hub.
• Thread the lug nuts by hand.
• Use a 19mm lug nut socket and ratchet 1/2-inch drive to snug the lug nuts in a star pattern.

Step 14: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack (rated 3-ton minimum) to lift the vehicle slightly off the jack stands.
• Remove the jack stands (rated 3-ton minimum).
• Lower the vehicle to the ground.
• Use a 19mm lug nut socket and torque wrench 1/2-inch drive to tighten the lug nuts in a star pattern.
• Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• ✅ Turn the steering wheel left and right while parked. Listen for binding, popping, or scraping.
• ✅ Test drive slowly first. Start with a short drive around the block.
• ✅ Recheck the ball joint area for movement, loose hardware, or torn boots.
• ✅ Recheck lug nut torque after the first short drive.
• ✅ Schedule a front alignment to protect the tires and keep steering centered.
• ✅ If your Outback still clunks, inspect the front sway bar links, control arm bushings, and strut mounts.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 for one side, $650-$1,100 for both sides

DIY Cost: $45-$120 per side for parts only

You Save: $250-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
