🔧 Ranger - Front Lower Ball Joint Replacement

On your Ranger, the front lower ball joints are serviced with the lower control arms. That means the correct repair is to replace the front lower control arm assembly, which includes the ball joint and bushings already installed.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support your Ranger with jack stands before removing any suspension parts.
• ⚠️ Never rely on a floor jack alone. A jack can fail without warning.
• ⚠️ The lower control arm supports wheel movement and alignment. A loose fastener can cause loss of steering control.
• ⚠️ Do not hammer directly on the steering knuckle. Use the correct separator tool.
• ⚠️ Replacing a lower control arm changes alignment. A professional wheel alignment is required after repair.
• ⚠️ Tighten final control arm bushing bolts at normal ride height to prevent premature bushing damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 18mm socket
• 21mm socket
• 24mm socket
• 18mm wrench
• 21mm wrench
• 24mm wrench
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• 1/2-inch drive extension set
• Torque wrench 50-250 Nm range
• Ball joint separator tool (specialty)
• Pickle fork separator (specialty)
• Dead-blow hammer
• Pry bar 24-inch
• Paint marker
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm assembly with ball joint - Qty: 1 per side
• Lower ball joint nut - Qty: 1 per side
• Lower control arm mounting bolts and nuts - Qty: as needed
• Front wheel alignment service - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Ranger on level ground, shift to Park, and set the parking brake.
• 🛞 Chock the rear wheels with wheel chocks.
• 🔩 Loosen the front wheel lug nuts slightly while the tire is still on the ground using a 21mm lug nut socket and 1/2-inch drive breaker bar.
• 🧭 Use a paint marker to mark the position of alignment cams or washers before removal. These marks help get the alignment close enough to drive to a shop.
• 🛠️ A ball joint separator tool pushes the ball joint stud out of the steering knuckle without damaging nearby parts.
• 🛠️ A pickle fork is a wedge-shaped separator. It works well, but it usually damages rubber boots.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Wheel Lug Nuts

• Use a 21mm lug nut socket and 1/2-inch drive breaker bar to loosen the front wheel lug nuts about half a turn.
• Do not remove the lug nuts yet.

Step 2: Raise and Support the Front of the Truck

• Use a floor jack rated 3-ton minimum under the front frame crossmember or approved front jacking point.
• Raise the front of your Ranger high enough for the tire to clear the ground.
• Place jack stands rated 3-ton minimum under the frame.
• Lower the truck gently onto the stands and shake it lightly to confirm it is stable.

Step 3: Remove the Front Wheel

• Use a 21mm lug nut socket and 1/2-inch drive ratchet to remove the lug nuts.
• Remove the wheel by hand and place it flat under the frame as an extra safety backup.

Step 4: Mark the Lower Control Arm Alignment Positions

• Use a paint marker to mark the position of the lower control arm cam bolts, washers, and brackets.
• Make clear marks on both the front and rear lower control arm mounts.
• Good marks make alignment safer.

Step 5: Support the Lower Control Arm

• Place the floor jack rated 3-ton minimum under the outer end of the lower control arm.
• Raise the jack just enough to support the arm, but do not lift the truck off the jack stands.
• This keeps the suspension from dropping suddenly when the ball joint is separated.

Step 6: Remove the Lower Ball Joint Nut

• Use a 21mm socket or 24mm socket with a 1/2-inch drive breaker bar to loosen the lower ball joint nut.
• Leave the nut threaded on a few turns. This prevents the knuckle from popping loose suddenly.

Step 7: Separate the Ball Joint from the Steering Knuckle

• Install the ball joint separator tool (specialty) between the lower control arm ball joint stud and the steering knuckle.
• Tighten the separator using a 21mm socket or the size required by the tool until the taper pops loose.
• If using a pickle fork separator (specialty), tap it with a dead-blow hammer until the joint separates.
• Remove the loosened lower ball joint nut by hand after the joint has separated.
• Keep hands clear when it pops.

Step 8: Remove the Lower Control Arm Mounting Bolts

• Use an 18mm socket, 21mm socket, or 24mm socket with a 1/2-inch drive breaker bar to loosen the front and rear lower control arm mounting bolts.
• Hold the nut side with an 18mm wrench, 21mm wrench, or 24mm wrench as needed.
• Remove the bolts and washers while noting their direction and order.
• Use a paint marker to label front and rear hardware if needed.

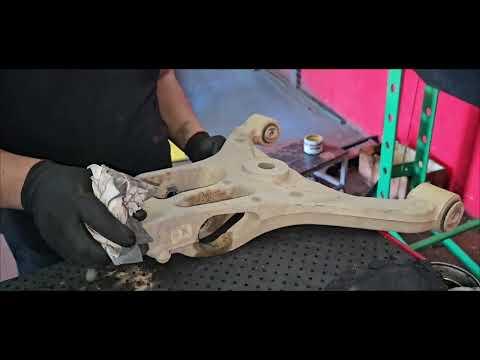

Step 9: Remove the Lower Control Arm Assembly

• Lower the floor jack rated 3-ton minimum slightly to take pressure off the arm.
• Use a pry bar 24-inch to gently work the lower control arm out of the frame brackets.
• Remove the control arm from your Ranger.

Step 10: Position the New Lower Control Arm

• Compare the new front lower control arm assembly with ball joint to the old one by hand before installation.
• Slide the new lower control arm into the frame brackets.
• Use a pry bar 24-inch gently if needed to line up the bushing sleeves.

Step 11: Install the Lower Control Arm Mounting Bolts

• Insert the lower control arm bolts and washers in the same direction as removed.
• Use the paint marker marks to return cam washers close to their original positions.
• Use an 18mm socket, 21mm socket, or 24mm socket with matching wrench to snug the bolts only.
• Do not final-tighten the control arm bushing bolts yet.

Step 12: Attach the Ball Joint to the Steering Knuckle

• Use the floor jack rated 3-ton minimum under the lower control arm to raise the ball joint stud into the steering knuckle.
• Install the new lower ball joint nut by hand.
• Use a 21mm socket or 24mm socket and torque wrench 50-250 Nm range to tighten the lower ball joint nut to Torque to 150 Nm (111 ft-lbs).

Step 13: Set the Suspension to Normal Ride Height

• Use the floor jack rated 3-ton minimum under the lower control arm to raise the suspension until the truck just begins to lift off the jack stand on that side.
• This simulates normal ride height so the rubber bushings are not twisted at rest.
• Keep the frame supported by the jack stands rated 3-ton minimum.

Step 14: Final-Tighten the Lower Control Arm Mounting Bolts

• Use an 18mm socket, 21mm socket, or 24mm socket with the matching wrench to hold the nut side.
• Use a torque wrench 50-250 Nm range to tighten the lower control arm mounting bolts to Torque to 175 Nm (129 ft-lbs).
• Keep the alignment cam marks as close as possible to your original paint marker marks.

Step 15: Reinstall the Front Wheel

• Place the wheel on the hub by hand.
• Install the lug nuts by hand first to avoid cross-threading.
• Use a 21mm lug nut socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 16: Lower the Truck and Torque the Lug Nuts

• Use the floor jack rated 3-ton minimum to lift the truck slightly off the stands.
• Remove the jack stands rated 3-ton minimum.
• Lower your Ranger until the tire just touches the ground.
• Use a 21mm lug nut socket and torque wrench 50-250 Nm range to tighten the lug nuts in a star pattern to Torque to 204 Nm (150 ft-lbs).
• Fully lower your Ranger and remove the wheel chocks.

---

✅ After Repair

• ✅ Bounce the front of your Ranger gently and listen for clunks.
• ✅ Check that the steering wheel turns smoothly from left to right.
• ✅ Drive slowly at first and listen for knocking or popping.
• ✅ Get a professional front wheel alignment as soon as possible.
• ✅ Recheck lug nut torque after 25-50 miles using a 21mm lug nut socket and torque wrench 50-250 Nm range.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 per side (parts + labor + alignment)

DIY Cost: $180-$420 per side (parts only, alignment extra)

You Save: $350-$650 per side by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours per side.

---
