🔧 Ranger - Front Brake Pad Replacement

Replacing the front brake pads on your Ranger restores stopping power and helps prevent rotor damage. This job involves lifting the front of the truck, removing the front wheels, opening the brake calipers, and installing new pads with the correct hardware.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never work under a vehicle supported by a jack alone.
• ⚠️ Use jack stands. A jack lifts the truck; jack stands hold it safely.
• ⚠️ Brake dust can be harmful. Do not blow it with compressed air; use brake cleaner.
• ⚠️ The brake caliper hose is flexible rubber. Do not let the caliper hang by the hose.
• ⚠️ Brake fluid can damage paint. Keep rags nearby and wipe spills immediately.
• ⚠️ The front brakes on your Ranger do not require electronic parking brake service mode.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 13mm socket
• 15mm wrench
• 3/8-inch drive ratchet
• Flathead screwdriver
• Brake caliper piston compressor tool (specialty)
• Bungee cord
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Brake cleaner spray - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Ranger on level ground and shift to Park.
• 🧱 Place wheel chocks behind both rear wheels.
• 🧤 Put on safety glasses and gloves before removing wheels or spraying brake cleaner.
• 🧪 Open the hood and check the brake fluid reservoir. If it is near the MAX line, remove a small amount with a clean suction tool before compressing the caliper pistons.
• 🔩 Break the front lug nuts loose slightly before lifting the truck. Do not fully remove them while the tires are still on the ground.
• 📌 Replace brake pads on both front wheels. Never replace only one side.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use the 21mm lug nut socket and 1/2-inch drive breaker bar to loosen each front lug nut about 1/2 turn.
• Do not remove the lug nuts yet.
• Loosen before lifting.

Step 2: Lift and Support the Front of the Truck

• Use the floor jack to lift the front of your Ranger at a solid front frame or crossmember lift point.
• Place jack stands under the front frame rails.
• Slowly lower the truck onto the jack stands using the floor jack.
• Gently shake the truck by hand to make sure it is stable before removing wheels.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and 3/8-inch drive ratchet or breaker bar to remove the loosened lug nuts.
• Remove both front wheels and set them flat on the ground.
• Slide one wheel partway under the frame as a backup safety measure.

Step 4: Inspect the Brake Assembly

• Look at the brake caliper, rotor, pads, and brake hose before taking anything apart.
• The caliper is the metal clamp that squeezes the pads against the rotor.
• The rotor is the round metal disc behind the wheel.
• If the rotor has deep grooves, heavy rust, cracks, or vibration symptoms, replace or resurface the rotors with the pads.

Step 5: Remove the Lower Caliper Slide Pin Bolt

• Use the 13mm socket and 3/8-inch drive ratchet to remove the lower caliper slide pin bolt.
• If the slide pin spins, hold it steady with the 15mm wrench.
• A slide pin is the smooth pin that lets the caliper move side to side as the brakes apply.

Step 6: Pivot the Caliper Up

• Use the flathead screwdriver gently between the caliper and outer pad to create a little clearance.
• Pivot the caliper upward by hand.
• Use a bungee cord to support the caliper from the suspension spring or frame area.
• Do not stretch, twist, or pull on the brake hose.

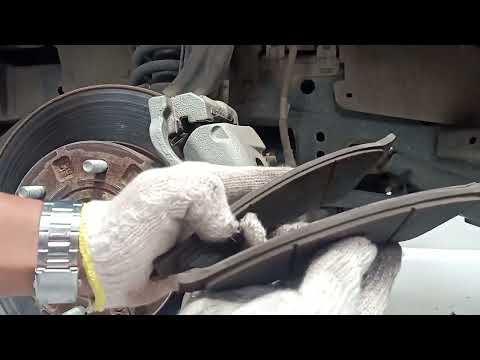

Step 7: Remove the Old Brake Pads and Hardware

• Pull the old inner and outer brake pads out of the caliper bracket by hand.
• Use the flathead screwdriver to carefully remove the old stainless pad clips from the caliper bracket.
• Pad clips are thin metal guides that help the brake pads slide smoothly.
• Compare the old pads to the new pads to make sure the shape and friction surface match.

Step 8: Clean the Caliper Bracket

• Use the wire brush to clean rust and debris from the pad clip mounting areas on the caliper bracket.
• Spray the area with brake cleaner spray.
• Wipe clean with shop towels.
• Keep brake cleaner off painted surfaces.

Step 9: Install the New Brake Pad Hardware

• Press the new front brake pad hardware clips into the caliper bracket by hand.
• Make sure the clips sit flat and fully seated.
• Use a tiny amount of brake caliper slide pin grease on the pad contact points where the pad ears touch the clips.
• Do not put grease on the pad friction material or rotor surface.

Step 10: Compress the Caliper Piston

• Place one old brake pad against the caliper piston.
• Use the brake caliper piston compressor tool to slowly push the piston fully back into the caliper.
• A caliper piston is the round part that pushes the brake pad when you press the brake pedal.
• Watch the brake fluid reservoir while compressing the piston. Stop if fluid gets close to overflowing.
• Go slow to protect seals.

Step 11: Install the New Brake Pads

• Install the new inner and outer brake pads into the caliper bracket by hand.
• Make sure the friction material faces the rotor.
• The pads should slide smoothly in the new clips without forcing them.

Step 12: Lower the Caliper Into Position

• Remove the bungee cord while holding the caliper by hand.
• Pivot the caliper down over the new brake pads.
• If the caliper will not fit, use the brake caliper piston compressor tool to compress the piston a little more.

Step 13: Reinstall the Caliper Slide Pin Bolt

• Install the lower caliper slide pin bolt by hand first to avoid cross-threading.
• Use the 13mm socket and 3/8-inch drive ratchet to snug the bolt.
• If the slide pin spins, hold it with the 15mm wrench.
• Use the torque wrench and 13mm socket to tighten the caliper slide pin bolt to Torque to 35 Nm (26 ft-lbs).

Step 14: Repeat on the Other Front Side

• Repeat Steps 5 through 13 on the other front wheel using the same tools.
• Always replace front brake pads as a complete axle set.

Step 15: Reinstall the Front Wheels

• Place each wheel back onto the hub by hand.
• Install the lug nuts by hand first.
• Use the 21mm lug nut socket and 3/8-inch drive ratchet to snug the lug nuts in a star pattern.

Step 16: Lower the Truck and Torque the Lug Nuts

• Use the floor jack to lift the truck slightly off the jack stands.
• Remove the jack stands.
• Lower the truck fully to the ground using the floor jack.
• Use the 1/2-inch drive torque wrench and 21mm lug nut socket to tighten the front lug nuts in a star pattern to Torque to 135 Nm (100 ft-lbs).

Step 17: Pump the Brake Pedal

• Before starting or driving, press the brake pedal slowly several times until it feels firm.
• This moves the caliper pistons back out against the new pads.
• The pedal may go low the first few presses. That is normal after pad replacement.

---

✅ After Repair

• ✅ Check the brake fluid reservoir and make sure the level is between MIN and MAX.
• ✅ Look behind both front wheels for any fluid leaks or loose hardware.
• ✅ Start your Ranger and press the brake pedal again. It should feel firm.
• ✅ Test drive slowly in a safe area before normal driving.
• ✅ Bed in the new pads: make 8-10 moderate stops from about 30 mph to 5 mph, allowing a little cooling time between stops.
• ✅ Avoid hard braking for the first 200 miles unless needed for safety.
• ✅ Recheck lug nut torque after 25-50 miles using the 1/2-inch drive torque wrench and 21mm lug nut socket.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $190-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
