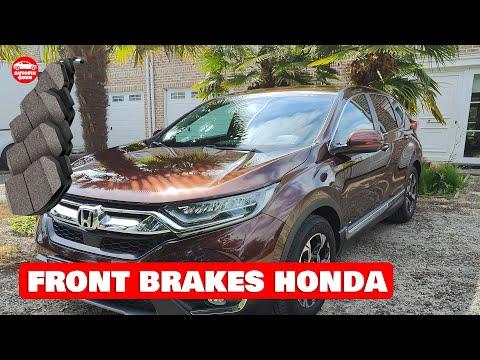

🔧 CR-V - Front Brake Pad Replacement

This repair replaces the front brake pads on your CR-V. Brake pads wear down over time and should be replaced before they get too thin, squeal constantly, or damage the rotors.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never rely on a jack by itself.
• ⚠️ Use jack stands before putting any part of your body near the wheels or brakes.
• ⚠️ Brake dust can be harmful. Do not blow it with compressed air; use brake cleaner instead.
• ⚠️ Brake fluid can damage paint. Wipe spills immediately with a clean shop towel.
• ⚠️ Your CR-V uses an electronic parking brake on the rear only, so no EPB service mode is needed for front brake pads.
• ⚠️ Battery disconnect is not required for this front brake pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 19mm lug nut socket
• 3/8-inch drive ratchet
• 12mm socket
• 17mm open-end wrench
• Torque wrench rated 20-100 ft-lbs
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Brake caliper compression tool (specialty)
• Flathead screwdriver
• Brake parts cleaning brush
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake cleaner - Qty: 1 can
• High-temperature brake lubricant - Qty: 1 tube

---

📋 Before You Begin

• 🚗 Park your CR-V on level ground and shift to Park.
• 🧱 Place wheel chocks behind the rear wheels. Wheel chocks are blocks that stop the vehicle from rolling.
• 🅿️ Set the parking brake before loosening the front wheel lug nuts.
• 🧴 Open the hood and check the brake fluid reservoir. If it is near MAX, remove a small amount with a clean suction tool before compressing the calipers.
• 🔩 Slightly loosen the front lug nuts before lifting the vehicle.
• 📱 No infotainment menu steps or scan-tool commands are required for the front pads.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 19mm lug nut socket and 3/8-inch drive ratchet to loosen each front lug nut about half a turn.
• Do not remove the lug nuts yet.
• Loosen while tires touch the ground.

Step 2: Raise and Support the Front

• Use a floor jack rated 2-ton minimum at the front center jacking point to lift your CR-V.
• Place jack stands rated 2-ton minimum under the front side support points.
• Lower the vehicle gently onto the jack stands.
• Give the vehicle a light push from the side to confirm it is stable.

Step 3: Remove the Front Wheels

• Use the 19mm lug nut socket and 3/8-inch drive ratchet to remove the loosened lug nuts.
• Remove both front wheels and set them flat on the ground.
• Keep the lug nuts together so none get lost.

Step 4: Turn the Steering for Better Access

• Turn the steering wheel so the caliper you are working on points outward.
• For the driver side, turn the wheel left. For the passenger side, turn the wheel right.
• This gives more room to reach the caliper bolts.

Step 5: Remove the Lower Caliper Bolt

• The caliper is the clamp-shaped part that holds the brake pads against the rotor.
• Use a 12mm socket and 3/8-inch drive ratchet to remove the lower caliper slide pin bolt.
• If the slide pin spins, hold it with a 17mm open-end wrench while loosening the bolt.
• A slide pin is a small guide pin that lets the caliper move smoothly as the pads wear.

Step 6: Swing the Caliper Up

• Use your hand to swing the caliper upward from the bottom.
• If it is tight, use a flathead screwdriver gently between the old pad and rotor to create a little space.
• Do not let the caliper hang by the rubber brake hose.
• Protect the hose from stretching.

Step 7: Remove the Old Brake Pads

• Pull the inner and outer brake pads out of the caliper bracket by hand.
• If they are stuck, use a flathead screwdriver to gently pry them free.
• Notice where the wear indicator tab is located so the new pads go in the same style position.

Step 8: Remove and Replace the Pad Hardware

• The pad hardware clips are thin metal clips that the brake pads slide on.
• Use a flathead screwdriver to pop the old hardware clips out of the caliper bracket.
• Use brake cleaner, a brake parts cleaning brush, and shop towels to clean the bracket contact areas.
• Install the new front brake pad hardware clips by pressing them fully into the bracket.

Step 9: Lubricate the Pad Contact Points

• Use high-temperature brake lubricant on the metal contact areas where the pad ears touch the hardware clips.
• Do not put lubricant on the pad friction material or rotor face.
• The friction material is the rough surface that presses against the rotor to stop the vehicle.
• A thin coat is enough.

Step 10: Compress the Caliper Piston

• The piston is the round metal part inside the caliper that pushes the brake pad.
• Place an old brake pad against the caliper piston.
• Use a brake caliper compression tool (specialty) to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing. If fluid gets close to overflowing, remove a small amount with a clean suction tool.
• Compress slowly to protect the brake hydraulic system.

Step 11: Install the New Brake Pads

• Install the new inner and outer brake pads into the caliper bracket by hand.
• Make sure the pad ears sit correctly in the new hardware clips.
• The pads should slide smoothly without forcing them.
• If they bind, remove them and recheck the hardware position.

Step 12: Lower the Caliper

• Swing the caliper back down over the new pads by hand.
• If it will not fit, use the brake caliper compression tool (specialty) again to confirm the piston is fully compressed.
• Do not force the caliper over the pads.

Step 13: Reinstall the Lower Caliper Bolt

• Start the lower caliper slide pin bolt by hand to avoid cross-threading.
• Use a 12mm socket and torque wrench rated 20-100 ft-lbs to tighten the bolt.
• Hold the slide pin with a 17mm open-end wrench if it spins.
• Torque to 37 Nm (27 ft-lbs)

Step 14: Repeat on the Other Side

• Repeat Steps 4 through 13 on the other front brake assembly.
• Always replace front brake pads as a left-and-right pair.
• Do one side at a time.

Step 15: Reinstall the Front Wheels

• Place each wheel back onto the hub by hand.
• Install the lug nuts by hand first.
• Use the 19mm lug nut socket and 3/8-inch drive ratchet to snug the lug nuts in a crisscross pattern.

Step 16: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack rated 2-ton minimum to lift slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower your CR-V until the tires touch the ground.
• Use the 19mm lug nut socket and torque wrench rated 20-100 ft-lbs to tighten lug nuts in a crisscross pattern.
• Torque to 108 Nm (80 ft-lbs)

Step 17: Pump the Brake Pedal

• Before driving, press the brake pedal several times until it feels firm.
• This moves the caliper pistons back into position against the new pads.
• If you skip this step, the first brake pedal press may go very low.

---

✅ After Repair

• ✅ Check the brake fluid level and make sure it sits between MIN and MAX.
• ✅ Start your CR-V and press the brake pedal again. It should feel firm and normal.
• ✅ Test the brakes at low speed in a safe area before normal driving.
• ✅ Listen for scraping, grinding, or clunking. Stop and recheck your work if you hear anything unusual.
• ✅ Bed in the new pads with several gentle stops from about 30 mph to 5 mph, allowing time between stops for cooling.
• ✅ Avoid hard braking for the first 100-200 miles unless needed for safety.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$380 (parts + labor)

DIY Cost: $45-$110 (parts only)

You Save: $175-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
