🔧 Civic - Front Brake Pad Replacement

This is a manageable first brake job if you work carefully. You’ll remove each front caliper, compress its piston, replace the pads and hardware, then torque everything correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

Assumption: The rotors are smooth, above minimum thickness, and free from deep grooves, cracks or heavy heat spots.

---

⚠️ Safety & Precautions

• ⚠️ Never work under a Civic supported only by a floor jack. Use jack stands on solid, level ground.
• ⚠️ Replace both front sides together. Never replace pads on only one front wheel.
• ⚠️ Don’t press the brake pedal while either caliper is removed.
• ⚠️ Hang the caliper securely. Never let it dangle from the rubber brake hose.
• ⚠️ Brake dust can be harmful. Don’t blow it away with compressed air.
• ⚠️ Keep grease and brake fluid away from pad friction material and rotor faces.
• ⚠️ The battery stays connected. The electronic parking brake controls the rear brakes and doesn’t require service mode for this front-only job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 19mm deep socket
• 14mm socket
• 14mm combination wrench
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench rated to 110 Nm minimum
• 6-inch C-clamp or disc brake piston compressor (specialty)
• Small flat-blade screwdriver
• Nylon brake-cleaning brush
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Two wheel chocks
• Caliper hanger or heavy steel wire
• Brake fluid syringe or clean suction tool
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1, replaces both front sides
• Front brake pad hardware kit - Qty: 1, if not included with the pads
• Brake parts cleaner - Qty: 1 can
• Silicone brake lubricant - Qty: 1 tube
• Honda-compatible DOT 3 brake fluid - Qty: 1 small sealed bottle, only if the reservoir needs topping up

For a street-driven Si, I’d choose a quality ceramic or street-performance pad rather than a track compound. Track pads can be noisy and weak when cold. Race-car noises lose their charm before the second traffic light.

---

📋 Before You Begin

• Park on firm, level ground with the transmission in first gear.
• Apply the parking brake and place wheel chocks behind both rear tires.
• Let the brakes cool completely before touching the calipers or rotors.
• Open the hood and clean around the brake-fluid reservoir cap.
• Check the reservoir level. Remove a little fluid with a clean syringe if it is near the maximum line, because compressing the caliper pistons pushes fluid back into the reservoir.
• Don’t leave the reservoir cap fully open. Set it loosely in position to keep dirt and moisture out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheel nuts

• Use the 19mm deep socket and 1/2-inch breaker bar to loosen each front wheel nut about one-quarter turn.
• Keep the tires on the ground while loosening them. Don’t remove the nuts yet.

Step 2: Raise and support the Civic

• Use the 2-ton floor jack at the front center lifting point, then place the 2-ton jack stands beneath the reinforced front side support points.
• Lower the Civic gently onto the stands and give it a careful stability check.
• Use the 19mm deep socket to remove both front wheels.
• Slide each removed wheel under the rocker area as secondary protection.

Step 3: Inspect the brake assembly

• Turn the steering wheel so the caliper on the working side faces outward.
• Use the safety glasses, nitrile gloves, brake cleaner and nylon brush to clean loose dirt from the caliper and pad area.
• Check the rotor for deep grooves, blue heat marks, cracks or a heavy outer lip.
• Inspect the brake hose for cracks, wetness, twists or rubbing damage.
• If one old pad is substantially thinner than its partner, stop and inspect the caliper piston and slide pins for binding.

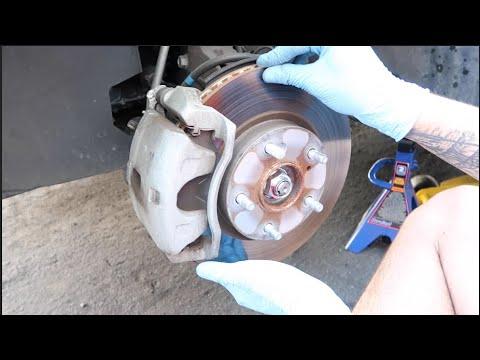

Step 4: Remove the caliper

• Use the 14mm socket and 3/8-inch ratchet to remove the upper and lower caliper flange bolts.
• If a slide pin turns with the bolt, hold its flat section with the 14mm combination wrench.
• Lift the caliper straight off the pads without pulling on the hose.
• Support it with the caliper hanger. Don’t disconnect the brake hose.

Step 5: Remove the old pads and hardware

• Pull the inner and outer pads from the caliper bracket by hand.
• Use the small flat-blade screwdriver to carefully release the stainless pad clips without gouging the bracket.
• Note the location of any wear indicator, shim or spring before removing it.
• Use the brake cleaner and nylon brush to clean the pad contact areas.
• Photograph each side before disassembly.

Step 6: Check the caliper slide pins

• Pull each slide pin gently from its rubber boot by hand.
• Confirm that both pins move smoothly and aren’t rusty, bent or deeply scored.
• Wipe them clean with a lint-free towel. Apply a thin coat of silicone brake lubricant, then reinstall them in their original positions.
• Make sure each rubber boot seats completely around the pin. A twisted boot lets water in and creates a sticking caliper.

Step 7: Compress the caliper piston

• Place an old brake pad against the piston face to spread the load evenly.
• Use the 6-inch C-clamp or piston compressor to push the piston slowly and straight into the caliper.
• Watch the brake-fluid reservoir as the piston retracts. Remove excess fluid with the clean syringe before it overflows.
• Stop if the piston requires extreme force or moves crookedly. That indicates a possible seized caliper or damaged piston.

Step 8: Install the new hardware and pads

• Press the new stainless hardware clips into the clean caliper bracket by hand.
• Apply an extremely thin film of silicone brake lubricant only where the pad ears contact the hardware.
• Don’t put lubricant on the rotor, pad friction surfaces or rubber components unless the lubricant specifically states it is rubber-safe.
• Install the new inner and outer pads in the same orientation as the originals.
• Confirm that both pads slide freely in the bracket without excessive looseness.

Step 9: Reinstall the caliper

• Swing the caliper over the new pads without twisting the brake hose.
• Start both flange bolts by hand to prevent cross-threading.
• Hold the slide-pin flat with the 14mm combination wrench if necessary.
• Use the 14mm socket and torque wrench to tighten both Si front caliper bolts to 50 Nm (37 ft-lbs). honcivic.automotive-manuals.com
• Repeat Steps 3 through 9 on the opposite front side.

Step 10: Reinstall the wheels

• Clean the wheel-to-hub mounting faces with the nylon brush. Keep lubricant off the wheel studs and nuts.
• Install each wheel and start all five nuts by hand.
• Use the 19mm deep socket to snug the nuts in a star pattern.
• Raise the Civic slightly with the floor jack, remove the stands, and lower the tires until they firmly contact the ground.
• Use the 19mm deep socket and torque wrench to tighten the wheel nuts in a star pattern to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Before starting the engine, press the brake pedal slowly several times until it becomes firm. The first few strokes may travel farther while the pistons move toward the new pads.
• Check the brake-fluid level and adjust it between the minimum and maximum marks using fresh DOT 3 brake fluid.
• Install the reservoir cap securely and clean away any spilled fluid immediately.
• Start the engine and confirm the pedal remains firm. Don’t drive if it sinks, feels unusually soft or triggers a brake warning.
• Check both front calipers and hoses for leaks.
• Perform a slow test in a clear area. Verify straight braking before entering normal traffic.
• Unless the pad manufacturer gives another procedure, make 8-10 moderate stops from about 50 km/h to 15 km/h. Allow cooling time between stops and avoid holding the hot brakes at a complete stop.
• Avoid panic stops for roughly the first 300-500 km unless safety requires one.
• Recheck the wheel-nut torque after approximately 50-100 km.

---

💰 DIY vs Shop Cost

Shop Cost: Approximately ₹8,000-₹20,000, depending on pad choice and whether rotor service is needed

DIY Cost: Approximately ₹3,000-₹12,000 for pads, hardware and consumables

You Save: Approximately ₹5,000-₹8,000 by doing it yourself!

Local labor and imported Si parts pricing can vary substantially. A straightforward front-pad replacement generally takes a shop approximately 1-1.5 hours.

---
