🔧 Equinox - Front Brake Pad Replacement

You’ll remove the front wheels, take off the brake calipers, compress the pistons, and install new pads and hardware on your Equinox. This restores braking performance and prevents metal-on-metal damage to the rotors.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the vehicle with jack stands. Never work under a car held only by a floor jack.
• 🧯 Work on a flat, solid surface with the transmission in Park and parking brake fully applied.
• 😷 Brake dust can be harmful. Avoid breathing dust; use brake cleaner instead of blowing with air.
• 🔥 Brakes get very hot after driving. Let them cool fully before starting.
• ⚡ Battery disconnect is not required for this job.
• 🧠 Do one side at a time so you can look at the other side if you forget how parts fit.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum, Qty: 2)
• 🧰 Wheel chocks
• 🧰 Lug wrench or 19mm socket with breaker bar
• 🧰 Ratchet handle (3/8" drive)
• 🧰 Ratchet handle (1/2" drive)
• 🧰 14mm socket
• 🧰 18mm socket
• 🧰 Torque wrench (3/8" or 1/2" drive)
• 🧰 Flathead screwdriver (medium size)
• 🧰 C-clamp (6" or larger) or disc brake caliper compression tool (specialty)
• 🧰 Wire brush (small, steel bristles)
• 🧰 Bungee cord or strong wire hanger
• 🧰 Shop rags or paper towels
• 🧰 Catch pan or tray
• 🧰 Safety glasses
• 🧰 Mechanic gloves
• 🧰 Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Front brake pad set (with wear shims) - Qty: 1 set (does both front wheels)
• 🧱 Front brake hardware kit (pad clips/abuttment clips) - Qty: 1 set
• 🧱 Synthetic brake grease (high-temp) - Qty: 1 small tube
• 🧱 Brake cleaner spray - Qty: 1–2 cans
• 🧱 Anti-seize compound - Qty: 1 small tube
• 🧱 Shop towels - Qty: as needed
• 🧱 Front brake rotors - Qty: 2 (only if yours are worn/warped)

---

📋 Before You Begin

• 🅿️ Park the Equinox on level ground, shift into Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels to prevent rolling.
• 📦 Lay out your new pads and hardware and compare to the old ones so you understand how they should look.
• 💧 Check brake fluid level in the reservoir under the hood. If it’s very full, you may need to remove a little with a clean syringe or turkey baster before pushing pistons back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen front wheel lug nuts

• Use the lug wrench or 19mm socket with breaker bar to slightly loosen (¼ turn) the front wheel lug nuts on both sides. Do not remove them yet.
• Loosen while car is still on ground.

Step 2: Raise and support the front of the vehicle

• Position the floor jack under the front center jacking point (just behind the front bumper on the subframe crossmember).
• Lift until both front wheels are off the ground.
• Place jack stands under the left and right front pinch welds or frame points and slowly lower the vehicle onto the stands.
• Gently shake the Equinox to confirm it is stable on the stands.

Step 3: Remove the front wheels

• Use the lug wrench or 19mm socket with ratchet to remove all lug nuts from one front wheel, then pull the wheel straight off and set it aside.
• Repeat on the other front wheel.

Step 4: Inspect the brake assembly

• Use the flashlight to look at the caliper (clamp-looking part), the pads (flat pieces on each side of rotor), and the rotor (big shiny disc).
• Note how the old pads and any clips are installed. Take a photo for reference.

Step 5: Remove caliper guide pin bolts

• On the back of the caliper, locate the two slide/guide pin bolts (one upper, one lower).
• Use a 14mm socket with 3/8" ratchet to loosen and remove both guide pin bolts.
• Set the bolts aside where they won’t get dirty.

Step 6: Lift caliper off and support it

• Use a flathead screwdriver to gently pry between the pad and rotor if the caliper is tight.
• Lift the caliper off the bracket and rotor.
• Hang the caliper from the spring or strut using a bungee cord or wire hanger. Do not let it hang by the rubber brake hose.
• Never stretch or twist the brake hose.

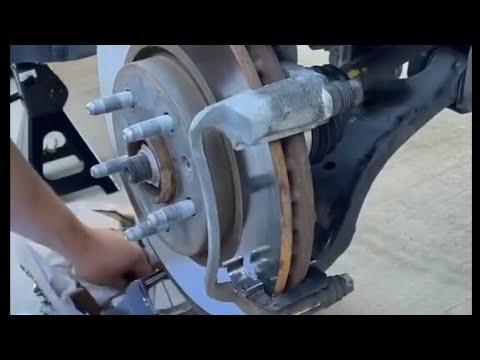

Step 7: Remove old brake pads and hardware

• Slide the old pads out of the caliper bracket by hand.
• Remove the metal pad clips (hardware) from the caliper bracket. They usually pull off by hand; use a flathead screwdriver if needed.

Step 8: Clean the caliper bracket and rotor contact area

• Use the wire brush to scrub rust and dirt from the pad contact areas on the caliper bracket where the clips sit.
• Spray the area with brake cleaner and wipe with shop rags.
• If you are reusing rotors, spray the rotor surface with brake cleaner and wipe clean.
• Do not get grease on rotor or pad faces.

Step 9: Install new hardware clips

• Position the new pad clips from the front brake hardware kit onto the cleaned caliper bracket.
• Press them in firmly by hand until they snap into place and sit flat.
• Apply a very thin layer of brake grease on the surfaces of the clips where the pad “ears” will slide.

Step 10: Compress the caliper piston

• Place one of the old brake pads over the piston inside the caliper.
• Position the C-clamp or caliper compression tool so one side is on the back of the caliper and the other on the old pad.
• Slowly tighten the tool to push the piston fully back into the caliper housing.
• Watch the brake fluid reservoir under the hood to ensure it does not overflow.
• Go slow to avoid damaging the piston seal.

Step 11: Lubricate slide pins

• Pull each caliper slide/guide pin out of the caliper bracket by hand.
• Wipe them clean with shop rags and inspect the rubber boots for damage.
• Apply a thin, even coat of brake grease to each pin and reinstall them into the bracket, making sure they move smoothly.

Step 12: Install new brake pads

• Identify the inner pad (often has a wear indicator tab) and the outer pad.
• Slide the new pads into the hardware clips on the caliper bracket until they are fully seated and straight.
• Apply a small amount of brake grease to the pad backing plates where they contact the caliper (not on friction material).

Step 13: Reinstall the caliper over new pads

• Remove the old pad used for compressing the piston.
• Lower the caliper back over the new pads and onto the caliper bracket.
• Align the caliper slide pin holes with the bracket.
• Install the two guide pin bolts by hand to avoid cross-threading.
• Use the 14mm socket with 3/8" ratchet to tighten the guide pin bolts, then finish with a torque wrench and torque to 31 Nm (23 ft-lbs).

Step 14: (Optional) Remove caliper bracket and rotor if replacing rotors

• If you are changing rotors, remove the two large caliper bracket bolts on the back using an 18mm socket with 1/2" ratchet.
• Remove the bracket and slide the rotor off the hub. If stuck, tap around the hat area with a rubber mallet.
• Clean the hub face with the wire brush and apply a very thin film of anti-seize compound.
• Install the new rotor onto the hub.
• Reinstall the caliper bracket and use the 18mm socket with torque wrench to tighten the bracket bolts to 170 Nm (125 ft-lbs).
• Then repeat Steps 7–13 to fit pads and caliper.

Step 15: Repeat steps on the other side

• Repeat Steps 5–14 on the other front wheel.
• Always replace pads on both sides together.

Step 16: Reinstall wheels

• Place the wheel back onto the hub and hand-thread all lug nuts.
• Use the lug wrench or 19mm socket with ratchet to snug the lug nuts in a star pattern, but do not fully tighten yet.

Step 17: Lower vehicle and torque lug nuts

• Use the floor jack to raise the Equinox slightly, remove the jack stands, then lower the vehicle completely to the ground.
• Use a torque wrench with 19mm socket to tighten the lug nuts in a star pattern to 140 Nm (103 ft-lbs).

Step 18: Pump the brake pedal

• Before driving, sit in the driver’s seat and slowly press the brake pedal several times until it becomes firm. This seats the pads against the rotors.
• Check brake fluid level again and adjust if needed.

---

✅ After Repair

• 🚗 Start the engine and press the brake pedal; it should feel firm, not spongy.
• 🔍 Look through the wheels to ensure the calipers, pads, and hardware sit correctly and no hoses are twisted.
• 🧪 Take a short, low-speed test drive. Make several gentle stops from 20–30 km/h to bed the pads in. Listen for grinding or loud noises.
• 📏 For the first 300–500 km, avoid very hard stops unless necessary so the pads and rotors can bed in properly.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$400 (parts + labor) for front pads, more if rotors are included.

DIY Cost: $70–$150 (parts only) depending on pad/rotor quality.

You Save: $180–$250 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
