🔧 F-150 - Front Brake Pad Replacement

Replacing the front brake pads on your F-150 means removing the front wheels, opening the front brake calipers, swapping the pads, and reinstalling everything correctly. This restores braking performance and helps prevent rotor damage from worn pads.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground only and support your F-150 with jack stands. Never rely on a floor jack alone.
• ⚠️ Wear safety glasses and gloves. Brake dust and cleaner can irritate your skin and eyes.
• ⚠️ Do one side at a time so the other side stays assembled as a reference.
• ⚠️ Do not press the brake pedal while a caliper is removed.
• ⚠️ Front brakes do not require electronic parking brake service mode on your F-150.
• ⚠️ Battery disconnect is not required for this front brake pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 18mm socket
• 3/8-inch ratchet
• 1/2-inch breaker bar
• 1/2-inch torque wrench
• 3/8-inch torque wrench
• Brake caliper piston compressor tool (specialty)
• Flat-blade screwdriver
• Small wire brush
• Bungee cord
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake lubricant - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your F-150 on level ground, shift to Park, and apply the parking brake.
• 🧱 Place wheel chocks behind the rear wheels so the truck cannot roll.
• 🧰 A torque wrench is a tool that tightens bolts to a measured force so they are not too loose or too tight.
• 🧰 A brake caliper piston compressor tool pushes the caliper pistons back into the caliper so the thicker new pads fit.
• 🧼 Brake lubricant is special high-temperature grease used only on pad contact points, never on the pad friction surface or rotor.
• 📸 Take a picture of the brake assembly before removing parts. It helps during reassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use the 21mm lug nut socket and 1/2-inch breaker bar to loosen each front lug nut about 1/2 turn.
• Do this while the tires are still on the ground so the wheels do not spin.
• Loosen only, do not remove yet.

Step 2: Raise and Support the Front of the Truck

• Use the floor jack rated 3-ton minimum to lift the front of your F-150 at the front crossmember or approved front jacking point.
• Place jack stands rated 3-ton minimum under the front frame rails.
• Slowly lower the truck onto the jack stands and gently shake the truck to confirm it is stable.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and 3/8-inch ratchet to remove the loosened lug nuts.
• Remove both front wheels and set them flat on the ground.

Step 4: Inspect the Brake Assembly

• Put on safety glasses and nitrile gloves.
• Look at the brake caliper, pads, rotor, and hose before removing anything.
• Use the flat-blade screwdriver only if needed to gently check pad movement.
• If the rotor is deeply grooved, cracked, or heavily rusted, the rotor should be replaced or serviced with the pads.

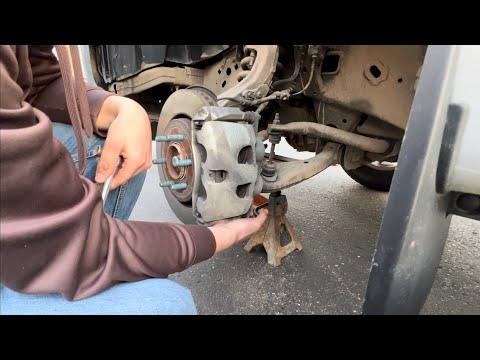

Step 5: Remove the Brake Caliper Bolts

• Use the 18mm socket and 3/8-inch ratchet to remove the two front brake caliper guide pin bolts.
• Hold the caliper steady with your free hand as the second bolt comes out.
• Do not let the caliper hang by the rubber brake hose.

Step 6: Lift Off and Support the Caliper

• Slide the caliper off the rotor by hand.
• If it is tight, use the flat-blade screwdriver to gently pry between the old pad and rotor.
• Use a bungee cord to hang the caliper from the suspension spring or upper control arm.
• Make sure the brake hose is not stretched, twisted, or kinked.

Step 7: Remove the Old Brake Pads and Hardware

• Pull the old inner and outer pads out of the caliper bracket by hand.
• Use the flat-blade screwdriver to carefully pop out the old stainless pad hardware clips.
• Note how the old clips are installed before removing them.

Step 8: Clean the Pad Bracket Contact Areas

• Use the small wire brush to clean rust and dirt from the caliper bracket where the pad hardware clips sit.
• Spray the area with brake cleaner.
• Let it dry fully before applying lubricant.
• Clean metal helps pads slide smoothly.

Step 9: Install New Brake Pad Hardware

• Install the new front brake pad hardware kit clips into the caliper bracket by hand.
• Use the flat-blade screwdriver only if needed to seat the clips fully.
• Apply a thin film of brake lubricant to the areas where the brake pad ears slide in the hardware.
• Do not get lubricant on the rotor or pad friction material.

Step 10: Compress the Caliper Pistons

• Place one old brake pad against the caliper pistons.
• Use the brake caliper piston compressor tool to slowly push the pistons fully back into the caliper.
• Go slowly so brake fluid can return smoothly to the master cylinder.
• If the brake fluid reservoir is very full, watch for overflow while compressing the pistons.

Step 11: Install the New Brake Pads

• Slide the new front brake pad set into the caliper bracket by hand.
• Make sure the friction material faces the rotor.
• The pads should move freely in the hardware without being loose.
• If a pad is stuck, remove it and use the small wire brush to clean the bracket again.

Step 12: Reinstall the Brake Caliper

• Remove the bungee cord and slide the caliper over the new pads and rotor.
• Install the caliper guide pin bolts by hand first to prevent cross-threading.
• Use the 18mm socket and 3/8-inch torque wrench to tighten the caliper guide pin bolts to Torque to 75 Nm (55 ft-lbs).

Step 13: Repeat on the Other Front Side

• Repeat Steps 4 through 12 on the other front brake.
• Use the same tools and replace the pads in pairs.
• Always replace both front sides together.

Step 14: Reinstall the Front Wheels

• Put each wheel back onto the hub by hand.
• Install the lug nuts by hand first.
• Use the 21mm lug nut socket and 3/8-inch ratchet to snug the lug nuts in a star pattern.

Step 15: Lower the Truck and Torque the Lug Nuts

• Use the floor jack rated 3-ton minimum to lift the truck slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the truck until the tires touch the ground.
• Use the 21mm lug nut socket and 1/2-inch torque wrench to tighten the lug nuts in a star pattern to Torque to 204 Nm (150 ft-lbs).

Step 16: Pump the Brake Pedal

• Sit in the driver seat and press the brake pedal slowly several times until it feels firm.
• This moves the caliper pistons back out against the new pads.
• Do not drive until the pedal feels firm.

---

✅ After Repair

• ✅ Check the brake fluid level under the hood and make sure it is between MIN and MAX.
• ✅ Start your F-150 and press the brake pedal again. It should feel firm and normal.
• ✅ Test the brakes at low speed in a safe area before normal driving.
• ✅ Bed in the new pads with several gentle stops from about 30 mph to 5 mph, letting the brakes cool between stops.
• ✅ Avoid hard braking for the first 100-200 miles unless needed for safety.
• ✅ Recheck lug nut torque after the first short drive using the 21mm lug nut socket and 1/2-inch torque wrench: Torque to 204 Nm (150 ft-lbs).

---
