🔧 Tundra - Front Brake Pad Replacement

Your Tundra uses four-piston fixed front calipers. The pads slide out after removing two retaining pins, so the calipers and brake hoses normally stay installed.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Tundra with jack stands. Never work beneath a vehicle supported only by a jack.
• 🛑 Replace the front pads as a complete axle set—both front wheels.
• 🧤 Brake dust can be harmful. Do not blow it away with compressed air.
• 🔥 Allow the brakes to cool completely before beginning.
• 💧 Watch the brake-fluid reservoir while retracting the pistons. Remove excess fluid before it overflows.
• 🚫 Keep grease and brake fluid away from pad friction material and rotor surfaces.
• 🔋 Battery disconnection is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 22mm deep socket
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench rated to at least 150 ft-lbs
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum per pair
• Wheel chocks rated for light trucks
• Needle-nose pliers
• 5mm pin punch
• 16-ounce ball-peen hammer
• Four-piston brake caliper spreader (specialty)
• Small brake-fluid syringe
• Nylon brake-cleaning brush
• Plastic trim tool
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1 - Replace both sides
• Front brake pad shim and fitting kit - Qty: 1
• High-temperature silicone brake lubricant - Qty: 1
• Non-chlorinated brake cleaner - Qty: 1 can
• DOT 3 brake fluid - Qty: 1 small sealed bottle, only if adjustment is needed

---

📋 Before You Begin

• 📍 Park your Tundra on firm, level ground. Shift into Park, apply the parking brake, and switch off the ignition.
• 🛞 Place wheel chocks securely behind both rear tires.
• 🔍 Check the front rotors for deep grooves, blue heat marks, cracks, or thickness variation. Damaged or undersized rotors require replacement or professional measurement.
• 💧 Open the hood and check the brake-fluid reservoir. Use a small brake-fluid syringe to lower the fluid near the MIN line if it is already close to MAX.
• 📱 No infotainment service mode, scan tool, electronic parking-brake retraction, coding, or battery registration is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Nuts

• Use a 22mm deep socket and 1/2-inch drive breaker bar to loosen each front lug nut approximately one-half turn.
• Do not remove the lug nuts while the tires are still supporting the vehicle.

Step 2: Raise and Support the Front

• Use the 3-ton floor jack beneath the front frame crossmember to raise your Tundra.
• Position the 3-ton jack stands under the reinforced frame rails behind the front suspension mounting area.
• Lower the vehicle onto the stands and gently test stability before approaching the brakes.
• Keep the floor jack lightly touching the crossmember.

Step 3: Remove Both Front Wheels

• Use the 22mm deep socket to remove the lug nuts.
• Remove each wheel and slide it beneath the frame as an additional safety measure.

Step 4: Inspect the Brake Assembly

• Use the non-chlorinated brake cleaner and nylon brake-cleaning brush to wet and remove loose brake dust.
• Inspect the caliper for wet brake fluid, torn piston boots, seized pistons, or uneven pad wear.
• Stop the repair if one pad is dramatically thinner than its partner or the caliper is leaking. The caliper requires diagnosis before new pads are installed.

Step 5: Remove the Pad Retaining Hardware

• Take a quick photo of the anti-rattle spring orientation before disassembly.
• Use needle-nose pliers to remove the small retaining clips from the two horizontal pad pins.
• Hold the anti-rattle spring with one hand. Use the 5mm pin punch and 16-ounce ball-peen hammer to tap out the upper and lower retaining pins.
• Remove the anti-rattle spring as the pins come out. Keep track of its installed direction.
• Support the spring so it cannot jump free.

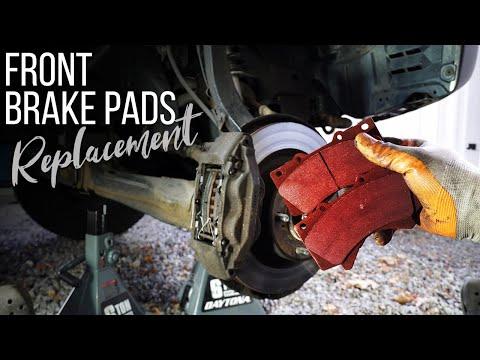

Step 6: Remove the Old Pads

• Pull the inner and outer pads straight out through the rear opening in the fixed caliper.
• If a pad sticks, use the plastic trim tool to work it loose without gouging the rotor or piston boots.
• Compare wear across all four pads. Tapered or strongly uneven wear indicates sticking pistons or pad hardware.

Step 7: Retract the Four Caliper Pistons

• Place the old pads back against the pistons as protective plates.
• Use the four-piston brake caliper spreader to press the pistons inward slowly and evenly. A caliper spreader distributes force across opposing pistons.
• Do one side of the caliper gradually while keeping the opposite old pad in place so another piston cannot move outward.
• Watch the reservoir. Use the small brake-fluid syringe if the fluid approaches the top.
• Stop if a piston will not retract with steady moderate pressure. Do not force a seized piston.

Step 8: Prepare the New Pads and Hardware

• Use non-chlorinated brake cleaner and the nylon brake-cleaning brush to clean the retaining pins and caliper pad-contact areas.
• Install the new shims onto the pads in the same arrangement as the originals.
• Apply a very thin film of high-temperature silicone brake lubricant to the pad ears, retaining-pin contact points, and between stacked shims where applicable.
• Do not put lubricant on the rotor-facing friction material or rotor.

Step 9: Install the New Brake Pads

• Slide the new inner and outer pads into the caliper with their friction surfaces facing the rotor.
• Confirm that each pad sits squarely and moves without binding.
• Position the anti-rattle spring exactly as photographed.
• Insert the cleaned retaining pins through the caliper, pads, and spring. Use the 5mm pin punch and 16-ounce ball-peen hammer only for light alignment taps.
• Use needle-nose pliers to reinstall the retaining clips completely into their pin holes.
• No caliper-bolt torque is required because the fixed calipers were not removed.

Step 10: Repeat on the Opposite Side

• Use the same listed tools and procedure to replace the pads on the other front wheel.
• Verify that both calipers have both retaining pins, both retaining clips, and correctly seated anti-rattle springs.

Step 11: Reinstall the Wheels

• Mount each wheel and install the lug nuts by hand to prevent cross-threading.
• Use the 22mm deep socket to snug the lug nuts in a star pattern.
• Use the 3-ton floor jack to raise your Tundra, remove the 3-ton jack stands, and lower the tires to the ground.
• Use the 1/2-inch drive torque wrench and 22mm deep socket to tighten the lug nuts in a star pattern: Torque to 131 Nm (97 ft-lbs).

Step 12: Seat the Pads Before Moving

• With the engine off, press and release the brake pedal slowly until it becomes firm. This may take several strokes.
• Do not move your Tundra until the pedal remains firm and maintains normal height.
• Check the brake-fluid reservoir. Adjust between MIN and MAX using fresh DOT 3 brake fluid only if needed.

---

✅ After Repair

• 🔍 Check around both calipers and the reservoir for brake-fluid leaks.
• 🛑 Start the engine and hold firm pedal pressure for 30 seconds. The pedal should not continue sinking.
• 🚗 Test the brakes at walking speed in a safe, traffic-free area before normal driving.
• 🌡️ Bed in the pads with 8-10 moderate stops from approximately 50 km/h to 15 km/h. Do not come to a complete stop between applications.
• ❄️ Drive for 5-10 minutes with minimal braking afterward so the brakes can cool.
• 🚫 Avoid panic stops, towing, and holding the hot brakes at a stop for the first 300 km unless safety requires it.
• 🔧 Recheck lug-nut torque after approximately 80-160 km.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹10,000-₹24,000 (parts only)

You Save: ₹6,000-₹12,000 by doing it yourself!

Imported-part pricing and local labor rates vary. This repair takes a shop approximately 0.8-1.2 hours.

---
