🔧 RAV4 - Front Brake Pad & Rotor Replacement

This repair replaces the front brake pads and front brake rotors on your RAV4. Worn pads can reduce stopping power, and grooved or warped rotors can cause vibration, noise, or uneven braking.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Your RAV4 is a hybrid, so do not open or touch any orange high-voltage cables or hybrid battery components.
• ⚠️ Work on a cool brake system. Brake parts get extremely hot after driving.
• ⚠️ Support the vehicle with jack stands. Never work under or around a vehicle supported only by a jack.
• ⚠️ Do not press the brake pedal while the caliper is removed.
• ⚠️ Brake dust is harmful. Use brake cleaner, not compressed air, to clean brake parts.
• ⚠️ Disconnecting the 12V battery is recommended before pushing caliper pistons back on this hybrid brake-by-wire system. This helps prevent unexpected brake actuator operation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• Breaker bar 1/2-inch drive
• Torque wrench 1/2-inch drive
• 14mm socket
• 17mm socket
• Ratchet 3/8-inch drive
• Ratchet 1/2-inch drive
• Flat-head screwdriver
• Needle-nose pliers
• Disc brake piston compressor tool (specialty)
• Bungee cord
• Wire brush
• Brake cleaner spray
• Shop towels
• Small catch pan
• Safety glasses
• Nitrile gloves
• Dust mask

A breaker bar is a long handle used to loosen tight bolts. A torque wrench tightens bolts to the correct force so they are not too loose or too tight.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware kit - Qty: 1
• Brake lubricant - Qty: 1
• Brake cleaner spray - Qty: 1-2 cans

---

📋 Before You Begin

• Park your RAV4 on level ground.
• Shift to Park and apply the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the 12V battery. On your RAV4 Hybrid, the 12V battery is in the rear cargo area under the floor trim.
• Use a 10mm wrench if available to disconnect the negative 12V battery cable before pushing the caliper pistons back. If your tool kit does not include one, add a 10mm wrench.
• Do not open the brake fluid reservoir unless fluid level is near the top. If needed, remove a small amount with a clean suction tool to prevent overflow.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use the 21mm lug nut socket and breaker bar 1/2-inch drive to loosen each front lug nut about half a turn.
• Do this while the tires are still on the ground so the wheels do not spin.
• Loosen only. Do not remove yet.

Step 2: Raise and Support the Front of the Vehicle

• Use the floor jack at the front center jacking point to lift the front of your RAV4.
• Place jack stands under the front side support points.
• Slowly lower the vehicle onto the jack stands.
• Gently shake the vehicle by hand to make sure it is stable before removing the wheels.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and ratchet 1/2-inch drive to remove the loosened lug nuts.
• Remove both front wheels and place them flat under the side of the vehicle as an extra safety backup.

Step 4: Inspect the Brake Assembly

• Put on safety glasses, nitrile gloves, and a dust mask.
• Look at how the brake pads, clips, and caliper are positioned before removing anything.
• Take a phone photo for reference.
• A caliper is the clamp-shaped part that squeezes the brake pads against the rotor.

Step 5: Remove the Caliper Slide Pin Bolts

• Use the 14mm socket and ratchet 3/8-inch drive to remove the two caliper slide pin bolts.
• If the slide pin spins, hold the pin with needle-nose pliers while loosening the bolt.
• Carefully lift the caliper off the rotor.
• Hang the caliper from the strut using a bungee cord.
• Do not let the caliper hang by the brake hose.

Step 6: Remove the Old Brake Pads and Hardware

• Use a flat-head screwdriver to gently pry the old brake pads out of the caliper bracket.
• Use needle-nose pliers or your fingers to remove the old metal pad clips.
• The pad clips are thin stainless hardware pieces that help the pads move smoothly.
• Compare the old pads to the new pads before throwing anything away.

Step 7: Remove the Caliper Bracket

• Use the 17mm socket, ratchet 1/2-inch drive, and breaker bar 1/2-inch drive to remove the two caliper bracket bolts.
• Remove the caliper bracket and set it on a clean surface.
• These bolts are tight from the factory, so use slow, steady force.

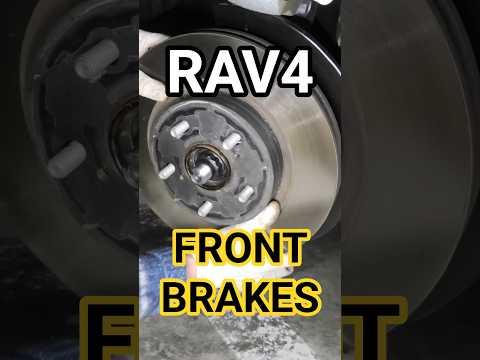

Step 8: Remove the Old Rotor

• Slide the old rotor straight off the wheel hub by hand.
• If the rotor is stuck, tap around the rotor hat with a soft-faced hammer if available, or carefully wiggle it by hand.
• Do not strike the wheel studs.
• Use brake cleaner spray and a shop towel to clean rust dust from the hub area.

Step 9: Clean the Hub and Install the New Rotor

• Use the wire brush to clean the flat wheel hub surface where the rotor sits.
• Spray the area with brake cleaner spray and wipe it dry with shop towels.
• Install the new rotor onto the hub.
• Hold it in place with one lug nut threaded on by hand.
• A clean hub prevents brake vibration.

Step 10: Service the Caliper Bracket

• Use the wire brush to clean the pad contact areas on the caliper bracket.
• Install the new brake hardware clips by hand.
• Apply a thin layer of brake lubricant to the pad contact points on the clips.
• Do not get lubricant on the rotor or pad friction material.
• The friction material is the rough surface of the brake pad that contacts the rotor.

Step 11: Reinstall the Caliper Bracket

• Position the caliper bracket over the new rotor.
• Start both bracket bolts by hand to avoid cross-threading.
• Use the 17mm socket and torque wrench 1/2-inch drive to tighten the caliper bracket bolts.
• Torque to 107 Nm (79 ft-lbs)

Step 12: Compress the Caliper Piston

• Place the small catch pan under the brake area in case fluid overflows from the reservoir.
• Use the disc brake piston compressor tool to slowly push the caliper piston fully back into the caliper.
• Go slowly. Fast pressure can push fluid back too quickly.
• The piston is the round part inside the caliper that pushes the brake pad.

Step 13: Install the New Brake Pads

• Install the new inner and outer brake pads into the bracket by hand.
• Make sure the pads slide smoothly in the new clips.
• Apply a thin coat of brake lubricant only to the pad ears where they touch the clips.
• Do not lubricate the pad face or rotor.

Step 14: Reinstall the Caliper

• Remove the bungee cord and lower the caliper over the new pads.
• Start both slide pin bolts by hand.
• Use the 14mm socket and torque wrench 3/8-inch drive to tighten the caliper slide pin bolts.
• Torque to 34 Nm (25 ft-lbs)

Step 15: Repeat on the Other Front Side

• Repeat Steps 5 through 14 on the other front brake assembly.
• Always replace front pads and rotors in pairs so braking stays balanced.

Step 16: Reinstall the Wheels

• Remove the temporary lug nut holding each rotor.
• Install each wheel by hand.
• Thread all lug nuts by hand first.
• Use the 21mm lug nut socket and ratchet 1/2-inch drive to snug the lug nuts in a star pattern.

Step 17: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to lift the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower the vehicle until the tires touch the ground.
• Use the 21mm lug nut socket and torque wrench 1/2-inch drive to tighten the lug nuts in a star pattern.
• Torque to 103 Nm (76 ft-lbs)

Step 18: Reconnect the 12V Battery

• Reconnect the negative 12V battery cable using a 10mm wrench.
• Make sure the terminal is snug and does not twist by hand.
• If the hybrid system shows warning lights briefly after reconnecting, cycle the vehicle off and back on once.

---

✅ After Repair

• Before driving, press the brake pedal slowly 5-10 times until it feels firm. This seats the caliper pistons against the new pads.
• Check the brake fluid level and make sure it is between the MIN and MAX marks.
• Start your RAV4 and confirm there are no brake warning lights.
• Test the brakes at low speed in a safe area before normal driving.
• Bed in the new pads with several gentle stops from 30-40 mph. Avoid hard braking for the first 200 miles unless needed for safety.
• Recheck lug nut torque after your first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $290-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
