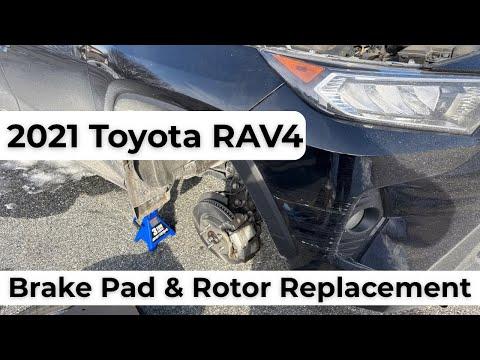

🔧 RAV4 - Front Brake Pads & Rotors Replacement

This repair replaces the front brake pads and front brake rotors on your RAV4. The pads create the stopping force, and the rotors are the metal discs the pads clamp onto. Replace both sides together so braking stays even and safe.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never rely on a jack alone.
• ⚠️ Use jack stands under the proper front support points before putting hands near the brakes.
• ⚠️ Brake dust can be harmful. Do not blow it with compressed air; use brake cleaner.
• ⚠️ Keep brake grease and oil off the pad friction surface and rotor faces.
• ⚠️ The brake caliper must not hang by the rubber brake hose. Support it with wire or a bungee cord.
• ⚠️ Battery disconnect is not required for this front brake job on your RAV4.
• ⚠️ Your RAV4 has an electronic parking brake, but this procedure is for the front brakes. Do not activate the parking brake while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• Breaker bar 1/2-inch drive
• Torque wrench 1/2-inch drive
• Ratchet 3/8-inch drive
• 14mm socket
• 17mm socket
• 6-inch socket extension 3/8-inch drive
• Flathead screwdriver
• Brake caliper compression tool (specialty)
• Bungee cord
• Rubber mallet
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware kit - Qty: 1
• Brake lubricant - Qty: 1
• Brake cleaner spray - Qty: 1-2 cans

---

📋 Before You Begin

• 🅿️ Park your RAV4 on level ground and shift to Park.
• 🧱 Place wheel chocks behind the rear wheels so the vehicle cannot roll.
• 🧤 Put on safety glasses and gloves before removing the wheels.
• 🚫 Do not press the brake pedal while the caliper is removed.
• 🧴 Open the hood and check the brake fluid reservoir. If it is very full, remove a small amount with a clean suction tool before compressing the caliper piston.
• 📌 A caliper piston is the round part inside the brake caliper that pushes the brake pads against the rotor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 21mm lug nut socket and breaker bar 1/2-inch drive to loosen each front wheel lug nut about half a turn.
• Do this while the tires are still touching the ground.
• Break them loose before lifting.

Step 2: Lift and Support the Front of the RAV4

• Use a floor jack rated 3-ton minimum to lift the front of your RAV4 at the front center jacking point.
• Place jack stands rated 3-ton minimum under the front side support points.
• Lower the vehicle gently onto the jack stands.
• Keep the floor jack lightly touching the lift point as backup, but do not rely on it alone.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and ratchet 1/2-inch drive or breaker bar to remove the loosened lug nuts.
• Remove both front wheels and set them flat on the ground.
• Slide one wheel under the side of the vehicle as an extra safety backup.

Step 4: Inspect the Brake Assembly

• Look at how the brake pads, caliper, bracket, and hardware clips are installed before taking anything apart.
• Use your phone to take a photo for reference.
• The caliper is the clamp-shaped part that sits over the rotor.
• The caliper bracket is the larger metal mount that holds the caliper in place.

Step 5: Remove the Caliper Slide Pin Bolts

• Use a 14mm socket, ratchet 3/8-inch drive, and 6-inch socket extension if needed to remove the two caliper slide pin bolts.
• These bolts are on the back side of the caliper.
• If the slide pin spins, hold the pin with an open wrench if needed while loosening the bolt.

Step 6: Remove and Support the Caliper

• Use a flathead screwdriver to gently wiggle the caliper outward if it feels stuck.
• Lift the caliper off the rotor.
• Use a bungee cord to hang the caliper from the front strut spring or suspension area.
• Do not let the caliper hang from the brake hose.

Step 7: Remove the Old Brake Pads

• Pull the old inner and outer brake pads out of the caliper bracket by hand.
• Use a flathead screwdriver gently if the pads are stuck.
• Compare the old pads to the new front brake pad set before installation.

Step 8: Remove the Caliper Bracket

• Use a 17mm socket and breaker bar 1/2-inch drive to remove the two caliper bracket bolts from the steering knuckle.
• Remove the caliper bracket and set it on a clean surface.
• These bolts are tighter than the caliper slide pin bolts.

Step 9: Remove the Old Rotor

• Pull the rotor straight off the wheel hub by hand.
• If the rotor is stuck from rust, tap the rotor hat area with a rubber mallet.
• Do not hit the wheel studs.
• The rotor hat is the raised center section of the brake rotor.

Step 10: Clean the Hub Face

• Use a wire brush to clean rust and dirt from the wheel hub face.
• Use brake cleaner spray and shop towels to wipe the hub clean.
• This helps the new rotor sit flat and prevents brake vibration.
• Clean metal equals smooth braking.

Step 11: Install the New Rotor

• Spray both faces of the new front brake rotor with brake cleaner spray.
• Wipe it dry using shop towels.
• Slide the new rotor onto the wheel hub.
• Thread one lug nut on by hand to hold the rotor in place while you work.

Step 12: Service the Caliper Bracket Hardware

• Use a flathead screwdriver to remove the old pad hardware clips from the caliper bracket.
• Use a wire brush and brake cleaner spray to clean the bracket contact areas.
• Install the new clips from the front brake hardware kit.
• Apply a thin layer of brake lubricant only where the pad ears touch the hardware clips.
• Do not put grease on the rotor or pad friction surface.

Step 13: Reinstall the Caliper Bracket

• Position the caliper bracket over the new rotor.
• Start both bracket bolts by hand to avoid cross-threading.
• Use a 17mm socket and torque wrench 1/2-inch drive to tighten the caliper bracket bolts.
• Torque to 106 Nm (78 ft-lbs).

Step 14: Compress the Caliper Piston

• Place one old brake pad against the caliper piston.
• Use a brake caliper compression tool to slowly push the piston fully back into the caliper.
• A brake caliper compression tool pushes the piston back evenly so the thicker new pads will fit.
• Watch the brake fluid reservoir under the hood to make sure it does not overflow.
• Compress slowly to protect the hydraulic system.

Step 15: Install the New Brake Pads

• Install the new inner and outer pads from the front brake pad set into the caliper bracket.
• Use your hands to slide the pad ears into the new hardware clips.
• The pads should move smoothly, but should not be loose.
• If they bind, remove them and clean the bracket again with the wire brush.

Step 16: Reinstall the Caliper

• Remove the bungee cord and lower the caliper over the new pads.
• Start both caliper slide pin bolts by hand.
• Use a 14mm socket and torque wrench 3/8-inch drive to tighten the slide pin bolts.
• Torque to 34 Nm (25 ft-lbs).

Step 17: Repeat on the Other Side

• Repeat Steps 5 through 16 on the other front brake.
• Always replace front pads and rotors as a pair.
• Use the same tools and torque specs on the opposite side.

Step 18: Reinstall the Front Wheels

• Remove the temporary lug nut holding each rotor.
• Install each wheel onto the hub.
• Thread all lug nuts by hand first.
• Use a 21mm lug nut socket and ratchet 1/2-inch drive to snug the lug nuts in a star pattern.

Step 19: Lower the RAV4 and Torque the Lug Nuts

• Use the floor jack rated 3-ton minimum to lift slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the vehicle until the tires touch the ground.
• Use a 21mm lug nut socket and torque wrench 1/2-inch drive to tighten the lug nuts in a star pattern.
• Torque to 103 Nm (76 ft-lbs).

Step 20: Pump the Brake Pedal

• Sit in the driver seat and press the brake pedal several times until it feels firm.
• This moves the caliper pistons back against the new pads.
• Do not drive until the pedal feels firm.

---

✅ After Repair

• ✅ Check the brake fluid level and top off only if needed with the correct brake fluid listed on the reservoir cap.
• ✅ Start your RAV4 and press the brake pedal again. It should feel firm, not spongy.
• ✅ Test brakes at very low speed in a safe area before normal driving.
• ✅ Listen for grinding, scraping, or clunking. Stop and recheck if anything sounds wrong.
• ✅ Recheck lug nut torque after the first short drive.
• ✅ Bed in the new pads and rotors: make 8-10 moderate stops from about 35 mph to 10 mph, letting the brakes cool briefly between stops.
• ✅ Avoid hard panic stops for the first 200 miles unless needed for safety.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $190-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
