🔧 Front Brakes and Rotors - Replacement

Your Camry uses a conventional front disc brake setup, so this job involves removing the caliper, bracket, pads, and rotor, then installing the new parts and torquing everything back to spec. It’s a solid first brake job if you take your time and keep everything clean.

Difficulty Level: Beginner | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Work on a flat, level surface and keep the transmission in Park.
• Chock the rear wheels before lifting the front.
• Use jack stands; never rely on the floor jack alone.
• Do not let the brake caliper hang by the hose.
• Brake dust can be harmful; avoid blowing it off with compressed air.
• Wear gloves and safety glasses.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (pair, rated for vehicle weight)
• Wheel chocks
• 21mm lug nut socket
• 3/8-inch ratchet
• 14mm socket
• 17mm socket
• Torque wrench
• Breaker bar
• C-clamp or brake caliper compression tool (specialty)
• Flathead screwdriver
• Wire brush
• Bungee cord or mechanic’s wire
• Brake cleaner
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake pad hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Brake cleaner - Qty: 2 cans

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front lug nuts slightly before lifting the vehicle.
• Pop the hood and check the brake fluid level before pushing the caliper pistons back. The level may rise.
• No battery disconnect is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the vehicle

• Use the floor jack to lift the front of your Camry at the factory lift point.
• Support it with jack stands under the proper front support points.
• Remove both front wheels using the 21mm lug nut socket.

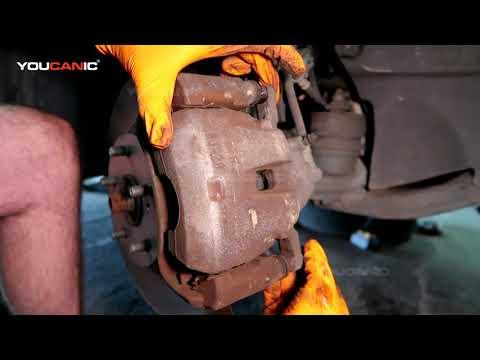

Step 2: Remove the brake caliper

• Use the 14mm socket to remove the caliper slide pin bolts.
• Lift the caliper off the bracket carefully.
• Hang the caliper with a bungee cord or mechanic’s wire so the brake hose is not stretched.
• Torque on reassembly: 32 Nm (24 ft-lbs) for the caliper slide pin bolts.

Step 3: Remove the caliper bracket

• Use the 17mm socket and a breaker bar to remove the caliper bracket bolts.
• Take the bracket off and set it aside.
• Torque on reassembly: 107 Nm (79 ft-lbs) for the caliper bracket bolts.

Step 4: Remove the rotor

• If the rotor is stuck, use a flathead screwdriver to gently free it.
• Remove any rotor retaining screw if equipped.
• Clean the hub face with a wire brush so the new rotor sits flat.
• Clean hub = smooth brake feel.

Step 5: Install the new rotor

• Spray the new rotor with brake cleaner and wipe it dry.
• Install the new rotor onto the hub.
• If a retaining screw was removed, reinstall it and snug it down.

Step 6: Install the new pads and hardware

• Install the new brake hardware clips from the brake pad hardware kit.
• Apply a thin layer of brake caliper slide pin grease to the slide pins only.
• Place the new pads into the bracket.
• Make sure the pad friction material faces the rotor.

Step 7: Compress the caliper piston

• Use a C-clamp or brake caliper compression tool to push the piston fully back into the caliper.
• Go slow and keep the old pad against the piston if using a C-clamp.
• Watch the brake fluid reservoir while compressing the piston.
• Go slow to avoid damage.

Step 8: Reinstall the caliper and wheel

• Set the caliper back over the new pads.
• Install the slide pin bolts with the 14mm socket.
• Reinstall the wheels and snug the lug nuts with the 21mm lug nut socket.
• Torque wheel nuts to 103 Nm (76 ft-lbs) in a star pattern.
• Torque caliper slide pin bolts to 32 Nm (24 ft-lbs).

Step 9: Repeat on the other side

• Replace the front brakes and rotors on both sides.
• Always do brake parts in pairs on the same axle.

---

✅ After Repair

• Before driving, pump the brake pedal several times until it feels firm.
• Check the brake fluid level and top off if needed.
• Test the brakes at low speed in a safe area first.
• Listen for rubbing or grinding noises.
• For the first 200 miles, avoid hard stops when possible.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $140-$280 (parts only)

You Save: $210-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
