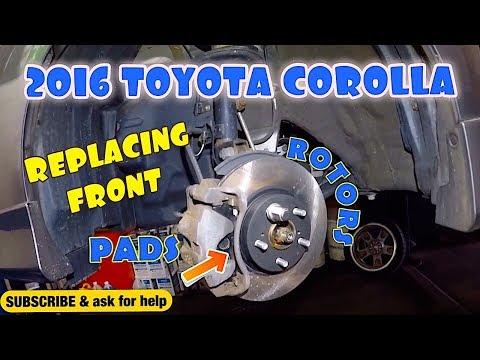

🔧 Front Brake Pads & Rotor Replacement - Brake Service

Front brake pads and rotors wear together, so replacing them as a set helps restore stopping power, reduce noise, and prevent pedal pulsation. On your Corolla, this is a straightforward driveway job if you take your time and keep everything clean.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work on a level surface and chock the rear wheels.
• Use jack stands; never rely on the floor jack alone.
• Brake parts may be hot after driving.
• Do not press the brake pedal with a caliper removed.
• Support the caliper so the brake hose is not stretched or twisted.
• Brake dust can be harmful; avoid blowing it off with compressed air.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 21mm socket
• 14mm socket
• 17mm socket
• Ratchet
• Breaker bar
• Torque wrench
• C-clamp
• Bungee cord
• Flat-blade screwdriver
• Wire brush
• Brake cleaner
• Micrometer or caliper gauge
• Wire brush
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Brake cleaner - Qty: 1 can

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Put the transmission in gear since this is a manual.
• Loosen the front wheel nuts slightly before lifting.
• Keep the key away from the ignition if you will be rotating the hub by hand.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheel nuts

• Use a 21mm socket and breaker bar to loosen the front wheel nuts while the car is still on the ground.
• Do not remove them yet.

Step 2: Lift and secure the car

• Use the floor jack to raise the front of the car at the proper lift point.
• Place jack stands under the front support points and lower the car onto them.
• Remove the front wheels with the 21mm socket.

Step 3: Remove the caliper

• Use a 14mm socket to remove the caliper slide bolts.
• Lift the caliper off the bracket and hang it with a bungee cord.
• Never let the caliper hang by the hose.

Step 4: Remove the caliper bracket

• Use a 17mm socket to remove the caliper bracket bolts.
• Remove the bracket from the knuckle.

Step 5: Remove the old rotor

• Pull the rotor off the hub by hand.
• If it sticks, use a flat-blade screwdriver through the access hole to work it free.
• If needed, tap the rotor hat lightly with a dead-blow hammer if available.

Step 6: Clean the hub

• Use a wire brush to clean rust and dirt from the hub face.
• Spray with brake cleaner and wipe dry with shop towels.
• A clean hub prevents rotor runout.

Step 7: Install the new rotor

• Install the new rotor onto the hub.
• If the rotor has a retaining screw, remove it only if equipped.
• Make sure it sits flush against the hub.

Step 8: Install the caliper bracket

• Reinstall the caliper bracket using the 17mm socket.
• Torque to 102 Nm (75 ft-lbs).

Step 9: Install the new pads

• Clean the caliper slide pins with brake cleaner and lubricate them with brake caliper slide pin grease.
• Install the new pad hardware if included.
• Place the new pads into the bracket.
• Apply grease only on contact points.

Step 10: Compress the caliper piston

• Use a C-clamp to slowly push the caliper piston back into the bore.
• Go slow and watch the brake fluid reservoir.
• If the reservoir is near full, remove a small amount of fluid first.

Step 11: Reinstall the caliper

• Set the caliper over the new pads and rotor.
• Install the slide bolts using the 14mm socket.
• Torque to 34 Nm (25 ft-lbs).

Step 12: Reinstall the wheel

• Put the wheel back on and hand-start all lug nuts.
• Lower the car enough for the tire to touch the ground.
• Use the 21mm socket and torque wrench to tighten the lug nuts in a star pattern.
• Torque to 103 Nm (76 ft-lbs).

Step 13: Repeat on the other side

• Replace the pads and rotor on the opposite front wheel the same way.
• Always do brakes in pairs.

---

✅ After Repair

• Press the brake pedal slowly several times until it feels firm.
• Check the brake fluid level and top off if needed.
• Before driving, confirm both front wheels spin freely without dragging badly.
• Test the brakes at low speed first.
• Bed in the new pads and rotors with several moderate stops, not hard panic stops.

---
