🔧 Equinox - Front Brake Pads & Rotors Replacement

You’ll be removing the front wheels, taking off the brake calipers and brackets, and swapping the pads and rotors on your Equinox. This restores stopping power, reduces noise, and helps prevent vibration while braking.

Difficulty Level: Beginner-Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cool brake system; hot brakes can burn skin.
• ⚠️ Use a solid, level surface and always support the vehicle with jack stands, never with the jack alone.
• ⚠️ Wear safety glasses and a dust mask; brake dust is harmful if inhaled.
• ⚠️ Do not press the brake pedal while a caliper is removed.
• ⚠️ Keep hands and tools clear when lowering the vehicle.
• ⚠️ If your ABS or brake warning light stays on afterward, do not drive fast; diagnose before highway use.
• Battery disconnection is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 2-ton or higher)
• 🛠️ Jack stands (rated 2-ton or higher) - Qty: 2
• 🛠️ Wheel chocks
• 🛠️ Breaker bar 1/2" drive
• 🛠️ 19mm socket (for wheel lug nuts)
• 🛠️ 13mm socket (front caliper slide pin bolts)
• 🛠️ 18mm socket (front caliper bracket bolts)
• 🛠️ Socket wrench 3/8" drive
• 🛠️ Socket wrench 1/2" drive
• 🛠️ Torque wrench 1/2" drive (up to 150 ft-lbs)
• 🛠️ Torque wrench 3/8" drive (up to 50 ft-lbs)
• 🛠️ C-clamp 6" or 8"
• 🛠️ Wire brush (steel)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Bungee cord or mechanic’s wire
• 🛠️ Brake cleaner spray
• 🛠️ Shop rags
• 🛠️ Small nylon brush
• 🛠️ Rubber mallet
• 🛠️ Wire brush drill attachment (specialty, optional)
• 🛠️ Disposable gloves
• 🛠️ Safety glasses
• 🛠️ Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front brake pad set - Qty: 1 (serves both front wheels)
• 🔩 Front brake rotors - Qty: 2 (replace both sides as a pair)
• 🔩 Front caliper hardware kit (pad clips / abutment clips) - Qty: 1
• 🔩 Brake grease (high-temperature synthetic) - Qty: 1 small tube
• 🔩 Brake cleaner - Qty: 1–2 cans
• 🔩 Anti-seize compound - Qty: 1 small tube (optional but recommended)
• 🔩 Replacement rotor retaining screw - Qty: 2 (if your rotors use them; many do not)

---

📋 Before You Begin

• Park the Equinox on level ground, engage the parking brake, and put the gear selector in Park.
• Place wheel chocks behind the rear wheels to prevent any movement.
• Loosen (do not remove) the front wheel lug nuts with the 19mm socket and breaker bar while the vehicle is still on the ground.
• Lay out tools and parts so everything is within easy reach.
• Open the hood and locate the brake fluid reservoir; if it’s very full, keep an eye on it later when you push the pistons back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

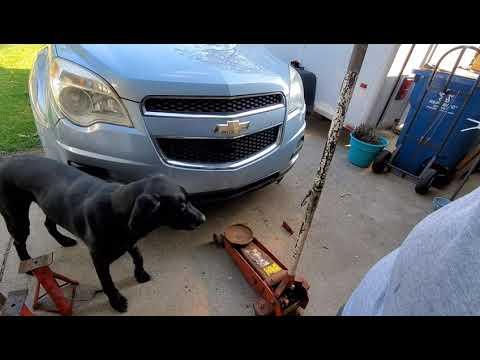

Step 1: Lift and support the front of the Equinox

• Use the floor jack (2-ton) at the front jacking point or crossmember to raise the front of the vehicle.
• Place jack stands under the recommended pinch welds or frame points on both sides, then lower the vehicle onto the stands.
• Double-check stability by gently rocking the vehicle by hand.
• Remove the front wheel lug nuts fully using the 19mm socket and 1/2" drive socket wrench, then remove both front wheels.
• Never work under a car supported only by a jack.

Step 2: Inspect and understand the front brake assembly

• Identify the rotor (large disc), caliper (clamp over rotor), and caliper bracket (metal frame that holds caliper).
• Look at how the pads sit in the bracket; this helps when installing new ones later.
• Take clear phone photos before disassembly.

Step 3: Remove the front caliper

• On the back of the caliper, locate the two slide pin bolts (top and bottom).
• Use a 13mm socket and 3/8" drive socket wrench to loosen and remove these caliper bolts.
• Gently wiggle and slide the caliper off the rotor; if it’s stuck, use a flathead screwdriver to pry lightly at the edge.
• Support the caliper using a bungee cord or mechanic’s wire hung from the spring or strut so it doesn’t hang by the hose.
• Never let the caliper hang on the rubber hose.

Step 4: Remove old brake pads and hardware

• Slide the old brake pads out of the caliper bracket by hand.
• Remove any metal pad clips or abutment clips from the caliper bracket. These will be replaced.
• Set old pads aside for comparison with new pads.

Step 5: Remove the caliper bracket

• Locate the two large caliper bracket bolts on the back of the steering knuckle.
• Use an 18mm socket with the 1/2" drive breaker bar to loosen them; these may be tight from the factory.
• Remove the two bolts completely, then slide the caliper bracket off and set aside.
• Torque spec on reassembly: 133 Nm (98 ft-lbs)

Step 6: Remove the old rotor

• Check if there is a small screw holding the rotor to the hub; if present, remove it with the appropriate bit (often a Torx or Phillips) using a socket wrench or screwdriver.
• Slide the rotor off the hub. If it’s stuck from rust, tap around the rotor hat with a rubber mallet until it loosens.
• Hit the rotor, not other suspension parts.

Step 7: Clean the hub surface

• Use a wire brush (or wire brush drill attachment) to clean rust and debris from the hub face where the rotor sits.
• Wipe the hub with a shop rag and brake cleaner to remove dust.
• Apply a very thin film of anti-seize compound to the hub face to help prevent future rotor sticking (avoid wheel stud threads).
• A clean hub helps prevent brake vibration.

Step 8: Install the new rotor

• Clean the new rotor with brake cleaner to remove any protective oil. Wipe both sides with a shop rag.
• Place the new rotor onto the hub, lining up any screw hole if used.
• If your rotor uses a retaining screw, install it now using the appropriate bit and socket wrench; just snug, not overly tight.
• Use a lug nut to hold rotor tight while working.

Step 9: Prepare and reinstall the caliper bracket with new hardware

• Use brake cleaner and a wire brush or nylon brush to clean the caliper bracket, especially where the pad clips sit.
• Install the new pad clips/abutment clips from the hardware kit onto the bracket; they should snap into place firmly.
• Position the caliper bracket over the new rotor and line up the bolt holes.
• Install the two caliper bracket bolts by hand first, then tighten with an 18mm socket and 1/2" drive socket wrench.
• Use the 1/2" drive torque wrench and 18mm socket to tighten both bracket bolts to 133 Nm (98 ft-lbs).

Step 10: Lubricate contact points and install new pads

• Apply a very small amount of brake grease to the areas of the pad clips where the pad “ears” will slide. Do not get grease on the rotor or pad friction surfaces.
• Slide the new inner and outer brake pads into the caliper bracket. The pad with the wear indicator (small metal tab) usually goes on the inner side.
• Make sure pads move freely in the clips.

Step 11: Compress the caliper piston

• Place an old brake pad against the caliper piston (inside the caliper).
• Use a C-clamp over the caliper body and old pad, then slowly tighten the clamp to push the piston back into the caliper until it is fully seated.
• While doing this, watch the brake fluid reservoir under the hood. If the level gets too high, use a shop rag to absorb some fluid, or a small hand pump if available.
• Go slowly to avoid damaging the piston seal.

Step 12: Reinstall the caliper over new pads

• Position the caliper over the new pads and onto the caliper bracket.
• Align the caliper slide pin holes with the bracket, then install the slide pin bolts by hand.
• Use a 13mm socket and 3/8" drive socket wrench to tighten the slide pin bolts.
• Use the 3/8" drive torque wrench and 13mm socket to torque the caliper slide pin bolts to 31 Nm (23 ft-lbs).
• Make sure the caliper can move slightly on the pins.

Step 13: Repeat steps on the other front side

• Repeat Steps 3–12 on the other front wheel using the same tools and torque values.
• Always replace pads and rotors in axle pairs.

Step 14: Reinstall wheels and lower the vehicle

• Reinstall each front wheel on the hub and thread the lug nuts by hand.
• Use the 19mm socket and 1/2" drive socket wrench to snug the lug nuts in a star pattern while the vehicle is still on jack stands.
• Use the floor jack to lift the vehicle slightly, remove the jack stands, then gently lower it to the ground.
• With the vehicle on the ground, use the 1/2" drive torque wrench and 19mm socket to torque the lug nuts in a star pattern to 140 Nm (103 ft-lbs).

Step 15: Pump the brake pedal and check fluid

• Sit in the driver’s seat and slowly press the brake pedal several times until it becomes firm; this seats the pads against the rotors.
• Check the brake fluid level in the reservoir. Adjust to the “MAX” line if needed (using the correct brake fluid type for your Equinox, usually DOT 3 or DOT 4).
• Inspect around the calipers and lines for any signs of leaks.

---

✅ After Repair

• Start the engine and press the brake pedal again; it should feel firm and not sink to the floor.
• Before driving at normal speed, perform a low-speed test in a safe area: move at 10–20 km/h and gently apply the brakes to ensure proper operation.
• Listen for abnormal noises (grinding, loud squeals, clunks). Some light noise can occur briefly with new pads but should fade.
• Break in (bed in) the new pads and rotors: perform 8–10 moderate stops from about 40–50 km/h down to 10–15 km/h, allowing a short cool-down between stops. Avoid hard emergency-style braking unless needed.
• After the first drive, recheck lug nut torque and inspect for any fluid leaks or loose hardware.

---
