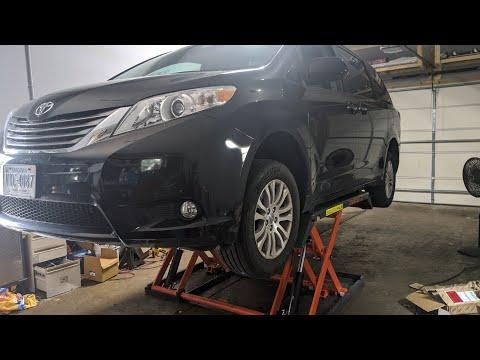

🔧 Sienna - Front Brake Pad and Rotor Replacement

This repair replaces the front brake pads and both front rotors on your Sienna. New pads and rotors restore smooth braking and help correct vibration, grinding, or reduced stopping performance.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

Assumption: The factory front brake calipers and standard-size wheels are installed.

---

⚠️ Safety & Precautions

• 🛑 Work on level, solid ground and support your Sienna with jack stands. Never work under a vehicle supported only by a jack.
• 🛑 Wear safety glasses and nitrile gloves. Brake dust and brake cleaner can irritate your eyes and skin.
• 🛑 Do not press the brake pedal while either front caliper is removed.
• 🛑 Never let a caliper hang from its flexible brake hose.
• 🛑 Brake fluid damages paint. Wipe spills immediately and rinse the area with water.
• 🛑 Keep grease and brake fluid away from pad friction material and rotor faces.
• 🛑 Replace front pads and rotors on both sides to maintain balanced braking.
• 🛑 Battery disconnection is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm deep socket
• 14mm socket
• 17mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench rated 20-150 ft-lbs
• 6-inch socket extension
• Front lifting floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks rated for passenger vehicles
• Disc brake piston compressor (specialty)
• Flat-tip screwdriver with 6-inch shaft
• Small nylon-bristle brush
• Small brass-bristle brush
• Rubber mallet with 16-ounce head
• Caliper hanger rated 50 lb minimum
• Drain pan with 2-quart capacity
• Plastic trim tool with flat edge
• Clean lint-free shop towels
• Nitrile mechanic gloves
• ANSI Z87.1 safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set with wear indicators - Qty: 1 set
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake pad hardware kit - Qty: 1 kit
• Front caliper slide-pin boots - Qty: 1 kit if damaged
• High-temperature silicone brake grease - Qty: 1 tube
• Non-chlorinated brake cleaner - Qty: 2 cans
• Toyota-compatible DOT 3 brake fluid - Qty: 1 pint if needed

---

📋 Before You Begin

• 🚐 Park your Sienna on level pavement, shift into Park, switch off the engine, and firmly apply the parking brake.
• 🧱 Place wheel chocks securely in front of and behind one rear tire.
• 🌡️ Let the brakes cool completely before touching the calipers or rotors.
• 🧰 Open the hood and locate the brake-fluid reservoir near the driver-side firewall. Clean around its cap with a lint-free shop towel.
• 📱 No infotainment service mode, scan tool, electronic parking-brake retraction, battery registration, or ADAS calibration is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Nuts

• Use the 21mm deep socket and 1/2-inch drive breaker bar to loosen each front wheel nut about one-half turn.
• Do not remove the wheel nuts while your Sienna is still on the ground.

Step 2: Raise and Support the Front

• Place the front lifting floor jack rated 2-ton minimum beneath the reinforced front-center lifting point on the front subframe.
• Raise the front until both tires clear the ground.
• Position the jack stands rated 2-ton minimum under the reinforced side pinch-weld support points behind the front wheels.
• Lower your Sienna slowly onto the stands. Gently push the body to verify that it is stable.

Step 3: Remove Both Front Wheels

• Use the 21mm deep socket and 3/8-inch drive ratchet to remove the wheel nuts.
• Remove both front wheels and slide them beneath the side rails as an additional safety measure.

Step 4: Check the Brake-Fluid Level

• Use a clean lint-free shop towel to clean the reservoir cap before opening it.
• Remove the cap by hand and place the drain pan with 2-quart capacity beneath the reservoir area as spill protection.
• If the reservoir is at the MAX line, leave the cap resting loosely in place and monitor the level while compressing the pistons.
• Do not allow brake fluid to overflow. Brake fluid removed from the reservoir must not be reused.

Step 5: Remove the First Caliper

• Turn the steering wheel to improve access to the side being serviced.
• Use the 14mm socket and 3/8-inch drive ratchet to remove the upper and lower caliper slide-pin bolts.
• Lift the caliper away from the pads. If it sticks, use the flat-tip screwdriver with 6-inch shaft carefully between the old pad and rotor to create slight clearance.
• Support the caliper from the suspension spring with the caliper hanger rated 50 lb minimum.
• A caliper hanger is a strong hook that supports the caliper without straining its brake hose.

Step 6: Remove the Old Pads and Hardware

• Pull the inner and outer pads out of the caliper bracket by hand.
• Use the flat-tip screwdriver with 6-inch shaft to carefully remove the stainless-steel pad-support clips.
• Note the position of the wear indicator before discarding the old pads. Install the new pad with its indicator in the matching position.
• Use the plastic trim tool with flat edge if a pad shim remains stuck to the caliper or bracket.

Step 7: Remove the Caliper Bracket

• Use the 17mm socket, 6-inch socket extension, and 1/2-inch drive breaker bar to remove the two caliper-bracket bolts.
• Support the bracket as the final bolt is removed.
• Clean the exposed pad-contact areas with the small brass-bristle brush and non-chlorinated brake cleaner.
• Do not grind or remove metal from the bracket.

Step 8: Inspect and Lubricate the Slide Pins

• Pull each slide pin and rubber boot from the bracket by hand, keeping the upper and lower pins in their original positions.
• Use the clean lint-free shop towels and non-chlorinated brake cleaner to remove old grease from the pins.
• Inspect for rust, deep pitting, torn boots, or pins that bind. Replace damaged components before continuing.
• Apply a thin coat of high-temperature silicone brake grease to each pin, then reinstall it with its boot fully seated.
• Move each pin by hand. It must slide smoothly without sticking.
• Use only rubber-safe silicone brake grease.

Step 9: Remove the Old Rotor

• Pull the rotor straight off the hub.
• If rust holds it in place, strike the rotor hat between the wheel studs with the rubber mallet with 16-ounce head.
• Do not strike the wheel studs, hub center, brake hose, or dust shield.
• If the rotor remains stuck, rotate it and repeat light blows around the hat until it releases.

Step 10: Clean the Hub

• Wear the ANSI Z87.1 safety glasses and nitrile mechanic gloves.
• Use the small brass-bristle brush to remove rust from the flat hub face and hub-center pilot.
• Use the small nylon-bristle brush, non-chlorinated brake cleaner, and clean lint-free shop towels to remove loose residue.
• The new rotor must sit completely flat against the hub. Rust trapped behind it can cause brake-pedal vibration.

Step 11: Install the New Rotor

• Clean both friction faces of the new rotor with non-chlorinated brake cleaner and clean lint-free shop towels.
• Slide the rotor over the wheel studs until it sits flush against the hub.
• Temporarily thread one wheel nut onto a stud by hand, flat side toward the rotor, to hold it in place.

Step 12: Reinstall the Caliper Bracket

• Position the bracket over the rotor and start both mounting bolts by hand.
• Use the 17mm socket, 6-inch socket extension, and 1/2-inch drive torque wrench rated 20-150 ft-lbs to tighten both bolts.
• Torque to 107 Nm (79 ft-lbs).

Step 13: Install New Pad Hardware and Pads

• Press the new stainless-steel pad-support clips fully into the bracket by hand.
• Apply a very thin film of high-temperature silicone brake grease to the pad ears where they contact the clips.
• Apply a thin film to the metal backs of the pads only where they contact the caliper and piston.
• Do not apply grease to the rotor or pad friction surfaces.
• Slide the new inner and outer pads into the bracket. They should move without excessive force.

Step 14: Compress the Caliper Pistons

• Place one old brake pad across both caliper pistons.
• Use the disc brake piston compressor to press both pistons slowly and evenly into the caliper.
• A piston compressor is a screw-operated tool that pushes the caliper pistons straight inward.
• Watch the brake-fluid reservoir while compressing the pistons. Stop immediately if fluid approaches the top.
• Inspect the piston dust boots and make sure they do not twist, tear, or become trapped.

Step 15: Reinstall the Caliper

• Remove the caliper hanger rated 50 lb minimum and lower the caliper over the new pads.
• Make sure the brake hose is not twisted and the slide-pin boots are seated correctly.
• Start both slide-pin bolts by hand.
• Use the 14mm socket and 1/2-inch drive torque wrench rated 20-150 ft-lbs to tighten the bolts.
• Torque to 34 Nm (25 ft-lbs).

Step 16: Repeat on the Opposite Side

• Repeat Steps 5 through 15 on the other front brake assembly using the same listed tools.
• Compare both finished assemblies before reinstalling the wheels. Hardware, wear indicators, and brake hoses should be positioned consistently.

Step 17: Reinstall the Wheels

• Remove the temporary wheel nuts holding the rotors.
• Install both front wheels and start every wheel nut by hand.
• Use the 21mm deep socket and 3/8-inch drive ratchet to snug the nuts in a star pattern.
• Use the front lifting floor jack rated 2-ton minimum to raise your Sienna slightly, remove the jack stands rated 2-ton minimum, and lower the tires to the ground.
• Use the 21mm deep socket and 1/2-inch drive torque wrench rated 20-150 ft-lbs to tighten the wheel nuts in a star pattern.
• Torque to 103 Nm (76 ft-lbs).

Step 18: Set the Pads Against the Rotors

• With the engine off, press and release the brake pedal slowly several times until it feels firm.
• Do not move your Sienna until the pedal is firm.
• Check the reservoir level. Add Toyota-compatible DOT 3 brake fluid only if the level is below the correct range.
• Install the reservoir cap securely and use a clean lint-free shop towel to wipe the area.

---

✅ After Repair

• ✅ Start the engine and hold firm pressure on the brake pedal for 30 seconds. The pedal should remain stable and should not sink toward the floor.
• ✅ Look around both calipers for fluid leaks, loose parts, twisted hoses, or hardware touching the rotors.
• ✅ Perform an initial brake test at walking speed in a safe, traffic-free area.
• ✅ Follow the brake-pad manufacturer's bedding procedure. If none is supplied, make 8-10 moderate stops from approximately 50 km/h to 15 km/h without stopping completely, then drive for 10 minutes to cool the brakes.
• ✅ Avoid hard emergency-style stops while bedding the pads unless necessary for safety.
• ✅ Do not hold the brake pedal down while stopped immediately after bedding. Hot pads can leave uneven deposits on the rotors.
• ✅ Recheck wheel-nut torque after approximately 80-160 km of driving.
• ✅ If the pedal remains soft, the vehicle pulls strongly, or fluid is leaking, do not drive your Sienna.

---

💰 DIY vs Shop Cost

Shop Cost: ₹35,000-₹80,000 (parts + labor)

DIY Cost: ₹25,000-₹60,000 (parts only)

You Save: ₹10,000-₹20,000 by doing it yourself!

Sonīpat-area labor and imported-part prices vary. This repair takes a shop approximately 2-3 hours.

---
