🔧 F-150 - Front Brake Pad & Rotor Replacement

This repair replaces the front brake pads and front brake rotors on your F-150. The pads create stopping friction, and the rotors are the metal discs they clamp onto; replacing both together helps prevent vibration, noise, and poor braking.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never rely on a jack by itself.
• ⚠️ Support your F-150 with jack stands before removing wheels.
• ⚠️ Brake dust can be harmful. Wear safety glasses and gloves, and do not blow dust with compressed air.
• ⚠️ The brake caliper is heavy. Do not let it hang by the rubber brake hose.
• ⚠️ The front brakes do not use the electronic parking brake, so no EPB service mode is needed for this front brake job.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 21mm socket
• 18mm socket
• 13mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive ratchet
• Flat-blade screwdriver
• Brake caliper piston compressor (specialty)
• Brake caliper hanger hook (specialty)
• Dead blow hammer
• Wire brush
• Brake cleaner spray
• Small bungee cord
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware kit - Qty: 1
• Brake lubricant - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your F-150 on level ground, shift to Park, and apply the parking brake.
• 🧱 Place wheel chocks behind the rear wheels so the truck cannot roll.
• 🛞 Loosen the front wheel lug nuts slightly before lifting the truck. Do not remove them yet.
• 🧴 Brake lubricant is a special high-temperature grease used only on brake contact points, not on pad friction material or rotor faces.
• 🔩 A caliper bracket is the heavy metal bracket that holds the brake pads and supports the caliper over the rotor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 21mm socket and 1/2-inch drive breaker bar to loosen each front wheel lug nut about 1/2 turn.
• Do this while the tires are still touching the ground so the wheels do not spin.
• Tip: Break them loose before lifting.

Step 2: Lift and Support the Front of the Truck

• Use a floor jack (rated 3-ton minimum) under the front frame crossmember or approved front frame lift point.
• Raise the front of your F-150 high enough for both front wheels to clear the ground.
• Place jack stands (rated 3-ton minimum) under the frame rails.
• Lower the truck gently onto the jack stands.
• Lightly shake the truck by hand to confirm it is stable before working underneath or near the wheels.

Step 3: Remove the Front Wheels

• Use a 21mm socket and 1/2-inch drive ratchet to remove the loosened lug nuts.
• Remove both front wheels and set them flat on the ground.

Step 4: Remove the Brake Caliper

• Turn the steering wheel to give yourself more room on the side you are working on.
• Use a 13mm socket and 3/8-inch drive ratchet to remove the two front brake caliper slide pin bolts.
• Slide the caliper off the pads and rotor.
• Use a brake caliper hanger hook (specialty) or small bungee cord to hang the caliper from the suspension spring or upper control arm.
• Do not let the caliper hang by the brake hose.

Step 5: Remove the Old Brake Pads

• Use your hands or a flat-blade screwdriver to lift the old brake pads out of the caliper bracket.
• Note how the pads and metal hardware clips are positioned before removing them.
• Remove the old metal pad clips from the caliper bracket by hand or with the flat-blade screwdriver.

Step 6: Remove the Caliper Bracket

• Use an 18mm socket and 1/2-inch drive breaker bar to remove the two caliper bracket bolts.
• Remove the caliper bracket and set it on a clean surface.
• These bolts are usually tight, so keep the socket straight on the bolt head.

Step 7: Remove the Old Rotor

• Slide the front brake rotor straight off the wheel hub by hand.
• If the rotor is stuck from rust, tap the rotor hat area with a dead blow hammer.
• Do not hit the wheel studs directly.
• Tip: Tap between the wheel studs.

Step 8: Clean the Hub Face

• Use a wire brush to clean rust and scale from the wheel hub face.
• Use brake cleaner spray and shop towels to wipe the hub clean.
• This helps the new rotor sit flat and prevents brake vibration.

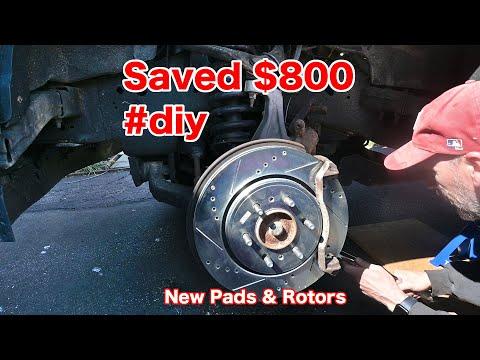

Step 9: Install the New Rotor

• Clean both sides of the new rotor with brake cleaner spray and shop towels to remove protective oil.
• Slide the new rotor onto the wheel studs.
• Thread one lug nut on by hand to hold the rotor flat while you work.

Step 10: Prepare the Caliper Bracket

• Use a wire brush to clean the areas where the brake hardware clips sit.
• Install the new clips from the front brake hardware kit into the caliper bracket by hand.
• Apply a very thin layer of brake lubricant to the pad contact areas on the hardware clips.
• Do not get lubricant on the rotor face or pad friction surface.

Step 11: Reinstall the Caliper Bracket

• Position the caliper bracket over the new rotor.
• Start both caliper bracket bolts by hand to avoid cross-threading.
• Use an 18mm socket and 1/2-inch drive torque wrench to tighten the caliper bracket bolts.
• Torque to 184 Nm (136 ft-lbs)

Step 12: Install the New Brake Pads

• Slide the new brake pads into the caliper bracket by hand.
• Make sure the friction material faces the rotor.
• The pads should move smoothly in the clips without being forced.
• If they bind, remove them and recheck the hardware clip seating.

Step 13: Compress the Caliper Pistons

• Place one old brake pad against the caliper pistons.
• Use a brake caliper piston compressor (specialty) to slowly push the pistons fully back into the caliper.
• A piston compressor is a tool that pushes the caliper pistons back so the new thicker pads fit over the rotor.
• Compress slowly to avoid pushing brake fluid back too quickly.

Step 14: Reinstall the Brake Caliper

• Remove the brake caliper hanger hook (specialty) or small bungee cord.
• Slide the caliper over the new pads and rotor.
• Start both slide pin bolts by hand.
• Use a 13mm socket and 3/8-inch drive torque wrench to tighten the caliper slide pin bolts.
• Torque to 35 Nm (26 ft-lbs)

Step 15: Repeat on the Other Front Side

• Repeat Steps 4 through 14 on the opposite front brake.
• Always replace front pads and rotors in pairs so braking stays even.

Step 16: Reinstall the Front Wheels

• Remove any temporary lug nut holding the rotor.
• Install the wheels onto the hubs.
• Start all lug nuts by hand.
• Use a 21mm socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 17: Lower the Truck and Torque the Wheels

• Use the floor jack (rated 3-ton minimum) to lift the truck slightly off the jack stands.
• Remove the jack stands (rated 3-ton minimum).
• Lower your F-150 until the tires touch the ground.
• Use a 21mm socket and 1/2-inch drive torque wrench to tighten the lug nuts in a star pattern.
• Torque to 204 Nm (150 ft-lbs)

Step 18: Pump the Brake Pedal

• Before moving the truck, press the brake pedal slowly several times until it feels firm.
• This seats the caliper pistons against the new pads.
• The first pedal push may go low. That is normal after compressing the pistons.

---

✅ After Repair

• ✅ Check the brake fluid level in the master cylinder reservoir and make sure it is between MIN and MAX.
• ✅ Start your F-150 and press the brake pedal again. It should feel firm, not spongy.
• ✅ Test drive slowly in a safe area before normal driving.
• ✅ Listen for grinding, scraping, clicking, or pulling to one side.
• ✅ Bed in the new brakes: make 8-10 moderate stops from about 30-40 mph, allowing cooling time between stops.
• ✅ Avoid hard emergency-style braking for the first 200 miles unless needed for safety.
• ✅ Recheck front lug nut torque after 25-50 miles using the 21mm socket and 1/2-inch drive torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
