🔧 1500 - Front Ball Joint Replacement

This job replaces the front suspension ball joints that connect the steering knuckle to the control arms. On your 1500, the upper and lower ball joints are typically serviced with the control arms rather than pressed out separately, which is safer and more reliable for a beginner DIY repair.

Difficulty Level: Advanced | Estimated Time: 4-6 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Suspension work is safety-critical. A loose ball joint can cause loss of steering control.
• ⚠️ Your 1500 has an eTorque mild-hybrid system. Do not work around orange high-voltage cables or hybrid components for this repair.
• ⚠️ Support the truck with jack stands only. Never rely on a floor jack by itself.
• ⚠️ Keep your hands clear when separating ball joints. The knuckle can shift suddenly.
• ⚠️ Do not hammer directly on the threaded ball joint stud. This can damage the joint or threads.
• ⚠️ A wheel alignment is required after replacing control arms or ball joints.
• ⚠️ Battery disconnect is not normally required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• 22mm socket
• 21mm socket
• 18mm socket
• 15mm socket
• 10mm socket
• 21mm wrench
• 18mm wrench
• 15mm wrench
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• Torque wrench 250 ft-lb capacity
• Ball joint separator tool (specialty)
• Pry bar 18-inch
• Dead blow hammer
• Needle-nose pliers
• Flathead screwdriver
• Paint marker
• Penetrating oil
• Wire brush
• Bungee cord
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front upper control arm with ball joint - Qty: 1 per side
• Front lower control arm with ball joint - Qty: 1 per side
• Front upper control arm mounting bolts and nuts - Qty: 1 kit per side
• Front lower control arm mounting bolts and nuts - Qty: 1 kit per side
• Upper ball joint nut - Qty: 1 per side
• Lower ball joint nut - Qty: 1 per side
• Cotter pins - Qty: 2 per side
• Front sway bar link nut - Qty: 1 per side if removed

---

📋 Before You Begin

• Park your 1500 on a flat, solid surface.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the truck.
• Spray penetrating oil on the ball joint nuts, control arm bolts, and sway bar link hardware.
• Take clear photos before disassembly. They help during reassembly.
• Use a paint marker to mark the position of alignment-related control arm hardware before removal.
• A ball joint separator is a tool that pushes the tapered ball joint stud loose from the steering knuckle without damaging the knuckle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 22mm socket and 1/2-inch drive breaker bar to loosen the front lug nuts about one turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Lift and Support the Truck

• Use a floor jack rated 3-ton minimum to lift the front of your 1500 from the front frame area.
• Place jack stands rated 3-ton minimum under the frame rails.
• Lower the truck gently onto the jack stands.
• Shake the truck lightly to confirm it is stable before working underneath.

Step 3: Remove the Front Wheel

• Use a 22mm socket to remove the lug nuts.
• Remove the wheel and place it flat under the frame as an extra safety backup.

Step 4: Support the Lower Control Arm

• Use the floor jack rated 3-ton minimum under the lower control arm near the ball joint.
• Raise the jack just enough to support the arm. Do not lift the truck off the jack stand.
• This keeps the suspension from dropping suddenly when the joint separates.

Step 5: Move the Brake Hose and ABS Wire Brackets

• Use a 10mm socket to remove any brake hose or ABS wire bracket bolts attached to the control arm or knuckle.
• Use a flathead screwdriver gently if a plastic retainer needs to be unclipped.
• Use a bungee cord to keep the brake hose and ABS wire out of the way.
• Do not pull or stretch the brake hose or ABS wire.

Step 6: Disconnect the Sway Bar Link if Needed

• Use an 18mm socket and 18mm wrench to remove the sway bar link nut from the control arm if it blocks access.
• Move the sway bar link aside by hand.
• If the link stud spins, hold the stud with the correct wrench while turning the nut with the 18mm socket.

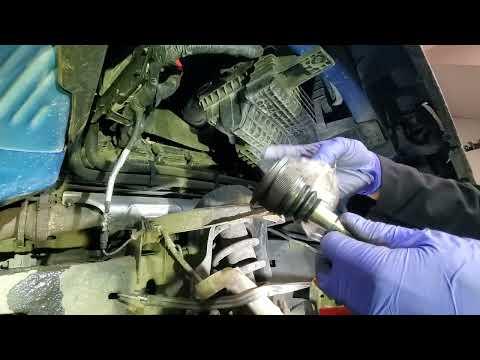

Step 7: Remove the Upper Ball Joint Nut

• Use needle-nose pliers to remove the cotter pin from the upper ball joint if equipped.
• Use a 21mm socket or 21mm wrench to loosen and remove the upper ball joint nut.
• Thread the nut back on a few turns by hand after loosening. This helps control the joint when it pops loose.

Step 8: Separate the Upper Ball Joint from the Knuckle

• Place the ball joint separator tool (specialty) between the upper control arm ball joint and the steering knuckle.
• Tighten the separator until the joint releases from the taper.
• Use a dead blow hammer only on the side of the knuckle if light vibration is needed.
• Remove the upper ball joint nut fully with the 21mm socket.
• Move the upper control arm away from the knuckle.

Step 9: Remove the Upper Control Arm

• Use a paint marker to mark the position of the upper control arm mounting bolts.
• Use a 21mm socket and 21mm wrench to remove the upper control arm mounting bolts and nuts.
• Remove the upper control arm from the truck.
• Install the new upper control arm in the same orientation.
• Install the bolts and nuts finger-tight only for now.
• Do not final-tighten control arm pivot bolts while the suspension is hanging.

Step 10: Remove the Lower Ball Joint Nut

• Use needle-nose pliers to remove the cotter pin from the lower ball joint if equipped.
• Use a 24mm or 21mm socket if applicable is not listed, so inspect nut size first; for this procedure, use the listed 21mm socket only if it fits correctly.
• If the nut is 24mm, stop and add a 24mm socket before continuing.
• Loosen the lower ball joint nut, then thread it back on a few turns by hand.

Step 11: Separate the Lower Ball Joint from the Knuckle

• Use the ball joint separator tool (specialty) to separate the lower ball joint stud from the steering knuckle.
• Support the knuckle with one hand and remove the lower ball joint nut fully with the correct socket.
• Use a bungee cord to support the steering knuckle so it does not pull on the brake hose.
• Protect the brake hose.

Step 12: Remove the Lower Control Arm

• Use a paint marker to mark the position of the lower control arm mounting hardware.
• Use a 21mm socket, 21mm wrench, 18mm socket, and 18mm wrench as needed to remove the lower control arm mounting bolts and nuts.
• Use a pry bar 18-inch carefully to guide the lower control arm out of its mounts.
• Remove the lower control arm from your 1500.

Step 13: Install the New Lower Control Arm

• Place the new lower control arm into the frame mounts.
• Use the pry bar 18-inch only as needed to align the bolt holes.
• Install the new mounting bolts and nuts by hand first.
• Keep the lower control arm pivot bolts loose until ride height is set.

Step 14: Reconnect the Lower Ball Joint

• Guide the lower ball joint stud into the steering knuckle by hand.
• Install the new lower ball joint nut.
• Use the correct socket and torque wrench 250 ft-lb capacity to tighten the lower ball joint nut to OEM specification for your exact replacement hardware.
• If the nut uses a cotter pin, continue tightening only enough to align the cotter pin hole. Never loosen the nut to align the hole.
• Install a new cotter pin using needle-nose pliers.

Step 15: Reconnect the Upper Ball Joint

• Guide the upper ball joint stud into the steering knuckle.
• Install the new upper ball joint nut by hand.
• Use a 21mm socket and torque wrench 250 ft-lb capacity to tighten the upper ball joint nut to OEM specification for your exact replacement hardware.
• If equipped with a cotter pin, align the hole by tightening slightly more and install a new cotter pin with needle-nose pliers.

Step 16: Set Suspension to Ride Height

• Use the floor jack rated 3-ton minimum under the lower control arm to raise the suspension until the truck just begins to lift slightly off the jack stand.
• This simulates normal ride height.
• Final-tightening control arm bolts at ride height prevents bushing damage.

Step 17: Final-Tighten Control Arm Mounting Bolts

• Use a 21mm socket, 21mm wrench, and torque wrench 250 ft-lb capacity to tighten the upper control arm mounting bolts to OEM specification.
• Use a 21mm socket, 18mm socket, and matching wrenches as needed to tighten the lower control arm mounting bolts to OEM specification.
• Because alignment cams and hardware vary by production setup, use the torque value supplied with your replacement hardware or service information for your exact part set.

Step 18: Reinstall the Sway Bar Link and Brackets

• Use an 18mm socket and 18mm wrench to reinstall the sway bar link nut if removed.
• Use a 10mm socket to reinstall the brake hose and ABS wire brackets.
• Check that the brake hose and ABS wire are not twisted, stretched, or rubbing.

Step 19: Reinstall the Wheel

• Place the wheel back onto the hub.
• Install the lug nuts by hand first to avoid cross-threading.
• Use a 22mm socket to snug the lug nuts in a star pattern.

Step 20: Lower the Truck and Torque Lug Nuts

• Use the floor jack rated 3-ton minimum to lift the truck slightly.
• Remove the jack stands rated 3-ton minimum.
• Lower the truck fully to the ground.
• Use a 22mm socket and torque wrench 250 ft-lb capacity to tighten the lug nuts in a star pattern to Torque to 176 Nm (130 ft-lbs).

---

✅ After Repair

• ✅ Turn the steering wheel lock-to-lock while parked and listen for binding or popping.
• ✅ Test-drive slowly first. Listen for clunks and make sure the steering feels normal.
• ✅ Recheck the lug nut torque after the first short drive: Torque to 176 Nm (130 ft-lbs).
• ✅ Schedule a professional four-wheel alignment immediately after this repair.
• ✅ If the steering wheel is off-center, do not keep driving long distances before alignment.
• ✅ If any ABS, stability control, or steering warning lights appear, scan the truck before further driving.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 per side including parts, labor, and alignment

DIY Cost: $300-$750 per side parts only, plus alignment

You Save: $500-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
