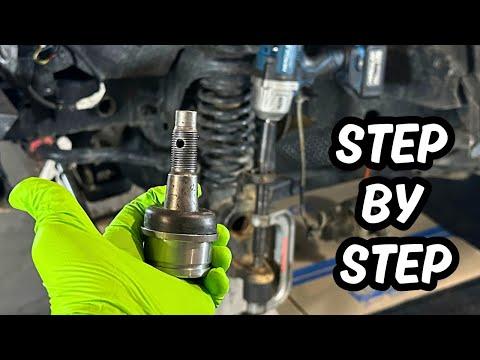

🔧 Wrangler - Front Ball Joint Replacement

This repair replaces the upper and lower front ball joints on your Wrangler’s solid front axle. Ball joints support steering knuckle movement, and worn ones can cause clunks, wandering steering, uneven tire wear, or looseness at the front wheels.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Wrangler with jack stands before working underneath. Never rely on a floor jack alone.
• ⚠️ The front axle, brake caliper, and steering knuckle are heavy. Keep fingers clear while removing them.
• ⚠️ Do not let the brake caliper hang by the rubber brake hose. Hang it with wire or a bungee cord.
• ⚠️ Ball joints are press-fit. A ball joint press is a clamp-style tool used to push joints in and out safely.
• ⚠️ If your Wrangler has ABS wiring at the wheel hub, keep the wire away from pulling, twisting, or impact.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 1/2-inch drive ratchet
• 3/8-inch drive ratchet
• 19mm socket
• 21mm socket
• 13mm 12-point socket
• 36mm axle nut socket
• 18mm wrench
• 21mm wrench
• Needle-nose pliers
• Ball joint separator (specialty)
• Ball joint press kit (specialty)
• Jeep/Dana 30 ball joint press adapters (specialty)
• Hammer
• Dead blow hammer
• Pry bar
• Flathead screwdriver
• Wire brush
• Bungee cord
• Anti-seize compound brush
• Grease gun

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front upper ball joint - Qty: 2
• Front lower ball joint - Qty: 2
• Ball joint cotter pins - Qty: 4
• Front axle nut - Qty: 2
• Brake cleaner - Qty: 1 can
• Chassis grease - Qty: 1 tube
• Anti-seize compound - Qty: 1 small tube

---

📋 Before You Begin

• Park your Wrangler on flat, solid ground.
• Put the manual transmission in 1st gear and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts slightly before lifting the vehicle.
• This job requires force. If the ball joint press is bending or slipping, stop and reposition it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 19mm socket and 1/2-inch drive breaker bar to loosen the front lug nuts about 1 turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Lift and Support the Front Axle

• Use a floor jack under the front axle tube to lift your Wrangler.
• Place jack stands under the front axle tubes, one on each side.
• Lower the axle gently onto the stands and keep the floor jack lightly touching the axle as a backup.
• Use wheel chocks behind the rear tires.

Step 3: Remove the Front Wheels

• Use a 19mm socket and 1/2-inch drive ratchet to remove the lug nuts.
• Remove both front wheels and set them flat on the ground.
• Factory wheel lug nut installation torque is Torque to 130 Nm (95 ft-lbs).

Step 4: Remove the Brake Caliper and Bracket

• Use a 21mm socket and 1/2-inch drive breaker bar to remove the 2 brake caliper bracket bolts.
• Slide the caliper and bracket assembly off the rotor.
• Use a bungee cord to hang the caliper from the frame or coil spring.
• Do not stretch or twist the brake hose.
• Brake caliper bracket bolt installation torque is Torque to 169 Nm (125 ft-lbs).

Step 5: Remove the Brake Rotor

• Pull the rotor straight off by hand.
• If it is stuck, use a dead blow hammer to tap around the rotor hat until it loosens.
• Use brake cleaner to clean rust dust from the hub area.

Step 6: Remove the Axle Shaft Nut

• Use a 36mm axle nut socket and 1/2-inch drive breaker bar to remove the axle nut from the center of the hub.
• If needed, have a helper press the brake pedal gently while you loosen it.
• Replace the axle nut during reassembly.
• Front axle nut installation torque is Torque to 135 Nm (100 ft-lbs).

Step 7: Remove the Wheel Hub Assembly

• Use a 13mm 12-point socket and 1/2-inch drive ratchet to remove the 3 hub bearing bolts from the back side of the steering knuckle.
• A 12-point socket has twice as many contact points as a normal 6-point socket and is required for these bolts.
• Use a hammer to tap the hub flange evenly if the hub is rusted into the knuckle.
• Pull the hub assembly off while guiding the axle shaft through the center.
• Hub bearing bolt installation torque is Torque to 102 Nm (75 ft-lbs).

Step 8: Remove the Outer Axle Shaft

• Carefully slide the axle shaft straight out by hand.
• Support the shaft as it comes out so the inner seal is not damaged.
• Set the shaft on a clean surface.
• Keep dirt out of axle tubes.

Step 9: Disconnect the Tie Rod End

• Use needle-nose pliers to remove the cotter pin from the tie rod end nut.
• Use a 21mm socket and 1/2-inch drive ratchet to remove the tie rod end nut.
• Use a ball joint separator to separate the tie rod end from the steering knuckle.
• Do not hammer directly on the tie rod threads.
• Tie rod end nut installation torque is Torque to 75 Nm (55 ft-lbs), then tighten further only as needed to align the cotter pin hole.

Step 10: Remove the Ball Joint Nuts

• Use needle-nose pliers to remove the cotter pins from the upper and lower ball joint studs.
• Use an 18mm wrench or 18mm socket to loosen the upper ball joint nut.
• Use a 21mm wrench or 21mm socket to loosen the lower ball joint nut.
• Leave both nuts threaded on a few turns. This keeps the knuckle from dropping suddenly.

Step 11: Separate the Steering Knuckle

• Use a hammer to strike the side of the steering knuckle near the ball joint tapers.
• A taper is a cone-shaped fit that locks the stud tightly into the knuckle.
• Once the tapers pop loose, use an 18mm wrench and 21mm wrench to remove the nuts fully.
• Lift the steering knuckle off the ball joints and set it aside.

Step 12: Press Out the Old Ball Joints

• Use a flathead screwdriver and hammer to remove any retaining clips if fitted.
• Use a wire brush to clean dirt and rust around the ball joint seats.
• Install the ball joint press kit and Jeep/Dana 30 ball joint press adapters.
• Press the lower ball joint downward and out first.
• Reposition the press, then press the upper ball joint upward and out.
• Keep the press screw straight. If it tilts, stop and reset the adapters.

Step 13: Press In the New Ball Joints

• Use a wire brush to clean the ball joint bores in the axle inner C.
• Apply a very light coat of anti-seize using an anti-seize compound brush to the outside shell of the new ball joints.
• Use the ball joint press kit and Jeep/Dana 30 ball joint press adapters to press the upper ball joint into place.
• Reposition the adapters and press the lower ball joint into place.
• Make sure each joint seats fully and squarely against the axle end.
• Install retaining clips with needle-nose pliers if supplied with the new joints.

Step 14: Reinstall the Steering Knuckle

• Place the steering knuckle over the upper and lower ball joint studs by hand.
• Install the lower ball joint nut first using a 21mm socket.
• Install the upper ball joint nut using an 18mm socket.
• Lower ball joint nut torque is Torque to 109 Nm (80 ft-lbs).
• Upper ball joint nut torque is Torque to 102 Nm (75 ft-lbs).
• Install new cotter pins using needle-nose pliers. Tighten the nut slightly more only if needed to align the cotter pin hole.

Step 15: Reinstall the Tie Rod End

• Insert the tie rod end into the steering knuckle by hand.
• Use a 21mm socket and torque wrench to tighten the tie rod end nut to Torque to 75 Nm (55 ft-lbs).
• Install a new cotter pin using needle-nose pliers.

Step 16: Reinstall the Axle Shaft

• Slide the axle shaft straight into the axle tube by hand.
• Support the shaft so the splines do not drag across the inner axle seal.
• A spline is the ridged end of the shaft that locks into the differential gear.

Step 17: Reinstall the Wheel Hub Assembly

• Apply a thin coat of anti-seize using an anti-seize compound brush where the hub fits into the knuckle.
• Slide the hub over the axle shaft and into the steering knuckle.
• Use a 13mm 12-point socket and torque wrench to tighten the 3 hub bolts to Torque to 102 Nm (75 ft-lbs).

Step 18: Install the New Axle Nut

• Thread the new axle nut on by hand first.
• Use a 36mm axle nut socket and torque wrench to tighten the axle nut to Torque to 135 Nm (100 ft-lbs).

Step 19: Reinstall the Brake Rotor and Caliper

• Slide the brake rotor onto the wheel studs by hand.
• Place the caliper and bracket assembly back over the rotor.
• Use a 21mm socket and torque wrench to tighten the caliper bracket bolts to Torque to 169 Nm (125 ft-lbs).

Step 20: Grease the New Ball Joints

• If the new ball joints have grease fittings, use a grease gun to add chassis grease until the rubber boot just begins to swell.
• Do not overfill the boots.
• If the new joints are sealed, skip this step.

Step 21: Reinstall the Wheels

• Install the wheels by hand and thread the lug nuts on by hand first.
• Use a 19mm socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.
• Lower your Wrangler with the floor jack.
• Use a 19mm socket and torque wrench to tighten the lug nuts to Torque to 130 Nm (95 ft-lbs).

---

✅ After Repair

• ✅ Pump the brake pedal several times before driving. This seats the brake pads back against the rotors.
• ✅ Turn the steering wheel lock-to-lock while parked and listen for binding or popping.
• ✅ Test drive slowly first. Check steering feel and brake operation.
• ✅ Recheck the ball joint cotter pins, hub bolts, and lug nut torque after the first short drive.
• ✅ Get a front-end alignment after ball joint replacement to protect your tires and steering feel.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $140-$350 (parts only)

You Save: $500-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
