🔧 Elantra - Engine Mount Replacement

Your Elantra uses three main powertrain mounts: the right-side engine mount, left-side transmission mount, and lower roll-stop mount. Replacing all three requires supporting the engine and transmission, removing each mount individually, and aligning the powertrain before tightening the fasteners.

Assumption: This procedure covers the stock 2.0L engine with either six-speed automatic or six-speed manual transmission; minor access differences are identified below.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Never remove more than one mount at a time. The engine can shift or fall.
• ⚠️ Use an engine support bar from above. A support bar spans the fenders and safely holds the engine with a chain.
• ⚠️ Do not place a jack directly against the aluminum oil pan or transmission case.
• ⚠️ If supplementary support is needed, place a wide wood block between the floor jack and a strong flat area of the powertrain.
• ⚠️ Support the vehicle with jack stands. Never work underneath a vehicle supported only by a jack.
• ⚠️ Disconnect the negative battery cable before removing the battery or working near the starter wiring.
• ⚠️ Allow the engine and exhaust system to cool completely before beginning.
• ⚠️ Mount fasteners must be started by hand. Never pull a misaligned mount into position using the bolts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Engine support bar rated 500kg minimum (specialty)
• Hydraulic floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Wide hardwood support block
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 10mm combination wrench
• 14mm combination wrench
• 17mm combination wrench
• 3/8-inch-drive ratchet
• 1/2-inch-drive ratchet
• 1/2-inch-drive breaker bar
• 3-inch socket extension
• 6-inch socket extension
• Universal-joint socket adapter
• Torque wrench rated 20-150Nm
• Flat-blade screwdriver
• Plastic trim-clip removal tool
• Slip-joint pliers
• Paint marker
• LED work light
• Mechanic's gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Right-side engine mount - Qty: 1
• Left-side transmission mount - Qty: 1
• Lower roll-stop mount - Qty: 1
• Engine-mount flange nuts and bolts - Qty: 1 set
• Transmission-mount flange nuts and bolts - Qty: 1 set
• Roll-stop mount bolts - Qty: 1 set

Replace all three for consistent powertrain control.

---

📋 Before You Begin

• 📍 Park your Elantra on firm, level ground. Select Park on an automatic or first gear on a manual, and apply the parking brake.
• 🛞 Place wheel chocks securely behind both rear wheels.
• 🔑 Switch the ignition off, remove the key, and keep it away from the vehicle.
• 🔋 Record any saved radio settings. Disconnecting the battery may reset the clock and learned idle settings.
• 📸 Photograph each mount and bracket before removal. Mark bracket positions with a paint marker.
• 🔩 Keep the fasteners from each mount separated and labeled.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Open the hood and use a 10mm wrench to loosen the negative battery-terminal clamp.
• Lift the negative clamp from the post and position it where it cannot spring back.
• Use a 10mm socket and 6-inch extension to remove the battery hold-down.
• Disconnect the positive terminal with a 10mm wrench, then lift out the battery while keeping it upright.

Step 2: Remove the Air-Cleaner Assembly

• Use a flat-blade screwdriver to release the intake-hose clamp.
• Disconnect the electrical connector from the intake duct or air-cleaner assembly by pressing its locking tab.
• Use slip-joint pliers to release any spring clamp attached to the intake duct.
• Use a 10mm socket and 3-inch extension to remove the air-cleaner housing bolts.
• Lift out the intake duct and air-cleaner housing. Cover the exposed throttle-body opening with a clean cover.
• Do not let debris enter the intake.

Step 3: Remove the Battery Tray

• Use a plastic trim-clip removal tool to release wiring retainers from the battery tray.
• Use a 12mm socket and 6-inch extension to remove the battery-tray fasteners.
• Lift out the tray to expose the left-side transmission mount.

Step 4: Raise and Secure the Vehicle

• Use the hydraulic floor jack at the front-center lifting point to raise your Elantra.
• Position both jack stands beneath the reinforced front-side support points, then lower the vehicle onto them.
• Use a plastic trim-clip removal tool and 10mm socket to remove the necessary lower splash-shield clips and bolts.
• Shake the vehicle gently to verify that it is stable before going underneath.

Step 5: Support the Powertrain

• Position the 500kg engine support bar across the reinforced upper body edges according to the support-bar manufacturer's instructions.
• Attach its chain to the factory engine lifting eye and remove slack until the engine's weight is supported.
• Place the hydraulic floor jack and wide hardwood block beneath a strong, flat powertrain surface as secondary support only.
• Raise the jack just enough to touch the surface. Do not lift or deform the oil pan.

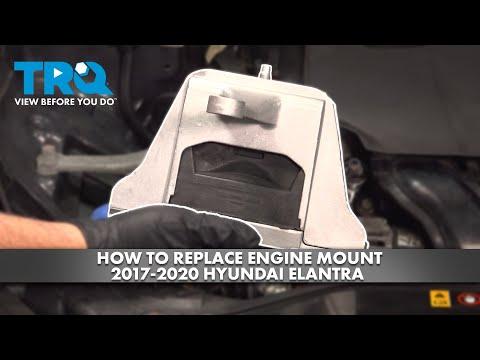

Step 6: Replace the Right-Side Engine Mount

• Use a paint marker to outline the mount and bracket positions.
• Use a 17mm socket, breaker bar, and extension to loosen the mount-to-engine bracket nuts.
• Use a 14mm or 17mm socket, as fitted, to loosen the mount-to-body bolts.
• Adjust the engine support bar slightly until the fasteners turn freely without carrying engine weight.
• Remove the nuts and bolts with the same sockets, then lift the mount from your Elantra.
• Compare the replacement mount with the old mount. Its bolt pattern, locating pins, and bracket height must match.
• Set the new mount into its locating points and start every fastener by hand.
• Use the engine support bar to align the holes. Do not lever against the timing cover.
• Use the torque wrench and correct socket to tighten the mount-to-body fasteners to 58.9-73.6Nm (43-54ft-lbs).
• Use the torque wrench and 17mm socket to tighten the mount-to-engine bracket nuts to 63.7-83.4Nm (47-62ft-lbs).

Step 7: Replace the Left-Side Transmission Mount

• Confirm that the engine support bar remains tight. Reposition the secondary jack and hardwood block beneath a strong transmission support point.
• Use a paint marker to outline the transmission mount and bracket.
• Move any wiring harness clips aside using the plastic trim-clip removal tool.
• On the automatic transmission, use a 14mm socket and 6-inch extension to remove any accessible cable or harness support bracket obstructing the mount.
• On the manual transmission, use a 12mm or 14mm socket to move the shift-cable support bracket only if it blocks mount removal. Do not alter cable adjustments.
• Use a 17mm socket and breaker bar to loosen the mount-to-transmission fasteners.
• Use a 14mm or 17mm socket, as fitted, to loosen the mount-to-body fasteners.
• Adjust the support bar until all fasteners can be removed without binding.
• Remove the mount and compare its locating points and bracket shape with the replacement.
• Install the new mount and start all fasteners by hand.
• Use the torque wrench and correct socket to tighten the mount fasteners evenly to 58.9-73.6Nm (43-54ft-lbs).
• Reinstall any cable or wiring bracket with its original fasteners using the 12mm or 14mm socket.
• Keep wiring clear of sharp mount edges.

Step 8: Replace the Lower Roll-Stop Mount

• The roll-stop mount is the lower link that limits forward-and-backward engine movement.
• From underneath, use an LED work light to inspect the mount orientation and photograph it.
• Use a 17mm or 19mm socket, breaker bar, and extension to loosen the through-bolt and bracket bolt.
• Adjust the floor jack very slightly until the bolts slide out without force.
• Remove the bolts and lower the old roll-stop mount.
• Position the replacement mount in the same direction and start both bolts by hand.
• Use the torque wrench and correct socket to tighten the roll-stop fasteners to 107.9-127.5Nm (80-94ft-lbs).
• Never use bolts to force alignment.

Step 9: Settle and Inspect the Mounts

• Verify with the LED work light that every locating pin is seated and no mount is twisted.
• Slowly release the hydraulic floor jack, then loosen the engine support bar until the mounts carry the powertrain normally.
• Use the torque wrench and appropriate sockets to recheck every accessible mount fastener at its specified torque.
• Remove the support bar, chain, jack, and hardwood block.

Step 10: Reinstall the Lower Shield

• Position the lower splash shield against its locating tabs.
• Use the plastic trim-clip removal tool by hand to install its clips.
• Use a 10mm socket to install the shield bolts snugly. Do not overtighten the plastic retainers.
• Raise your Elantra with the hydraulic floor jack, remove the jack stands, and lower it fully.

Step 11: Reassemble the Engine Compartment

• Install the battery tray and use a 12mm socket to tighten its original fasteners securely.
• Reconnect all wiring retainers using the plastic trim-clip removal tool.
• Reinstall the air-cleaner housing and tighten its bolts with a 10mm socket.
• Reconnect the intake duct and tighten its clamp with a flat-blade screwdriver.
• Reconnect the intake electrical connector until its lock clicks.
• Place the battery into its tray and install the hold-down using a 10mm socket.
• Connect the positive battery terminal first and tighten it with a 10mm wrench.
• Connect the negative terminal last and tighten it with a 10mm wrench.

---

✅ After Repair

• ✅ Check the engine compartment for forgotten tools, disconnected plugs, or trapped wiring.
• ✅ Start the engine with the transmission in Park or Neutral. Let it idle for three minutes without using the accelerator.
• ✅ Watch the engine while a helper shifts slowly between Reverse, Neutral, and Drive with the brake firmly applied. A manual-transmission vehicle should be checked while gently engaging the clutch in first gear and reverse.
• ✅ Stop immediately if the engine jumps excessively, a mount contacts the body, or you hear heavy knocking.
• ✅ Take a short, low-speed road test. Check acceleration, deceleration, turning, and idle vibration.
• ✅ Reinspect the mounts and surrounding wiring after the road test.
• ✅ Reset the clock and saved audio settings if necessary.
• ✅ The idle may fluctuate briefly while the engine computer relearns after battery disconnection.

---

💰 DIY vs Shop Cost

Shop Cost: ₹35,000-₹65,000 (parts + labor)

DIY Cost: ₹15,000-₹32,000 (parts only)

You Save: ₹20,000-₹33,000 by doing it yourself!

Labor rates around Sonīpat vary by workshop. This repair takes a shop approximately 3-5 hours, and imported U.S.-market parts can significantly affect pricing.

---
