🔧 Silverado 1500 - Outer Tie Rod End Replacement

Replace the outer tie rod end if its joint has looseness, a torn grease boot, or causes wandering and uneven tire wear. This is manageable for a careful beginner, but steering work must be followed by a professional wheel alignment.

Assumption: These instructions cover one outer tie rod end. Inner tie rod replacement requires a different procedure and specialty tool.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours per side, plus alignment

---

⚠️ Safety & Precautions

• 🛑 Never work under your Silverado while it’s supported only by a floor jack.
• 🛑 Keep the steering wheel centered and avoid turning it while the tie rod is disconnected.
• 🛑 Don’t drive if the tie rod stud won’t tighten securely or its cotter pin cannot be installed.
• 🛑 Don’t heat the tie rod or adjusting threads. Heat can weaken steering parts.
• 🛑 Battery disconnection isn’t required for this repair.
• 🛑 Get a wheel alignment immediately afterward, even if the steering wheel appears straight.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 22mm deep socket
• 21mm socket
• 22mm combination wrench
• Adjustable wrench rated for 40mm fasteners
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench rated to 200 ft-lbs
• Tie rod end puller (specialty)
• Needle-nose pliers
• Small wire brush
• Paint marker
• Tape measure marked in 1/16-inch increments
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Vehicle-specific outer tie rod end - Qty: 1 per side
• New castellated nut - Qty: 1 if not included
• New cotter pin - Qty: 1 if not included
• Chassis grease compatible with the replacement joint - Qty: 1 cartridge if the joint is greaseable
• Penetrating oil - Qty: 1 can

Replace both sides if they have similar mileage and wear. The current parts list includes steering tools and service pieces, but it doesn’t show a confirmed vehicle-specific outer tie rod end, so don’t substitute a universal boot for a worn joint.

---

📋 Before You Begin

• Park your Silverado on level, solid ground with the front wheels pointing straight.
• Shift into Park, apply the parking brake, and place wheel chocks behind both rear tires.
• Measure from a fixed point on the tie rod to the center of the outer stud using the tape measure. Write down the measurement.
• Mark the tie rod threads and jam-nut position using the paint marker.
• Count every full turn used to remove the old end. This keeps the alignment close enough for the trip to the alignment shop.
• Confirm that the replacement joint matches the old stud taper, thread direction, overall length, and grease-fitting arrangement before installation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Wheel Nuts

• With the tire still touching the ground, use the 22mm deep socket and breaker bar to loosen each wheel nut about one-quarter turn.
• Don’t remove the nuts yet.

Step 2: Raise and Support the Truck

• Use the 3-ton floor jack at the approved front lifting point.
• Position the 3-ton jack stand under the frame and lower the truck onto it.
• Leave the floor jack lightly touching the lifting point as backup support.
• Push the truck gently to confirm it’s stable before reaching into the wheel well.

Step 3: Remove the Front Wheel

• Use the 22mm deep socket to remove the loosened wheel nuts.
• Remove the wheel and slide it underneath the frame as an additional safety measure.

Step 4: Check That the Outer Joint Is Faulty

• Grip the tie rod near the outer joint using your gloved hand.
• Move the steering knuckle side to side while watching the stud. Any movement between the stud and joint confirms wear.
• If movement comes from the steering rack side instead, the inner tie rod may be the faulty part.

Step 5: Mark the Existing Adjustment

• Use the wire brush to clean the exposed threads and jam nut.
• Apply penetrating oil to the jam nut and outer tie rod threads.
• Use the paint marker to draw a line across the tie rod, jam nut, and old outer end.
• Use the tape measure to confirm and record the original installed length.
• Good marks save a crooked drive afterward.

Step 6: Loosen the Jam Nut

• The jam nut is the large nut that locks the outer end onto the threaded inner tie rod.
• Hold the outer tie rod end with the adjustable wrench.
• Use the correctly fitting combination wrench to break the jam nut loose.
• Move the jam nut only enough to free the outer end. Don’t spin it far from the marked position.

Step 7: Remove the Cotter Pin and Nut

• Straighten the cotter pin using the needle-nose pliers, then pull it completely out.
• Discard the cotter pin. Never reuse it.
• Use the correctly fitting deep socket and breaker bar to loosen the castellated nut.
• Leave the nut threaded onto the stud by three or four turns while separating the joint.

Step 8: Separate the Tie Rod Stud

• Place the tie rod end puller over the steering-knuckle arm and stud.
• Tighten the puller using the correctly fitting socket until the tapered stud releases.
• Remove the loosened castellated nut and lift the stud out of the steering knuckle.
• Don’t hammer directly on the stud or strike the steering knuckle.

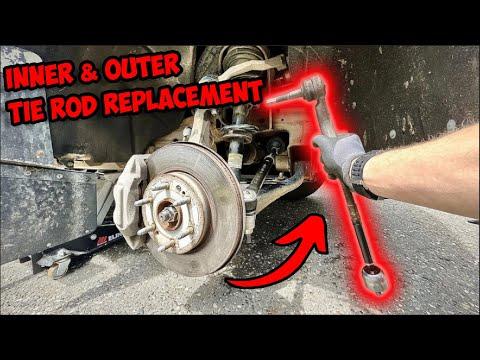

Step 9: Remove the Old Outer End

• Turn the old outer tie rod end counterclockwise by hand.
• Count and record every complete turn until it comes off.
• Leave the jam nut in its marked position.
• Compare the old and new parts before proceeding. Their stud taper, threads, and installed length must match.

Step 10: Install the New Outer End

• Thread the new end onto the inner tie rod by hand using exactly the same number of turns recorded during removal.
• Align it with the original paint mark and measured length.
• Don’t force the threads. If it won’t turn smoothly by hand, stop and check the thread direction and part fitment.

Step 11: Connect the Stud to the Knuckle

• Insert the new tapered stud into the steering-knuckle arm.
• Install the supplied castellated nut by hand.
• Use the correctly fitting socket and torque wrench to tighten the outer tie rod stud nut to 60 Nm (44 ft-lbs).
• If the cotter-pin holes don’t align, tighten the nut only enough to reach the next slot. Never loosen it to align the hole.
• Install a new cotter pin using the needle-nose pliers and bend both ends securely around the nut.

Step 12: Tighten the Jam Nut

• Hold the new outer tie rod end with the adjustable wrench so it doesn’t twist.
• Use the combination wrench to tighten the jam nut against the new end.
• Torque to 75 Nm (55 ft-lbs) when access permits use of the torque wrench and appropriate crowfoot.
• Confirm the tie rod length and paint marks haven’t moved.

Step 13: Lubricate the New Joint

• If the replacement includes a grease fitting, install it using the correctly fitting small wrench.
• Use a grease gun to add chassis grease until the boot just begins to swell.
• Stop before the boot becomes tight. Overfilling can split it.
• Skip this step if the new tie rod end is permanently sealed.

Step 14: Reinstall the Wheel

• Place the wheel onto the hub and install all wheel nuts by hand.
• Use the 22mm deep socket to snug them in a crisscross pattern.
• Remove the safety stand and lower the truck using the 3-ton floor jack.
• Use the 22mm deep socket and torque wrench to tighten the wheel nuts in a crisscross pattern to 190 Nm (140 ft-lbs).

---

✅ After Repair

• Start the engine and turn the steering slowly from side to side while parked. Listen for binding or clunking.
• Confirm the cotter pin is installed, the grease boot isn’t twisted, and the jam nut remains tight.
• Drive slowly on a quiet, level road only far enough to reach an alignment shop.
• Stop immediately if the steering wheel is badly off-center, the truck pulls sharply, or the steering feels loose.
• Have a four-wheel alignment performed. Replacing a tie rod changes toe, which is the direction each front tire points relative to the truck’s centerline.
• Recheck wheel-nut torque to 190 Nm (140 ft-lbs) after approximately 80-160 km.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 including one outer tie rod end, labor, and alignment

DIY Cost: ₹2,500-₹8,000 for the part and alignment, excluding tools

You Save: Approximately ₹4,000-₹10,000 by doing the mechanical work yourself.

Local parts availability and alignment rates around Sonīpat can vary. A shop normally needs about 1-2 hours plus alignment time.

---
