🔧 TITAN - Automatic Transmission Fluid Change

This service replaces the automatic transmission fluid in your TITAN’s 7-speed automatic transmission. This transmission uses a drain-and-fill process with a level check at a specific fluid temperature, so the fluid level must be set carefully.

Difficulty Level: Advanced | Estimated Time: 1.5-2.5 hours

Assumption: This procedure is for a stock 7-speed automatic transmission using Nissan Matic S-compatible ATF.

---

⚠️ Safety & Precautions

• ⚠️ Automatic transmission fluid gets very hot. Let the truck cool before opening any drain or check plugs.
• ⚠️ The truck must be level when checking the fluid level. A tilted truck can cause an overfill or underfill.
• ⚠️ Never crawl under a vehicle supported only by a jack. Use rated jack stands.
• ⚠️ Keep the engine running during the final level check. Use the parking brake and wheel chocks.
• ⚠️ Do not overfill. Too much fluid can cause foaming, harsh shifting, overheating, or transmission damage.
• ⚠️ Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Metric socket set
• 10mm socket
• 14mm socket
• 19mm socket
• Ratchet wrench
• Torque wrench (inch-pound and foot-pound)
• Fluid transfer pump
• Scan tool with transmission fluid temperature data (specialty)
• Infrared thermometer
• Flat-blade screwdriver
• Shop towels
• Measuring container with quart markings

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Nissan Matic S-compatible automatic transmission fluid - Qty: 5-7 quarts
• Transmission drain plug washer - Qty: 1
• Transmission fill/check plug washer - Qty: 1
• Brake cleaner - Qty: 1 can

---

📋 Before You Begin

• Park your TITAN on a flat, level surface.
• Set the parking brake firmly and place wheel chocks behind the rear wheels.
• If lifting the truck, use a floor jack and support it evenly with jack stands so the truck stays level.
• A scan tool is an electronic tool that reads live vehicle data. For this job, it must show transmission fluid temperature.
• A fluid transfer pump is a hand pump that pushes new fluid upward into the transmission fill port.
• Do not flush this transmission with a power-flush machine. A drain-and-fill is the safer DIY method.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Warm the Transmission Slightly

• Start the engine and let your TITAN idle for a few minutes.
• Use the brake pedal and shift slowly through P-R-N-D, pausing 2-3 seconds in each position.
• Shift back to Park and shut the engine off.
• Use a scan tool with transmission fluid temperature data if available. Warm fluid drains better, but it should not be burning hot.
• Warm, not hot, is best.

Step 2: Raise and Secure the Truck

• Use a floor jack to lift your TITAN only if you need more room underneath.
• Place jack stands under approved frame support points.
• Use an infrared thermometer or a level visual check to make sure the truck is sitting level front-to-rear and side-to-side.
• Keep wheel chocks in place.

Step 3: Remove the Underbody Shield if Equipped

• Put on safety glasses and nitrile gloves.
• Use a 10mm socket, 14mm socket, or flat-blade screwdriver as needed to remove the lower shield fasteners.
• Set the shield and fasteners aside in order.
• Reinstall shield fasteners later snugly if no exact torque is available: Torque to 7-10 Nm (62-89 in-lbs) for small 10mm-head fasteners.

Step 4: Locate the Transmission Drain and Fill/Check Plug

• Use a shop towel to wipe dirt from the transmission pan area.
• Identify the drain plug at the transmission pan.
• Identify the fill/check plug on the transmission case or pan area. This is used to add fluid and set the final level.
• Use a 19mm socket or the correct socket from your metric socket set to confirm the fill/check plug can loosen before draining.
• Always loosen fill before drain.

Step 5: Drain the Old Fluid

• Place a 10-quart drain pan under the transmission drain plug.
• Use a 19mm socket or correct-size socket from your metric socket set to remove the drain plug.
• Let the fluid drain until it slows to a drip.
• Use a measuring container with quart markings to measure the amount removed.
• Clean the drain plug with shop towels.

Step 6: Reinstall the Drain Plug

• Install a new transmission drain plug washer.
• Thread the drain plug in by hand first to avoid cross-threading.
• Use a torque wrench with the correct socket to tighten the drain plug: Torque to 34 Nm (25 ft-lbs).
• Wipe the area clean with shop towels.

Step 7: Add New Transmission Fluid

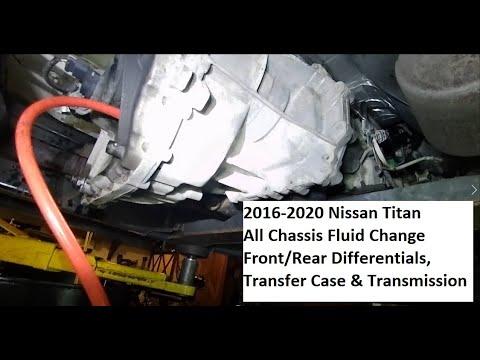

• Insert the hose from the fluid transfer pump into the fill/check opening.
• Pump in the same amount of Nissan Matic S-compatible automatic transmission fluid that you drained out.
• Add fluid slowly to avoid spills.
• Temporarily install the fill/check plug finger-tight.
• Measure what came out.

Step 8: Circulate the New Fluid

• Start the engine while your TITAN is still level and safely supported.
• Keep your foot on the brake pedal.
• Move the shifter slowly through P-R-N-D, pausing 2-3 seconds in each gear.
• Return the shifter to Park and leave the engine idling.
• Use the scan tool with transmission fluid temperature data to monitor fluid temperature.

Step 9: Set the Final Fluid Level

• With the engine idling and the truck level, monitor transmission fluid temperature with the scan tool.
• When fluid temperature is approximately 35-45°C (95-113°F), remove the fill/check plug using the correct socket from your metric socket set.
• If no fluid comes out, use the fluid transfer pump to add small amounts until fluid begins to trickle from the check opening.
• If fluid flows heavily, let it drain until it becomes a thin stream or drip.
• The correct level is reached when fluid comes out as a small trickle at the specified temperature range.
• Install a new transmission fill/check plug washer.
• Use a torque wrench to tighten the fill/check plug: Torque to 34 Nm (25 ft-lbs).

Step 10: Clean and Reinstall the Shield

• Use brake cleaner and shop towels to clean any spilled fluid from the transmission pan and crossmember.
• Reinstall the underbody shield if removed.
• Use a 10mm socket, 14mm socket, or flat-blade screwdriver to reinstall the fasteners.
• For small shield bolts, tighten gently: Torque to 7-10 Nm (62-89 in-lbs).

Step 11: Lower the Truck

• Use the floor jack to lift slightly off the jack stands.
• Remove the jack stands.
• Lower your TITAN slowly to the ground.
• Remove the wheel chocks after the truck is fully on the ground.

---

✅ After Repair

• Start the engine and let it idle.
• Shift through all gear positions again, pausing briefly in each one.
• Road test gently for 10-15 minutes. Check for smooth engagement and normal shifting.
• Park on level ground and inspect underneath for leaks around the drain plug and fill/check plug.
• No battery registration, coding, or infotainment reset is required.
• Dispose of used transmission fluid at a proper recycling center or auto parts store.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $70-$140 (parts only)

You Save: $180-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
