🔧 Highlander - Automatic Transmission Fluid Replacement

This procedure drains and refills the factory 6-speed automatic transmission using Toyota Genuine ATF WS fluid. It replaces only the serviceable fluid in the pan; a pressurized transmission flush is not recommended for routine maintenance.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

Assumption: This procedure applies to your Highlander’s stock 6-speed automatic transmission.

---

⚠️ Safety & Precautions

• ⚠️ Keep your Highlander perfectly level while checking the fluid level.
• ⚠️ Support the vehicle with four jack stands. Never work beneath a vehicle supported only by a jack.
• ⚠️ Transmission fluid becomes hot enough to cause burns. Wear gloves and safety glasses.
• ⚠️ Use only Toyota Genuine ATF WS or a fluid explicitly approved for Toyota WS applications. Do not mix it with gear oil, CVT fluid, or universal fluid without the WS approval.
• ⚠️ The engine must run during the final level check. Keep hands, clothing, and tools away from moving or hot components.
• ⚠️ Do not disconnect the battery for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack rated 2-ton minimum
• Four jack stands rated 2-ton minimum
• Wheel chocks
• 10mm socket
• 10mm hex-bit socket
• 6mm hex-bit socket
• 3/8-inch ratchet
• 3/8-inch torque wrench rated 10-80 Nm
• 6-inch socket extension
• Plastic trim-clip removal tool
• OBD-II scan tool with Toyota ATF temperature data (specialty)
• Transmission-fluid transfer pump with flexible hose (specialty)
• Drain pan with 6-quart minimum capacity
• Graduated 5-quart measuring container
• Digital infrared thermometer
• Level tool at least 12 inches long
• Funnel with 12-inch flexible hose
• Nitrile mechanic gloves
• Safety glasses
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Toyota Genuine ATF WS automatic transmission fluid - Qty: 5 US quarts
• Transmission drain-plug sealing washer - Qty: 1
• Transmission overflow-plug sealing washer - Qty: 1
• Transmission fill-plug sealing washer - Qty: 1

---

📋 Before You Begin

• 📍 Park on firm, level ground and apply the parking brake.
• 📍 Chock the rear wheels before lifting the front, then support all four corners at equal height.
• 📍 Place the level tool on a flat lower-body surface and adjust the jack stands until your Highlander is level front-to-rear and side-to-side.
• 📍 Connect the OBD-II scan tool before draining. Confirm that it can display automatic transmission fluid temperature, commonly shown as “A/T Oil Temperature.”
• 📍 Drive for approximately 10 minutes, then allow the transmission to cool. The final fluid-level check must occur at 35-45°C (95-113°F).
• 📍 Measure all drained fluid. This provides a safe starting amount for the refill.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and level the vehicle

• Place the wheel chocks securely against the rear tires.
• Use the 2-ton floor jack at Toyota-approved lifting points, then lower your Highlander onto four 2-ton jack stands.
• Use the 12-inch level tool to confirm the vehicle is level in both directions.
• Push firmly on the body before going underneath. The vehicle must remain stable.

Step 2: Remove the lower splash shield

• Use the 10mm socket, 3/8-inch ratchet, and plastic trim-clip removal tool to remove the fasteners blocking access to the transmission.
• Arrange the fasteners in removal order because their positions may differ.
• Take a photo before removing mixed fasteners.

Step 3: Loosen the fill plug first

• Locate the transmission fill plug on the side of the transmission case.
• Clean around it with shop towels so dirt cannot enter the transmission.
• Use the 10mm hex-bit socket, 6-inch extension, and 3/8-inch ratchet to loosen and remove the fill plug.
• Do not drain the transmission until the fill plug can be removed. Otherwise, you could drain fluid without being able to refill it.

Step 4: Drain and measure the old fluid

• Position the 6-quart drain pan beneath the transmission drain plug.
• Use the 10mm hex-bit socket and 3/8-inch ratchet to remove the drain plug slowly.
• Allow the fluid to drain until it becomes a slow drip.

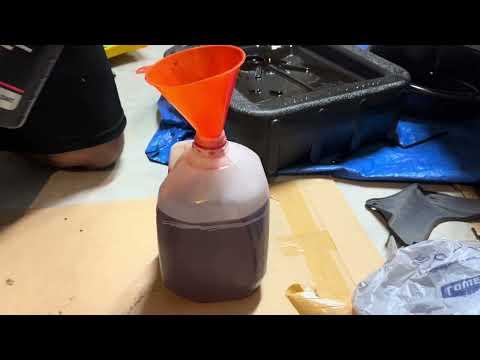

• Transfer the old fluid into the graduated measuring container and record the exact amount.
• Inspect the fluid for metallic glitter, large particles, or a strong burned smell. Heavy debris or slipping symptoms require professional diagnosis rather than another fluid change.

Step 5: Drain the overflow passage

• Look through the drain opening for the plastic overflow tube. This tube establishes the transmission’s operating fluid level.
• Use the 6mm hex-bit socket and 3/8-inch ratchet to remove the overflow tube carefully.
• Allow the remaining fluid to drain and add this quantity to your measurement.
• Inspect the plastic tube for cracks or damaged threads. Replace it if damaged.

Step 6: Reinstall the overflow tube and drain plug

• Thread the overflow tube in by hand to prevent cross-threading.
• Use the 6mm hex-bit socket and torque wrench to tighten the overflow tube to 1.7 Nm (15 in-lbs). Do not overtighten the plastic tube.
• Install a new sealing washer on the drain plug.
• Use the 10mm hex-bit socket and torque wrench to install the drain plug temporarily to 40 Nm (30 ft-lbs).

Step 7: Add the initial fluid quantity

• Insert the flexible hose from the transmission-fluid transfer pump into the fill opening.
• Use the transfer pump to add the measured drained quantity of Toyota Genuine ATF WS, then add approximately 0.4 US quart (0.4 liter) extra for the level-setting procedure.
• Install the old fill plug finger-tight with the 10mm hex-bit socket. It will be removed again after the level check.
• Clean any spilled fluid with shop towels.

Step 8: Circulate the new fluid

• Confirm that the parking brake is applied and all four wheels are securely supported.
• Connect the OBD-II scan tool and display the automatic transmission fluid temperature.
• Start the engine and keep it idling. Do not raise engine speed.
• With your foot firmly on the brake pedal, move the selector slowly through P-R-N-D, pausing approximately three seconds in each position.
• Repeat the shift sequence twice, then return the selector to Park.

Step 9: Set the fluid level at the correct temperature

• Watch the scan tool until the fluid temperature reaches 35-45°C (95-113°F).
• Leave the engine running and your Highlander level.
• Place the drain pan underneath the drain plug.
• Use the 10mm hex-bit socket and 3/8-inch ratchet to remove only the outer drain plug. Do not remove the internal overflow tube.
• If fluid exits in a steady stream, wait until it becomes a thin trickle or rapid drip.
• If no fluid exits, reinstall the drain plug temporarily. Use the transfer pump to add ATF WS through the fill opening in approximately 0.2-quart increments, then repeat the overflow check.
• The level is correct when a thin stream changes to a slow drip within the specified temperature range.
• If the temperature exceeds 45°C (113°F), reinstall the plugs, shut off the engine, allow the fluid to cool, and repeat this step.

Step 10: Tighten the transmission plugs

• With the level correctly set, install a new sealing washer on the drain plug.
• Use the 10mm hex-bit socket and torque wrench to tighten the drain plug to 40 Nm (30 ft-lbs).
• Shut off the engine.
• Install a new sealing washer on the fill plug.
• Use the 10mm hex-bit socket and torque wrench to tighten the fill plug to 49 Nm (36 ft-lbs).
• Wipe the transmission case clean with shop towels so future leakage is easy to identify.

Step 11: Reinstall the splash shield

• Position the lower splash shield using both hands.
• Start every fastener by hand.
• Use the 10mm socket and 3/8-inch ratchet to snug the bolts without overtightening them.
• Use the plastic trim-clip removal tool by hand to reinstall the reusable clips.

Step 12: Lower the vehicle

• Use the 2-ton floor jack to lift each end slightly and remove the jack stands.
• Lower your Highlander carefully onto level ground.
• Remove the wheel chocks only after the vehicle is fully lowered.

---

✅ After Repair

• ✅ Start the engine and hold the brake pedal while selecting each gear. Engagement should feel smooth and consistent.
• ✅ Take a gentle 10-15 minute drive. Avoid hard acceleration during the initial check.
• ✅ Park on clean, level ground and inspect beneath the transmission for leaks.
• ✅ Recheck the fill-plug and drain-plug areas after several days. Do not tighten either plug beyond specification.
• ✅ Dispose of the old transmission fluid at an authorized recycling or hazardous-waste facility. Never pour it onto the ground or into a drain.
• ✅ A drain-and-fill replaces only part of the total fluid capacity. Do not repeatedly exchange fluid to address slipping, delayed engagement, or transmission fault codes.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹22,000 (parts + labor)

DIY Cost: ₹5,000-₹9,000 (fluid and sealing washers only)

You Save: ₹7,000-₹13,000 by doing it yourself!

Labor rates in the Panipat area vary by facility. This repair takes a shop approximately 1-1.5 hours.

---
