🔧 Ranger - Engine Oil & Oil Filter Replacement

This job drains the old engine oil, replaces the oil filter, and refills your Ranger with fresh oil. Clean oil protects the turbocharged 2.3L engine from wear, heat, and sludge buildup.

Difficulty Level: Beginner | Estimated Time: 45-75 minutes

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and let the engine cool until it is warm, not hot.
• ⚠️ Never crawl under your Ranger supported only by a jack. Use jack stands every time.
• ⚠️ Used engine oil can irritate skin. Wear nitrile gloves and wash up afterward.
• ⚠️ Keep oil away from the exhaust and turbo area to prevent smoke or fire risk.
• ⚠️ Battery disconnect is not required for this oil change.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 13mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension
• Oil filter wrench 74mm 14-flute
• Torque wrench 5-80 ft-lb range
• Drain pan 8-quart minimum
• Funnel
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine oil SAE 5W-30 full synthetic - Qty: 6.2 quarts
• Engine oil filter - Qty: 1
• Engine oil drain plug sealing washer - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Ranger on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels before lifting the front.
• 🌡️ Run the engine for 2-3 minutes if cold, then shut it off. Warm oil drains faster.
• 🛢️ Have your drain pan ready before removing the drain plug.
• 📘 A torque wrench is a ratchet-style tool that tightens bolts to a measured tightness so they are not too loose or too tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Support the Front

• Use the floor jack rated 3-ton minimum to lift the front of your Ranger at the front crossmember or approved front jacking point.
• Place the jack stands rated 3-ton minimum under the frame rails.
• Lower the truck gently onto the jack stands and give it a light shake to confirm it is stable.
• Put on safety glasses and nitrile gloves.
• Never trust the jack alone.

Step 2: Remove the Lower Access Panel or Skid Plate

• Use an 8mm socket, 13mm socket, 3/8-inch drive ratchet, and 3/8-inch drive extension to remove the fasteners from the lower engine shield or skid plate, if equipped.
• Set the fasteners aside in order so they go back into the same places.
• If your XL 4WD has a simple front splash shield only, remove only the section blocking access to the oil pan and filter.

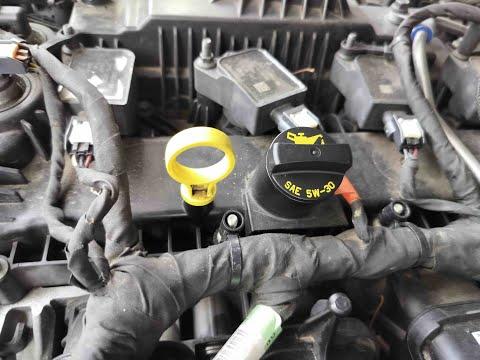

Step 3: Open the Oil Fill Cap

• Open the hood.
• Remove the engine oil fill cap by hand.
• Pull the dipstick up slightly by hand. This helps oil drain smoothly.
• Loose cap equals faster draining.

Step 4: Drain the Old Engine Oil

• Place the drain pan 8-quart minimum under the engine oil drain plug.
• Use a 13mm socket and 3/8-inch drive ratchet to loosen the drain plug.
• Remove the drain plug by hand while pressing inward slightly, then pull it away quickly to avoid oil running over your hand.
• Let the oil drain until it slows to an occasional drip.
• Inspect the drain plug and replace the engine oil drain plug sealing washer.

Step 5: Reinstall the Drain Plug

• Wipe the drain plug area with shop towels.
• Start the drain plug by hand to avoid cross-threading. Cross-threading means the threads are not lined up and can damage the oil pan.
• Use the 13mm socket and torque wrench 5-80 ft-lb range to tighten the drain plug.
• Torque to 27 Nm (20 ft-lbs).
• Hand-start every bolt first.

Step 6: Remove the Old Oil Filter

• Move the drain pan 8-quart minimum under the oil filter area.
• Use the oil filter wrench 74mm 14-flute, 3/8-inch drive ratchet, and 3/8-inch drive extension to loosen the oil filter.
• Spin the filter off by hand and keep the open end facing upward as much as possible.
• Check that the old rubber gasket came off with the old filter. The gasket is the rubber sealing ring on the filter.
• Wipe the filter mounting surface clean with shop towels.

Step 7: Install the New Oil Filter

• Use a clean gloved finger to spread a light film of fresh engine oil SAE 5W-30 full synthetic on the new filter gasket.
• Thread the new engine oil filter onto the engine by hand.
• Tighten the filter until the gasket contacts the mounting surface, then tighten another 3/4 turn by hand.
• If using the oil filter wrench 74mm 14-flute with the torque wrench 5-80 ft-lb range, tighten only to the filter maker’s printed spec if listed on the filter.
• Do not overtighten the oil filter. It can crush the gasket and cause leaks.

Step 8: Refill the Engine Oil

• Place the funnel into the oil fill opening.
• Pour in 5.7 quarts of engine oil SAE 5W-30 full synthetic first.
• Reinstall the oil fill cap by hand.
• Push the dipstick fully back into place by hand.
• Keep the remaining oil nearby for final level adjustment.

Step 9: Start the Engine and Check for Leaks

• Use the ignition key to start the engine.
• Let it idle for 30-60 seconds.
• Use a flashlight if available, or look carefully from a safe angle, to inspect the drain plug and oil filter for leaks.
• Shut the engine off.
• Wait 5 minutes so oil can drain back into the oil pan.

Step 10: Set the Final Oil Level

• Pull the dipstick out by hand and wipe it clean with shop towels.
• Reinsert the dipstick fully, then pull it out again to read the level.
• Add small amounts of engine oil SAE 5W-30 full synthetic through the funnel until the level reaches the full mark.
• Total oil capacity with filter is about 6.2 quarts.
• Do not overfill. Too much oil can cause engine damage.

Step 11: Reinstall the Lower Shield

• Raise the lower engine shield or skid plate into position by hand.
• Start all fasteners by hand first.
• Use the 8mm socket, 13mm socket, 3/8-inch drive ratchet, and 3/8-inch drive extension to tighten the fasteners snugly.
• If using a torque wrench 5-80 ft-lb range, tighten small shield bolts to Torque to 10 Nm (89 in-lbs) and larger skid plate bolts to Torque to 35 Nm (26 ft-lbs).

Step 12: Lower the Vehicle

• Use the floor jack rated 3-ton minimum to lift your Ranger slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the truck slowly to the ground.
• Remove the wheel chocks.

Step 13: Reset the Oil Life Monitor

• Turn the ignition on without starting the engine.
• Use the steering wheel buttons to open Settings > Vehicle > Oil Life Reset.
• Press and hold OK until the display confirms the reset to 100%.
• If that menu is not shown, use the cluster controls to navigate to Truck Info > Engine Information > Oil Life Reset, then press and hold OK.

---

✅ After Repair

• ✅ Drive your Ranger for 5-10 minutes, then park on level ground and recheck the oil level after 5 minutes.
• ✅ Look under the engine for any fresh drips around the drain plug or oil filter.
• ✅ Dispose of used oil and the old oil filter at a recycling center or auto parts store.
• ✅ Recheck the oil level again the next day before the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $95-$160 (parts + labor)

DIY Cost: $45-$80 (parts only)

You Save: $50-$80 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.4-0.7 hours.

---
