🔧 XT4 - Fuel Cap Replacement

Your XT4 uses a capless fuel filler, so it doesn't have a conventional screw-on fuel cap to replace. Two spring-loaded doors inside the filler neck seal the system automatically. Don’t install either universal fuel cap shown in the parts list because neither is confirmed for the capless opening.

Assumption: You mean the cap at the gasoline-filling opening, not the painted exterior fuel door.

Difficulty Level: Beginner for inspection and cleaning | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• 🔥 Switch off the engine and keep cigarettes, flames, heaters, and sparks away.
• 🧤 Wear nitrile gloves and safety glasses because gasoline can irritate skin and eyes.
• ⚠️ Never push a screwdriver into the capless filler doors. It can damage the seals or create a vapor leak.
• 🔋 Battery disconnection isn’t required for inspection or cleaning.
• 🚫 Don’t use compressed air, lubricant, silicone spray, or water inside the filler neck.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile fuel-resistant gloves
• Clean lint-free microfiber cloth
• Capless fuel-filler funnel
• Flashlight

---

🔩 Required Parts

HowToo sells parts for the fuel-filling system, but no replacement screw cap is required for the factory capless design:

• Capless fuel-filler funnel - Qty: 1, only if the original funnel is missing
• Capless filler-neck assembly - Qty: 1, only if its internal doors or seals are damaged

Do not use the listed universal Stant fuel caps. A cap that merely sits over the opening can trap dirt or interfere with the exterior fuel door. Capless means capless. Sometimes the easiest repair is not buying the wrong part.

---

📋 Before You Begin

• 🅿️ Park your XT4 outdoors on level ground, select Park, apply the parking brake, and switch off the ignition.
• ⏳ Wait several minutes after refueling if gasoline has spilled around the opening.
• 🧼 Clean loose dirt from around the exterior opening before testing the internal doors.
• 📖 Use only the capless fuel-filler funnel designed for the vehicle. The funnel opens both internal doors without damaging them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the fuel door

• Unlock your XT4 and press the rear edge of the painted fuel door.
• Use the flashlight to inspect the black filler opening.
• Confirm there isn’t a broken aftermarket cap, foreign object, or heavy dirt around the opening.

Step 2: Clean the outside of the opening

• Use the clean lint-free microfiber cloth to wipe around the rim.
• Keep dirt from falling into the filler neck.
• Don’t pour cleaner into the opening.

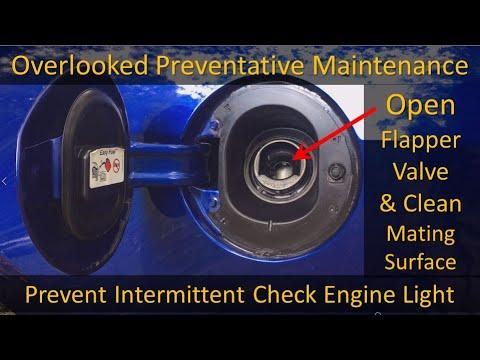

Step 3: Inspect the capless doors

• Put on the safety glasses and nitrile fuel-resistant gloves.
• Use the flashlight to check that the visible spring-loaded door sits flat and centered.
• Look for cracks, bending, corrosion, or debris preventing it from closing.
• Don’t force the door open with your fingers or a metal tool.

Step 4: Test the filler mechanism

• Insert the capless fuel-filler funnel straight into the opening until both internal doors release.
• Withdraw the funnel slowly and straight outward.
• Use the flashlight to confirm the doors return fully closed.
• A crooked funnel can jam the inner door.

Step 5: Decide whether replacement is necessary

• If both doors close normally, no fuel-cap replacement is needed.
• If a door remains open, is physically damaged, or repeatedly causes an evaporative-emissions warning, the capless filler-neck assembly needs diagnosis and possible replacement.
• Replacing that assembly involves fuel-vapor connections and access behind the body or beneath the vehicle. That’s an Advanced repair and shouldn’t be attempted without the exact service procedure.

Step 6: Close the exterior fuel door

• Remove the capless fuel-filler funnel and wipe it with the clean lint-free microfiber cloth.
• Store the funnel away from the passenger compartment according to its storage location.
• Press the painted fuel door closed until it sits flush with the body.

---

✅ After Repair

• ⛽ At the next fill-up, insert the pump nozzle straight and fully into the opening.
• ✅ Confirm the nozzle enters smoothly and the internal doors close after removal.
• ⚠️ If the check-engine light remains on, the vehicle needs an EVAP-system scan. EVAP means the sealed system that contains gasoline vapors.
• 🔍 Codes such as a large-leak or small-leak fault don’t automatically prove the filler neck is bad. Hoses, valves, and seals can cause the same warning.

---

💰 DIY vs Shop Cost

Shop Cost: Approximately ₹1,500-₹4,000 for inspection and diagnosis, excluding replacement parts

DIY Cost: ₹0-₹1,500 for cleaning supplies or a replacement funnel

You Save: Approximately ₹1,500-₹2,500 by inspecting it yourself first.

Local labor and imported Cadillac-part prices vary. Full filler-neck replacement costs substantially more and requires an exact quote.

---
