🔧 Corolla - Timing Belt Check

Your Corolla does not use a timing belt. It uses a timing chain, which is internal to the engine and normally is not replaced as routine maintenance.

If you are hearing rattling, seeing a check-engine light, or have timing-related fault codes, the repair is a timing chain diagnosis/repair, not a timing belt replacement.

Difficulty Level: Advanced | Estimated Time: 8-12 hours if timing chain service is actually needed

---

⚠️ Safety & Precautions

• ⚠️ Do not attempt to “replace the timing belt” on your Corolla because there is no belt to replace.
• ⚠️ Timing chain work requires removing engine covers, setting engine timing, sealing components, and verifying cam/crank alignment.
• ⚠️ Incorrect timing chain installation can cause severe engine damage.
• ⚠️ Disconnect the negative battery terminal before any major engine disassembly.
• ⚠️ Work only on a cold engine to avoid burns from hot coolant, oil, and metal parts.

---

🔧 Required Tools

You'll need the following tools for timing chain diagnosis or replacement:

• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 3/8-inch ratchet
• 1/2-inch breaker bar
• Torque wrench 10-150 ft-lb
• Metric wrench set 10mm-19mm
• Plastic trim removal tool
• Flat-blade screwdriver
• Phillips screwdriver
• Engine support bar (specialty)
• Harmonic balancer puller (specialty)
• Toyota-compatible scan tool (specialty)
• Timing chain holding tool (specialty)
• Gasket scraper
• Drain pan 10-quart minimum
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Front timing cover sealant - Qty: 1
• Crankshaft front oil seal - Qty: 1
• Valve cover gasket - Qty: 1
• Engine oil 0W-20 synthetic - Qty: 4.4 quarts
• Oil filter - Qty: 1
• Toyota Super Long Life coolant equivalent - Qty: as needed

---

📋 Before You Begin

• Park your Corolla on level ground and let the engine cool completely.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Use a 10mm socket to disconnect the negative battery terminal.
• A scan tool is a device that reads vehicle computer data and trouble codes; use a Toyota-compatible scan tool to check for cam/crank timing codes before replacing parts.
• If there is no chain rattle, no timing fault code, and no oil pressure issue, timing chain replacement is usually unnecessary.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm This Is Not a Timing Belt Job

• Use your eyes and a flashlight to inspect the passenger side of the engine bay.
• Your Corolla uses an internal metal timing chain, not an external rubber timing belt.
• The visible rubber belt on the front of the engine is the serpentine belt, which drives accessories like the alternator and A/C compressor.
• Do not remove parts yet.

Step 2: Scan for Timing-Related Codes

• Use a Toyota-compatible scan tool and connect it to the OBD-II port under the driver side dash.
• Turn the ignition to ON without starting the engine.
• Read stored and pending codes.
• Common timing-related codes may include camshaft/crankshaft correlation faults.
• If no timing codes are present, do not replace the timing chain based only on mileage.

Step 3: Listen for Chain Noise

• Start the engine and listen near the passenger side of the engine using caution around moving parts.
• A failing chain tensioner may make a brief rattle at cold start or a repeated metallic rattle.
• If the engine runs smoothly and quietly, the timing chain is likely not the problem.
• Keep hands away from belts.

Step 4: Check Oil Level and Condition

• Shut the engine off and wait 5 minutes.
• Use a clean rag to pull and wipe the engine oil dipstick.
• Reinsert the dipstick fully, then pull it again to check the level.
• Low or dirty oil can cause timing chain tensioner noise because the tensioner uses engine oil pressure.
• If oil is low, top off with 0W-20 synthetic engine oil.

Step 5: If Timing Chain Replacement Is Required, Prepare the Vehicle

• Use a 10mm socket to disconnect the negative battery terminal.
• Use a floor jack rated 2-ton minimum to raise the front of the vehicle.
• Place the vehicle securely on jack stands rated 2-ton minimum.
• Use safety glasses and nitrile gloves.
• Place a drain pan 10-quart minimum under the engine.

Step 6: Remove Access Covers and Drain Fluids

• Use a 10mm socket and plastic trim removal tool to remove the lower splash shield fasteners.
• Drain engine oil into the drain pan.
• Drain coolant as needed into the drain pan.
• Dispose of used oil and coolant properly according to local rules in Panipat, Haryana.

Step 7: Support the Engine

• Install an engine support bar across the upper engine bay.
• An engine support bar holds the engine safely when a mount is removed.
• Do not rely on a floor jack alone to support the engine during timing chain work.

Step 8: Remove the Serpentine Belt and Front Components

• Use the correct metric wrench on the belt tensioner to release belt tension.
• Remove the serpentine belt from the pulleys.
• Use 10mm, 12mm, and 14mm sockets as needed to remove front engine brackets and covers blocking the timing cover.
• Keep bolts organized by location.
• Take photos before removal.

Step 9: Remove the Crankshaft Pulley

• Use a 19mm socket and 1/2-inch breaker bar to loosen the crankshaft pulley bolt.
• Use a harmonic balancer puller to remove the pulley.
• A harmonic balancer puller is a tool that safely pulls the crank pulley off without prying against the engine cover.

Step 10: Remove the Valve Cover and Timing Cover

• Use a 10mm socket to remove valve cover bolts.
• Use a gasket scraper carefully to loosen old sealant only where needed.
• Use 10mm, 12mm, and 14mm sockets to remove timing cover bolts.
• Do not gouge aluminum sealing surfaces.

Step 11: Set Engine to Top Dead Center

• Use a 19mm socket on the crankshaft bolt area to rotate the engine clockwise only.
• Top Dead Center means cylinder 1 is at the top of its compression stroke and timing marks align.
• Align crankshaft and camshaft timing marks exactly before removing the chain.
• If marks do not align, stop and recheck before continuing.

Step 12: Remove the Timing Chain Components

• Use a timing chain holding tool to keep components from moving.
• Use a 10mm socket to remove timing chain guide bolts.

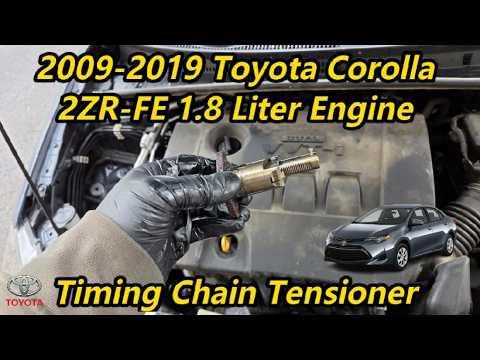

• Use a 10mm socket to remove the timing chain tensioner.
• Remove the timing chain only after confirming all timing marks are aligned.

Step 13: Install the New Timing Chain Kit

• Install the new chain, guides, and tensioner from the timing chain kit.
• Match colored chain links to the crankshaft and camshaft timing marks.
• Use a torque wrench 10-150 ft-lb to tighten guide and tensioner bolts to the manufacturer specification for your Corolla.
• Do not guess torque values on timing components.

Step 14: Verify Timing by Hand

• Use a 19mm socket to rotate the crankshaft clockwise two full turns by hand.
• Stop immediately if you feel hard resistance.
• Recheck timing mark alignment after rotation.
• If marks are off, remove the chain and correct alignment before starting the engine.

Step 15: Reseal and Reassemble

• Use a gasket scraper to clean old sealant from the timing cover and engine block surfaces.
• Apply front timing cover sealant in the correct bead pattern.
• Use a torque wrench 10-150 ft-lb to tighten timing cover bolts to the manufacturer specification in sequence.
• Install a new crankshaft front oil seal.
• Install the valve cover with a new valve cover gasket.

Step 16: Refill Fluids and Start Engine

• Install a new oil filter.
• Refill with 0W-20 synthetic engine oil.
• Refill coolant with Toyota Super Long Life coolant equivalent.
• Use a 10mm socket to reconnect the negative battery terminal.
• Start the engine and listen for abnormal rattles.

---

✅ After Repair

• ✅ Let the engine idle and check for oil or coolant leaks.
• ✅ Use a Toyota-compatible scan tool to clear codes and recheck for cam/crank correlation faults.
• ✅ Verify the engine reaches normal temperature without overheating.
• ✅ Recheck engine oil and coolant levels after the first full heat cycle.
• ✅ If the engine runs rough, rattles, or sets timing codes, shut it off immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,000 USD equivalent, depending on labor rate and parts availability

DIY Cost: $250-$600 USD equivalent for parts and supplies

You Save: $950-$1,400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
