🔧 Equinox - Timing Belt Information

Your Equinox does not use a timing belt. It has a timing chain, which is a different part designed to last the life of the engine under normal conditions. Replacing the timing chain is an advanced job that normally requires special tools and professional-level experience.

Difficulty Level: Advanced (not recommended for beginners) | Estimated Time: 8-12 hours (professional shop)

---

⚠️ Safety & Precautions

• ⚠️ The timing chain is inside the engine; incorrect work can cause severe engine damage.
• ⚠️ This job requires supporting the engine, removing engine mounts, and opening the engine front cover.
• ⚠️ Special tools and factory procedures are required to correctly time the camshafts and crankshaft.
• ⚠️ For your skill level, I strongly recommend having a professional shop handle any timing chain work.

---

🔧 Required Tools

You'll need the following tools for this repair (for reference only; not recommended as a DIY for a beginner):

• 🛠️ Metric socket set (8mm-19mm)
• 🛠️ Metric combination wrench set (8mm-19mm)
• 🛠️ Torque wrench (10-150 ft-lbs range)
• 🛠️ Breaker bar 1/2"
• 🛠️ Engine support bar (specialty)
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Plastic trim removal tool set
• 🛠️ Flathead screwdriver medium
• 🛠️ Phillips screwdriver medium
• 🛠️ Pry bar 12"
• 🛠️ Timing chain alignment/locking tool kit for GM 1.5L (specialty)
• 🛠️ Oil drain pan 8-quart
• 🛠️ Shop rags
• 🛠️ Brake cleaner spray
• 🛠️ Safety glasses
• 🛠️ Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Timing chain kit (chain, guides, tensioner) - Qty: 1
• 🔩 Timing cover gasket set - Qty: 1
• 🔩 Crankshaft front seal - Qty: 1
• 🔩 Valve cover gasket set - Qty: 1
• 🔩 Engine oil (0W-20 full synthetic) - Qty: 5 quarts
• 🔩 Engine oil filter - Qty: 1
• 🔩 Coolant (DEX-COOL compatible) - Qty: 1-2 gallons premixed
• 🔩 Accessory drive belt (serpentine belt) if worn - Qty: 1
• 🔩 RTV silicone sealant (engine-grade) - Qty: 1 tube
• 🔩 New crankshaft pulley bolt - Qty: 1
• 🔩 Assorted one-time-use fasteners/clips - Qty: as needed

---

📋 Before You Begin

• 🧾 Park on level ground, set the parking brake, and let the engine cool completely.
• 🧾 Disconnect the negative battery cable using a 10mm wrench before any work near the engine timing area.
• 🧾 Be prepared for an oil change and partial coolant drain as part of this job.
• 🧾 Have a clear work area and keep removed bolts and parts organized in labeled containers.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Because your Equinox uses a timing chain and this is an advanced internal engine repair, I do not recommend that a first-time DIYer attempt the full procedure. A mistake can bend valves or damage the engine. Instead, I’ll outline what a professional has to do so you understand the scope, and then I will guide you to a safer DIY option (replacing the accessory/serpentine belt) if that’s what you meant.

Step 1: Understand What You Actually Need

• 🛠️ Most owners say "timing belt" when they really mean the serpentine belt (the belt you can see that drives the alternator, A/C, etc.).
• 🛠️ The serpentine belt on your Equinox is replaceable by a beginner with basic tools.
• 🛠️ The timing chain is hidden behind the engine front cover and normally is only replaced if there are symptoms like rattling noise on cold start, timing-related fault codes, or severe engine issues.
• 🛠️ Tell me if you actually meant the serpentine belt so I can give you an easy, detailed guide.

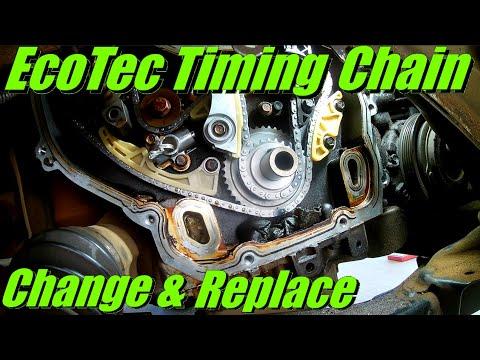

Step 2: What a Timing Chain Job Involves (For Awareness Only)

• 🛠️ Use a floor jack and jack stands to safely raise and support the front of the vehicle.
• 🛠️ Remove engine covers and shields with a 10mm socket and plastic trim tools.
• 🛠️ Support the engine with an engine support bar across the top, then remove the right-side engine mount with a socket set.
• 🛠️ Remove the serpentine belt using the correct socket or serpentine belt tool on the belt tensioner.
• 🛠️ Drain engine oil with a 15mm socket on the drain plug into an oil drain pan.
• 🛠️ Remove the crankshaft pulley bolt with a breaker bar and appropriate socket, then remove the pulley.
• 🛠️ Unbolt the timing cover with a socket set and carefully pry it off using a plastic pry tool to avoid damage.
• 🛠️ Rotate the engine to top dead center and install a timing chain alignment/locking tool kit on the camshafts and crankshaft.
• 🛠️ Remove the old chain, guides, and tensioner using a socket set, then install the new parts following the exact alignment marks.
• 🛠️ Clean gasket surfaces with plastic scrapers and install new gaskets and sealant according to the service manual, then reinstall the timing cover, crank pulley, engine mount, belts, and fluids.
• 🛠️ Many fasteners are torque-to-yield and require specific torque angles. Example (approximate, not exact): Torque to XX Nm (YY ft-lbs) plus 90°.

Step 3: Why This Is Not a Good First DIY Job

• 🛠️ It needs special locking tools to keep the engine timed correctly.
• 🛠️ You must know how to read timing marks and follow detailed torque procedures.
• 🛠️ Mistakes can cause the pistons to hit the valves, which usually means a very expensive repair or even a new engine.
• 🛠️ This is better left to an experienced mechanic.

Step 4: Safer Alternative – Serpentine Belt Replacement (Recommended for You)

• 🛠️ If your goal is to replace the visible belt on the front of the engine (cracked, squealing, or old), I can give you a clear, beginner-friendly step-by-step guide specific to your Equinox.
• 🛠️ This usually uses hand tools like a ratchet, sockets, and sometimes a serpentine belt tool, and can be done in about 1 hour.
• 🛠️ Reply and confirm: timing chain or serpentine belt?

---

✅ After Repair

• ✅ For a timing chain job done at a shop, they should road-test the vehicle, check for oil or coolant leaks, and verify there are no engine warning lights.
• ✅ If only the serpentine belt is replaced, you should start the engine, watch the belt while idling, and make sure it runs smoothly with no wobble or squeal.
• ✅ Recheck fluid levels (engine oil and coolant) after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost (Timing Chain Replacement): $1,200-$2,000 (parts + labor)

DIY Cost (Timing Chain Parts Only): $300-$600 (not including special tools)

You Save: $900-$1,400 if you had the skills, tools, and information to do it yourself—but the risk of engine damage is high for a first-time DIYer.

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
