🔧 Starter Motor - Not Equipped / Hybrid Starting System

Your hybrid does not use a conventional bolt-on starter motor like a gas-only Camry. Engine start is handled by the hybrid transaxle motor-generator system, so there is no separate starter motor to replace under the hood.

Difficulty Level: Advanced | Estimated Time: 0.5-1 hours

---

⚠️ Safety & Precautions

• High-voltage hybrid components can be dangerous. Do not open orange-cable systems.
• Disable the vehicle properly before any hybrid-system work. Battery disconnect alone is not enough for HV service.
• Wait the required time for capacitors to discharge before touching hybrid components.
• Use insulated tools and wear safety glasses and gloves.
• If the concern is a no-crank/no-start, the issue is more likely the 12V battery, hybrid battery, interlock, or starting control system.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Extension bar
• Trim panel tool
• Safety glasses
• Insulated gloves
• Digital multimeter
• OBD-II scan tool
• Floor jack (rated 3-ton minimum)
• Jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery - Qty: 1
• Hybrid system service plug cover clip - Qty: 1
• Starter relay - Qty: 1
• Starter fuse - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Shift to Park and power the vehicle completely off.
• Check the 12V battery first. A weak 12V battery can cause a no-start on a hybrid.
• If the hybrid warning lights are on, scan the vehicle before replacing parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the starting system type

• Verify that this model uses hybrid motor-generator starting, not a separate starter motor.
• If the concern is no-start, use an OBD-II scan tool to check for hybrid and 12V system codes.

Step 2: Test the 12V battery

• Use a digital multimeter at the 12V battery terminals.
• Low battery voltage can prevent the hybrid control computers from powering up.
• Low 12V voltage is very common.

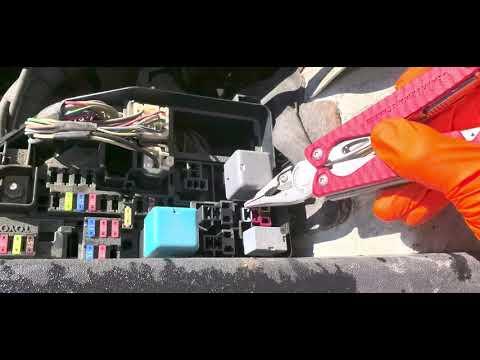

Step 3: Check starter relay and fuse

• Use the owner’s fuse layout and remove the starter-related fuse with a trim panel tool or your fingers if accessible.
• Inspect the relay and fuse for damage, heat marks, or corrosion.
• Replace any failed relay or fuse with the correct rated part.

Step 4: Inspect hybrid start conditions

• Confirm the vehicle recognizes Park, the brake pedal, and the key fob.
• If the car does not go to READY, the issue is in the hybrid start authorization path, not a starter motor.

Step 5: Replace the 12V battery if needed

• Use a 10mm socket and ratchet to disconnect the negative terminal first.
• Remove the hold-down, lift out the battery, and install the new one.
• Torque to 5.4 Nm (48 in-lbs) on small battery terminal hardware if removed.

---

✅ After Repair

• Clear any stored codes with the OBD-II scan tool.
• Start the vehicle and confirm it enters READY mode.
• Check for warning lights and re-scan if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$500 (diagnosis + battery/relay-related repair)

DIY Cost: $40-$220 (parts only)

You Save: $110-$280 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hours.

---
