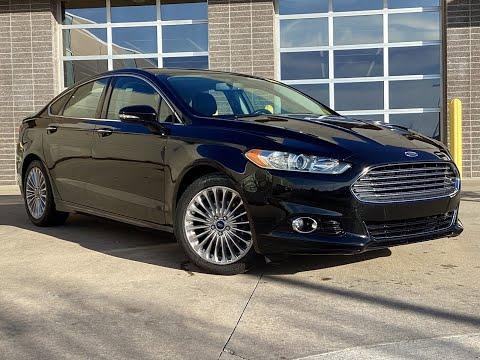

🔧 Fusion - Oxygen (O2) Sensor Replacement

Your Fusion uses oxygen sensors to help the engine computer control fuel mixture and monitor catalytic converter performance. Replacing a failed sensor can fix a check engine light, poor fuel economy, and drivability issues—if the fault code points to that specific sensor.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot—work on a fully cool exhaust.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep wires away from the exhaust; melted wiring will cause repeat faults.
• ⚠️ Disconnecting the battery is recommended to prevent accidental short circuits.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm wrench
• 3/8" drive ratchet
• 3/8" drive extension set
• 22mm oxygen sensor socket
• 22mm deep socket
• Torque wrench (10-100 Nm range)
• Trim clip remover
• Small flathead screwdriver
• Penetrating oil
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen (O2) sensor (Sensor 1) - Qty: 1
• Downstream oxygen (O2) sensor (Sensor 2) - Qty: 1
• Anti-seize compound (oxygen-sensor safe) - Qty: 1

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and install wheel chocks.
• Let the exhaust cool completely (at least 1 hour after driving).
• Disconnect the negative battery cable using an 8mm wrench and position it so it can’t spring back.
• Assumption: You’re replacing either Sensor 1 (upstream) or Sensor 2 (downstream) on the 2.5L.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the correct O2 sensor

• Sensor 1 (upstream) is before the catalytic converter (closer to the engine). It reacts quickly to fuel mixture changes.
• Sensor 2 (downstream) is after the catalytic converter (further back under the car). It monitors converter efficiency.
• Use a work light to trace the sensor wire to its connector so you don’t unplug the wrong one.

Step 2: Raise and safely support the car (mainly for Sensor 2)

• Lift the front of the car with a floor jack (rated 3-ton minimum) at the proper front jacking point.
• Set the car down onto jack stands (rated 3-ton minimum).
• Shake the car gently to confirm it is stable before going underneath.

Step 3: Unplug the sensor connector

• Find the sensor electrical connector and release the lock tab.
• If the lock is stubborn, use a small flathead screwdriver to gently lift the tab (do not break it).
• If a splash shield is in the way, remove clips/fasteners with a trim clip remover and 3/8" drive ratchet as needed.
• Tip: Pull on the connector, not the wires.

Step 4: Loosen and remove the O2 sensor

• Spray the sensor threads (where it screws into the exhaust) with penetrating oil and wait 5–10 minutes.
• Install a 22mm oxygen sensor socket over the sensor (this socket has a side slot for the wire).
• Use a 3/8" drive ratchet and 3/8" drive extension set to break it loose and remove it.
• If access is straight and the wire is already unplugged and free, you can use a 22mm deep socket instead.

Step 5: Prepare and install the new sensor

• Compare the new sensor to the old one (connector shape, wire length, sensor tip style).
• If the new sensor threads are not pre-coated, apply a light amount of anti-seize compound (oxygen-sensor safe) to the threads only.
• Start threading the sensor in by hand first to avoid cross-threading.
• Tighten using the 22mm oxygen sensor socket and a torque wrench: Torque to 35 Nm (26 ft-lbs).
• Tip: If it won’t start by hand, stop and realign.

Step 6: Route the harness and reconnect the connector

• Route the wire the same way as the original, using the same clips/holders.
• Keep the harness away from the exhaust pipe and sharp edges.
• Push the connector together until it clicks/locks.

Step 7: Reinstall shields and lower the car

• Reinstall any splash shields and clips using a trim clip remover and 3/8" drive ratchet.
• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower the car.

Step 8: Reconnect the battery

• Reconnect the negative battery terminal using an 8mm wrench.

---

✅ After Repair

• Start the engine and listen for any exhaust leaks near the sensor (a ticking sound can mean a leak).
• If the check engine light was on, clear codes with a scan tool after the repair (recommended). Then test drive 10–15 minutes.
• Recheck that the sensor wiring is not touching the exhaust after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $160-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
