🔧 Altima - Oxygen Sensor Replacement

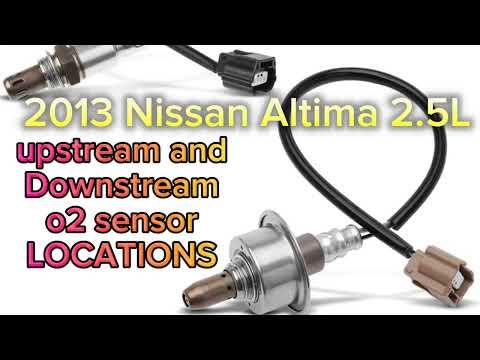

On your Altima, there are two common oxygen sensors: an upstream (front) sensor that controls fuel mixture, and a downstream (rear) sensor that monitors catalytic converter efficiency. The exact location, access method, and the correct tightening torque depend on which one you’re replacing.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot—work only on a fully cool exhaust.
• ⚠️ Support the car with jack stands on solid level ground—never rely on a jack.
• ⚠️ Do not pull on the wiring—disconnect the electrical connector before turning the sensor.
• ⚠️ If you unplug sensors near the radiator fans, keep hands clear—fans can start unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• Oxygen sensor socket 22mm (specialty)
• 3/8" drive extension set (3", 6")
• Penetrating oil
• Trim clip remover
• Flathead screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (front / Air-Fuel Ratio sensor) - Qty: 1
• Downstream oxygen sensor (rear) - Qty: 1
• Anti-seize compound (oxygen-sensor safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the exhaust cool completely (at least 1 hour after driving).
• Chock the rear wheels with wheel chocks.
• If replacing the rear sensor, raise the front of the car with a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which oxygen sensor you’re replacing

• Use a flashlight to locate the sensor.
• Upstream (front): mounted in the exhaust manifold area near the engine (closer to the radiator side of the engine bay).
• Downstream (rear): mounted in the exhaust pipe after the catalytic converter, accessed from underneath.
• Reply with one word so I can give you the exact path + tightening torque: UPSTREAM or DOWNSTREAM.

Step 2: Prep the sensor for removal (either sensor)

• Spray the sensor threads area with penetrating oil. Wait 5–10 minutes.
• Unclip any nearby harness retainers using a trim clip remover or flathead screwdriver.
• Disconnect the sensor electrical connector by hand (press the lock tab). Don’t twist the sensor with wires attached.

Step 3: Remove the oxygen sensor

• Fit the 22mm oxygen sensor socket (specialty) over the sensor.
• Use a 3/8" drive ratchet with a 3/8" drive extension (3" or 6") as needed.
• Turn counterclockwise to loosen and remove the sensor.

Step 4: Install the new oxygen sensor

• Thread the new sensor in by hand first to avoid cross-threading.
• If your new sensor does not come with pre-applied thread coating, apply a tiny amount of oxygen-sensor safe anti-seize compound to the threads only.
• Tighten with the 22mm oxygen sensor socket 22mm (specialty) and a 3/8" drive torque wrench.
• Torque spec depends on UPSTREAM vs DOWNSTREAM (and the sensor design). Reply with which one and I’ll give the correct Nissan tightening torque for your Altima.

Step 5: Reconnect and secure the harness

• Plug the connector in until it clicks.
• Reinstall any harness clips using a trim clip remover (to guide clips) and hand pressure to seat them.
• Make sure the harness is routed away from the exhaust.

---

✅ After Repair

• Start the engine and listen for exhaust leaks (ticking sound near the sensor area).
• If the check engine light was on, clear codes with a scan tool and confirm the code does not return.
• Test drive 10–15 minutes and recheck for warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$550 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $160-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.5 hours.

---
